Description
This 28-inch-wide upright freezer offers 23 cu.ft. of frost-free storage between -30 and -15°C for pharmacies, hospitals and labs. Stainless steel inside and out, it meets NSF-7 commercial standards and is compatible with automated dispensing systems such as Pyxis, Omnicell and AcuDose RX.
Key Features
- Frost-free operation, adjustable -30 to -15°C (preset -25°C)
- Stainless steel interior and exterior; NSF-7 compliant
- Microprocessor control with digital LED display
- Temperature, door-open and condenser-cleaning alarms
- Forced-air cooling with interior LED lighting
- Self-closing door that holds open at 90°, factory keyed lock

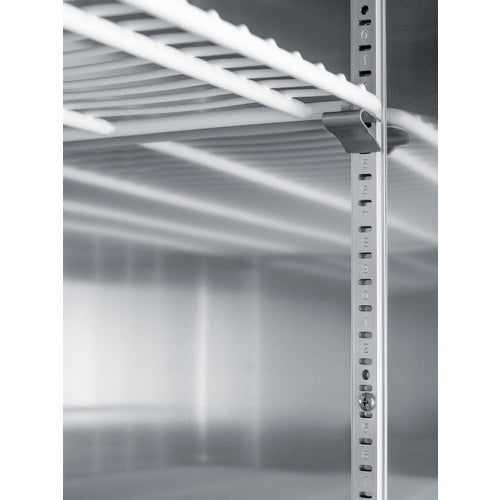

- 4 adjustable vinyl-coated wire shelves
- Commercial casters (2 locking); R290 hydrocarbon refrigerant
- Works with Pyxis, Omnicell and AcuDose RX systems
Specifications
| Capacity | 23.0 cu.ft. (651 L) |
| Exterior Dimensions (H x W x D) | 83.75" x 27.5" x 31" |
| Weight | 273 lb |
| Temperature Range | -30 to -15°C (preset -25°C) |
| Shelves | 4 adjustable wire shelves |
| Defrost | Frost-free, adjustable cycle |
| Power | 115V AC/60 Hz, 8.0 A |
| Certifications | UL, ULC, ETL-S; NSF-7 |
| Warranty | 2 years parts and labor; 5 years compressor |
Options
- Standard (AFS23ML): Standard freezer, right-hinged
- With Probe Hole (AFS23MLPHRIR, AFS23MLLHPHRIL): Factory-installed access port for user-supplied monitoring probe (special-order configuration)
- Door Hinge (LH suffix): Left-hinged door version (AFS23MLLH)
Documents
Recommended accessories


- 3.5" x 7.25" x 3.25" (H x W x D)


- 6.5" x 3.88" x 1.75" (H x W x D) device


- 4.25" x 5.0" x 1.75" (H x W x D)
