Description

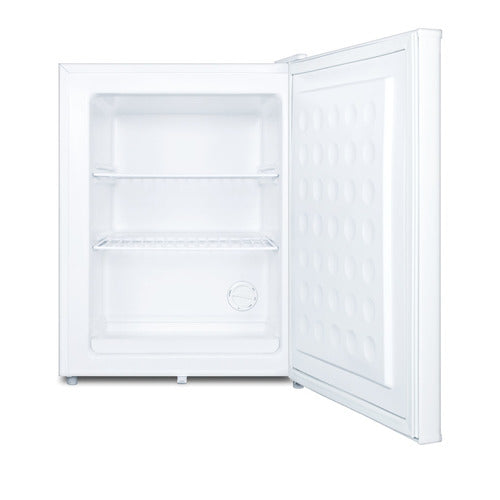

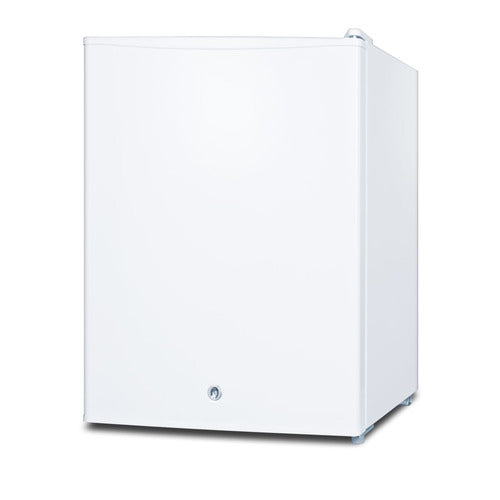

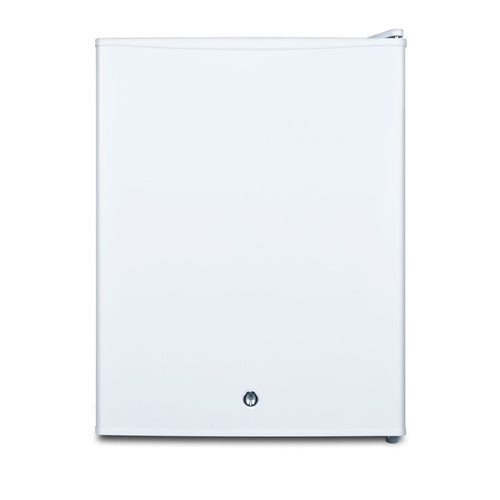

The FS30L series is a compact 18.5" wide manual-defrost all-freezer that holds about -20°C, suitable for medical offices, labs and general-purpose cold storage. Its fully finished cabinet works freestanding or on a counter, and every model has a factory-installed lock. Versions add a NIST calibrated thermometer, alarm, digital controls and hospital-grade cord.
Key Features
- Average operating temperature around -20°C (MED2: -20°C to -15°C)
- Manual defrost with static cooling; one-piece interior liner
- Factory-installed keyed lock on all models
- Reversible door; fully finished cabinet for freestanding use
- Two removable wire shelves
- Quiet operation; CFC-free R600a refrigerant
Specifications
| Capacity | 1.8 cu.ft. (51 L) |
| Exterior Dimensions (H x W x D) | 24.63" x 18.5" x 17.75" |
| Temperature Range | Approx. -20°C (MED2: -20°C to -15°C) |
| Shelves | 2 removable wire shelves |
| Defrost | Manual |
| Power | 115V AC/60Hz, 0.8 A; hospital-grade cord on MED/MED2 |
| Weight | 43 lbs |
| Certifications | ETL, ETL-C, CARB compliant |
| Warranty | 1 year parts and labor; 5 years compressor |
Options
- Standard (FS30L): general-purpose model with dial thermostat and lock

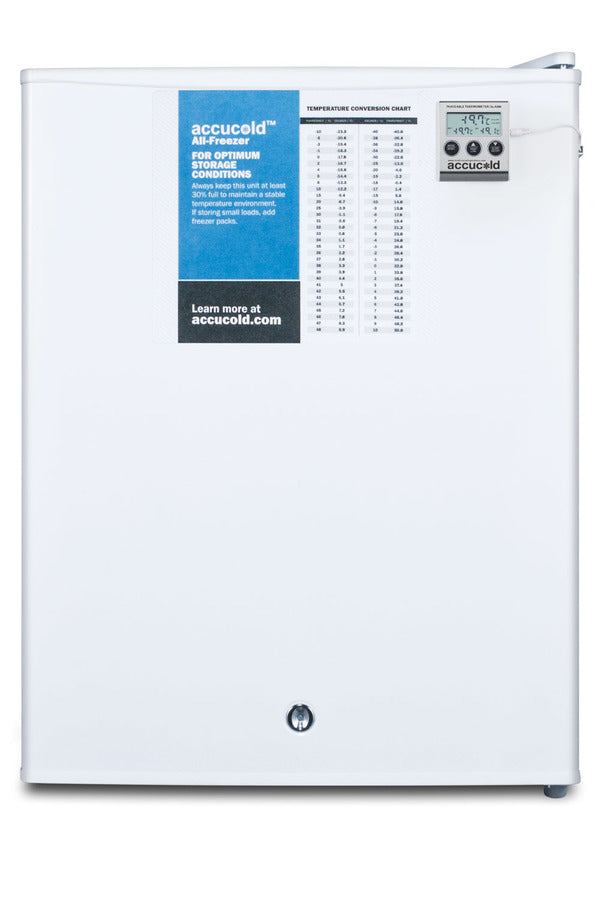

- MED (alarm, hospital-grade cord) (FS30LMED): adds NIST calibrated high/low temperature alarm with display and hospital-grade green-dot cord

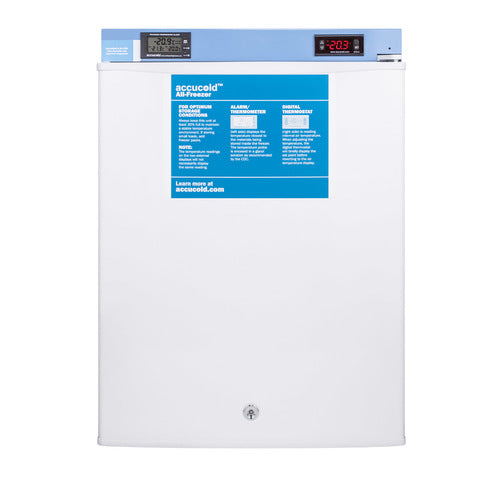

- MED2 (NIST calibrated alarm, digital controls) (FS30LMED2): digital thermostat with external controls, NIST calibrated thermometer/alarm (current, min, max), glycol-buffered probe and hospital-grade cord
- PLUS2 (NIST calibrated thermometer) (FS30LPLUS2): adds NIST calibrated thermometer with current and high/low readout and glycol-buffered probe
Documents
Recommended accessories


- 3.5" x 7.25" x 3.25" (H x W x D)


- 6.5" x 3.88" x 1.75" (H x W x D) device


- 4.25" x 5.0" x 1.75" (H x W x D)
