Description
The ADA305AF is a 20-inch-wide, front-breathing all-freezer sized to slide under lower ADA-height counters. It reaches -25°C for frozen vaccine and pharmaceutical storage, with pull-out drawers that keep inventory organized. Several door and handle finishes are available, including panel-ready and antimicrobial copper-handle versions.
Key Features
- Operates from -25 to -15°C for frozen vaccines and medications
- 32" tall ADA-compliant cabinet, front-breathing for built-in installation
- Digital thermostat with °F/°C readout and user-set high/low temperature alarms
- Open-door alarm and factory-installed keyed lock (2 keys)

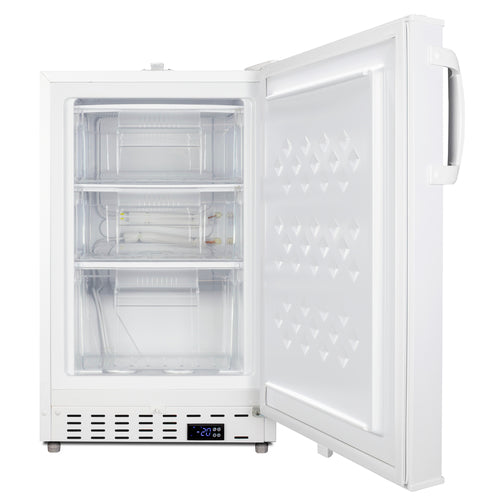

- 3 removable pull-out drawers on fixed wire shelves
- 3" thick insulated, reversible door with flat liner per CDC guidance
- Access port for independent monitoring probes
- Hospital-grade cord with green-dot plug; CFC-free, CARB compliant
Specifications
| Capacity | 2.47 cu.ft. (70 L) |
| Exterior Dimensions (H x W x D) | 32" x 19.75" x 22.5" (white); 32" x 20.88" x 22.5" (stainless HV handle); 32" x 20.25" x 23" (panel-ready) |
| Weight | 65 lb |
| Temperature Range | -25 to -15°C |
| Storage | 3 pull-out drawers |
| Defrost | Manual |
| Power | 115V AC/60 Hz, 1.1 A; hospital-grade cord |
| Certifications | ETL, ETL-C; CARB compliant |
| Warranty | 1 year parts and labor; 5 years compressor |
Options

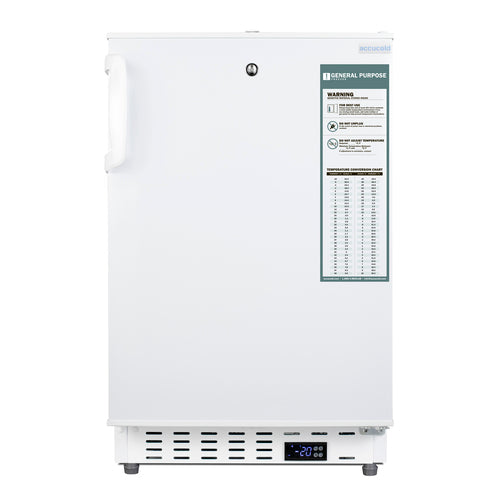

- White (ADA305AF): White cabinet and door

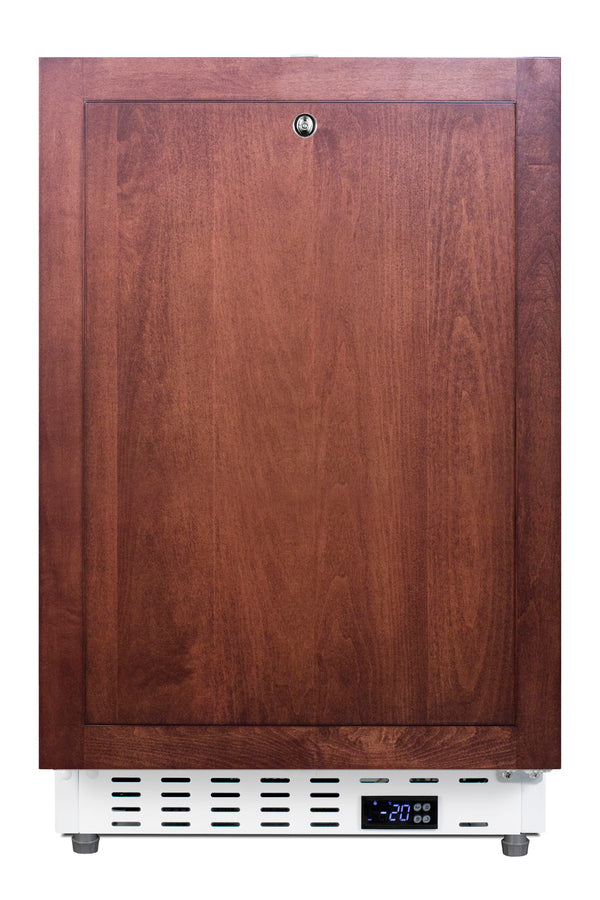

- Panel-Ready (ADA305AFIF): Integrated stainless door frame accepts a custom 19-13/16" W x 27-1/8" H overlay panel (panel not included)

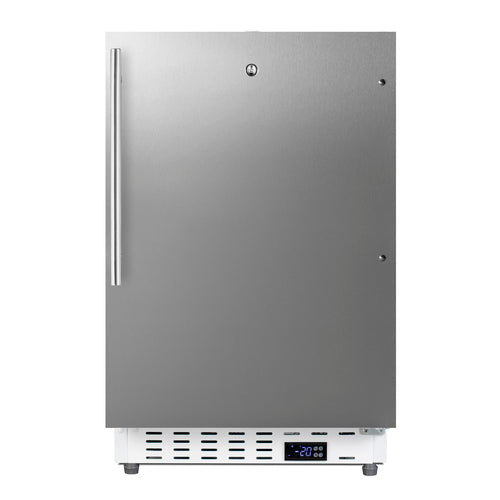

- Stainless Steel (ADA305AFSSHV): Stainless-wrapped door with vertical professional stainless handle, white cabinet

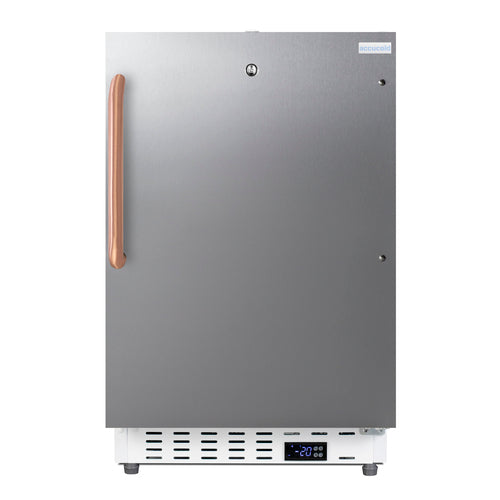

- Stainless Steel with Copper Handle (ADA305AFSSTBC): Stainless door with antimicrobial pure copper towel-bar handle

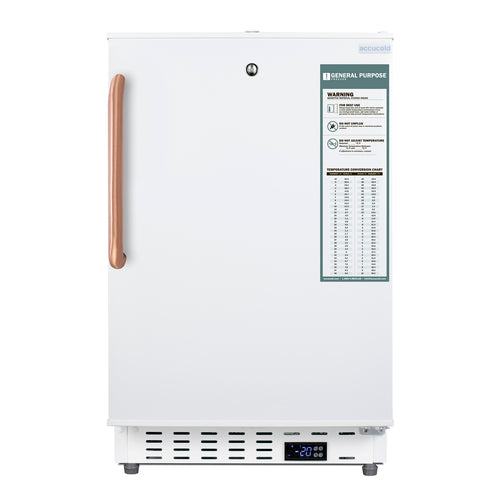

- White with Copper Handle (ADA305AFTBC): White door with antimicrobial pure copper towel-bar handle
- Door Hinge (LHD suffix): Left-hinged door version
Documents
Recommended accessories


- 3.5" x 7.25" x 3.25" (H x W x D)


- 6.5" x 3.88" x 1.75" (H x W x D) device


- 4.25" x 5.0" x 1.75" (H x W x D)
