Description
Overview

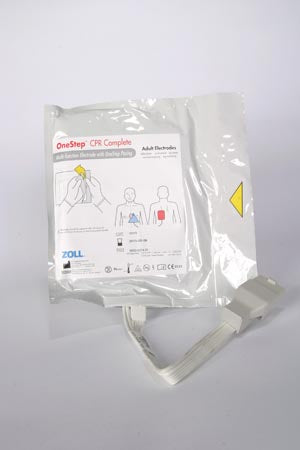

ZOLL OneStep Complete resuscitation electrodes for adult patients, combining all OneStep Basic, Pacing and CPR capabilities for the ZOLL R Series defibrillator. Integrated ECG electrodes allow pacing without a separate 3-lead ECG cable.
Key Features
- Multi-function electrode for defibrillation, ECG monitoring, cardioversion and noninvasive pacing
- Patented dual-circuit design lets the electrodes stay connected to the defibrillator during the 30-joule shock test, so they do not need to be disconnected to test the unit
- Integrated ECG electrodes allow pacing without a separate 3-lead ECG cable
- Built-in CPR sensor supports Real CPR Help and See-Thru CPR
- Connects directly to the R Series for all capabilities
Configuration and Package Contents
- Case of 8 adult electrodes, case part number 8900-0214-01
- Single electrode part number: 8900-0224-01
- Shelf life: 2 years
Technical Specifications
| Part number (case) | 8900-0214-01 |
| Single electrode part number | 8900-0224-01 |
| Quantity | 8 per case |
| Patient | Adult |
| Shelf life | 2 years |
Compatibility and Accessories
- ZOLL R Series defibrillators only
- ZOLL R Series ALS Defibrillator with OneStep Pacing
- ZOLL OneStep CPR AA electrodes (8900-0217-01)
- ZOLL OneStep CPR AP electrodes (8900-0213-01)
- ZOLL OneStep Pediatric CPR electrodes
Documents and Warranty
Compare Models
| Listing | Patient | Placement / capability | Defibrillators |
| OneStep CPR AA (8900-0217-01) | Adult | Anterior-anterior; CPR feedback | R, X, M Series |
| OneStep CPR AP (8900-0213-01) | Adult | Anterior-posterior; CPR feedback | R, X, M Series |
| OneStep Complete (8900-0214-01) | Adult | CPR feedback plus pacing with integrated ECG electrodes | R Series |
| OneStep Pediatric CPR (8900-000220-01) | 0–8 years, under 55 lb (25 kg) | CPR feedback | R, X, M Series |
Genuine ZOLL product, sold by The Hospital Equipment Company.
