Description

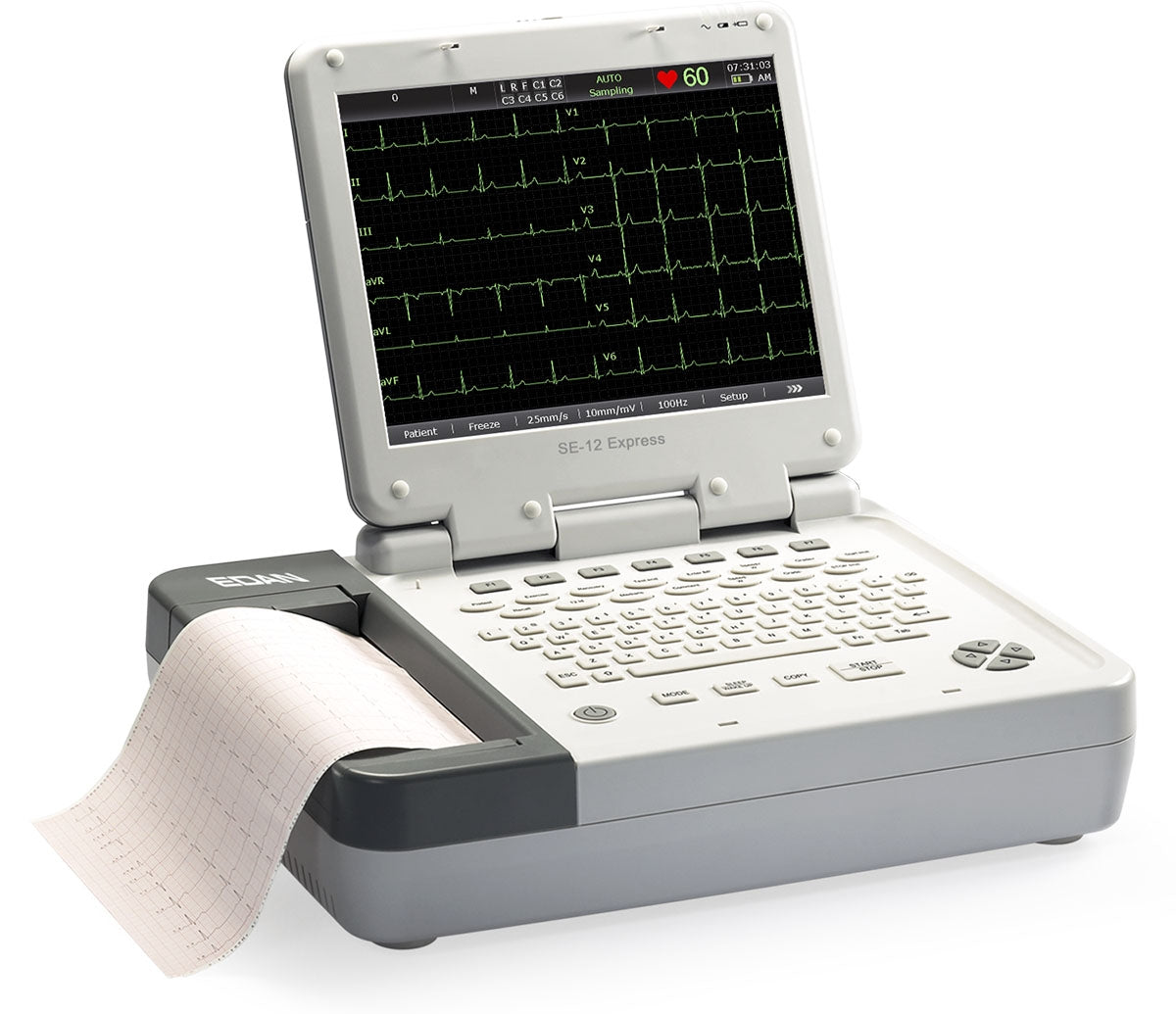

The Edan SE-12 Express Stress Upgrade Kit (02.04.107453) adds exercise stress ECG capability to an Edan SE-12 Express resting electrocardiograph. Stress testing is an optional, upgradable feature of the SE-12 Express, and this kit supplies the software activation and the stress-specific cabling needed to run treadmill or ergometer stress tests.
Key Features (SE-12 Express Stress Option)
- Treadmill or ergometer testing: Compatible with reputable treadmills and bicycle ergometers.
- Protocols: Bruce and Modified Bruce, plus customized exercise protocols.
- Exercise blood pressure: Supports an exercise blood pressure monitor during testing.
- Display formats: 3×1, 3×4+1R, 6×2 or 12×1.
Specifications / Compatibility
- Compatible ECG: Edan SE-12 Express
- Supported treadmills: TM400, Trackmaster, T2000, LODE, Runner, CardioMed
- Supported ergometers: Ergoline, Ergosana, LODE
- Supported BP monitor: SunTech Tango M2
- Speed units: mph or km/h
- Post J setting: 0, 20, 40, 60 or 80 ms
What's Included
- 1 × USB sentinel or client code (stress ECG software upgrade)
- 1 × USB connection / BNC external ECG trigger cable (for stress test)
- 1 × Belt (1.6 m)
- 1 × ECG cable (snap style, AHA)
Treadmill, ergometer and blood pressure monitor are not included.
Related Part Numbers
- 01.13.107242 – RS232 connection cable for treadmill (SE-12 Express)
- 01.13.111313-11 – RS232 connection cable for bicycle (SE-12 Express)
- 01.13.109846 – RS232 cable for blood pressure monitor
- 01.57.109851 – Stress ECG cable, snap style, AHA (SE-12 Express)
- 01.57.106750 – Stress test belt (1.4 m)
Genuine Edan product, sold by The Hospital Equipment Company.
