Description
Ships directly from Burton. Request current lead time and applicable contract pricing.

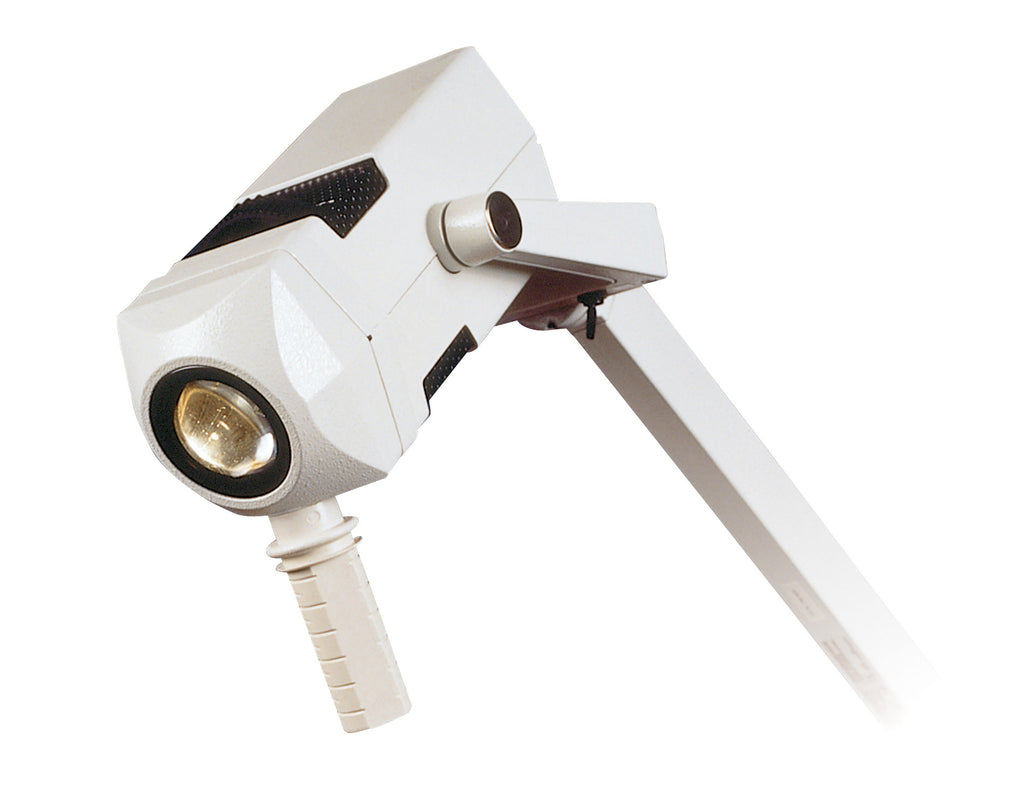

CoolSpot II is a 150 W halogen spot-style exam light producing 60,000 lux at 1 meter at 4300 K (CRI 94), with a bi-level dimmer and variable spot size of 2-10 in. It is sold as a floor stand, wall, single or double ceiling light, or on a Fastrac ceiling track. The combination model pairs one Outpatient II head (86,000 lux at 24 in, 3300 K) with one CoolSpot II head on a ceiling or Fastrac mount.
Features
- 60,000 lux at 1 m, 4300 K, CRI 94 (CoolSpot II head)
- Bi-level dimmer; variable spot size 2-10 in (5-25 cm)
- Guaranteed no-drift arm
- 150 W halogen bulb, 600-hour average life on standard setting (bulb 0007006PK)
- Combo: Outpatient II head 86,000 lux at 24 in, 3300 K, CRI 94, 3 x 50 W halogen, 2,000 h bulb life, autoclavable SteriHandle
- 5-year limited warranty
Models
| Option | Item # |

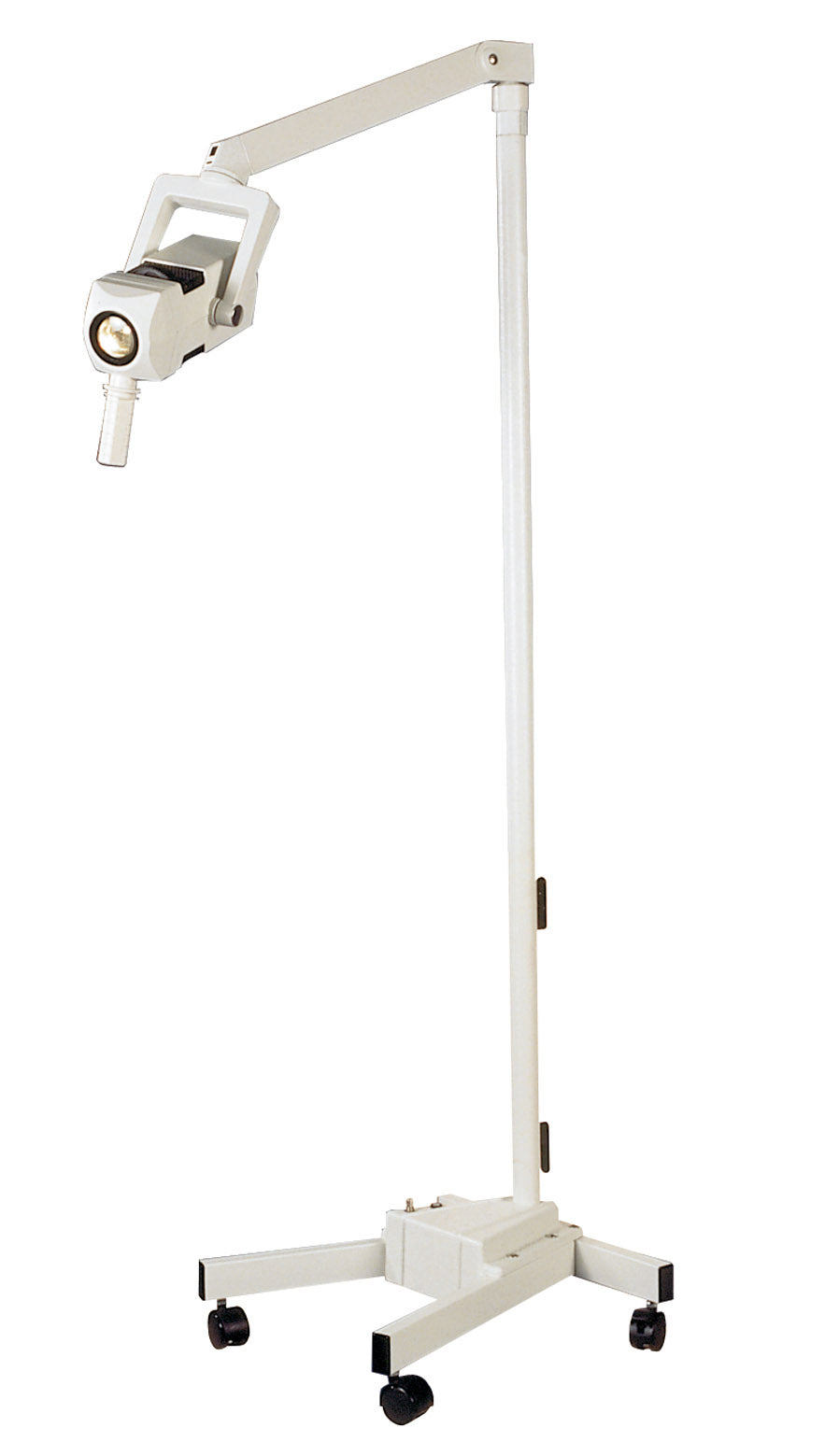

| Floor stand (CS316FL) | CS316FL |

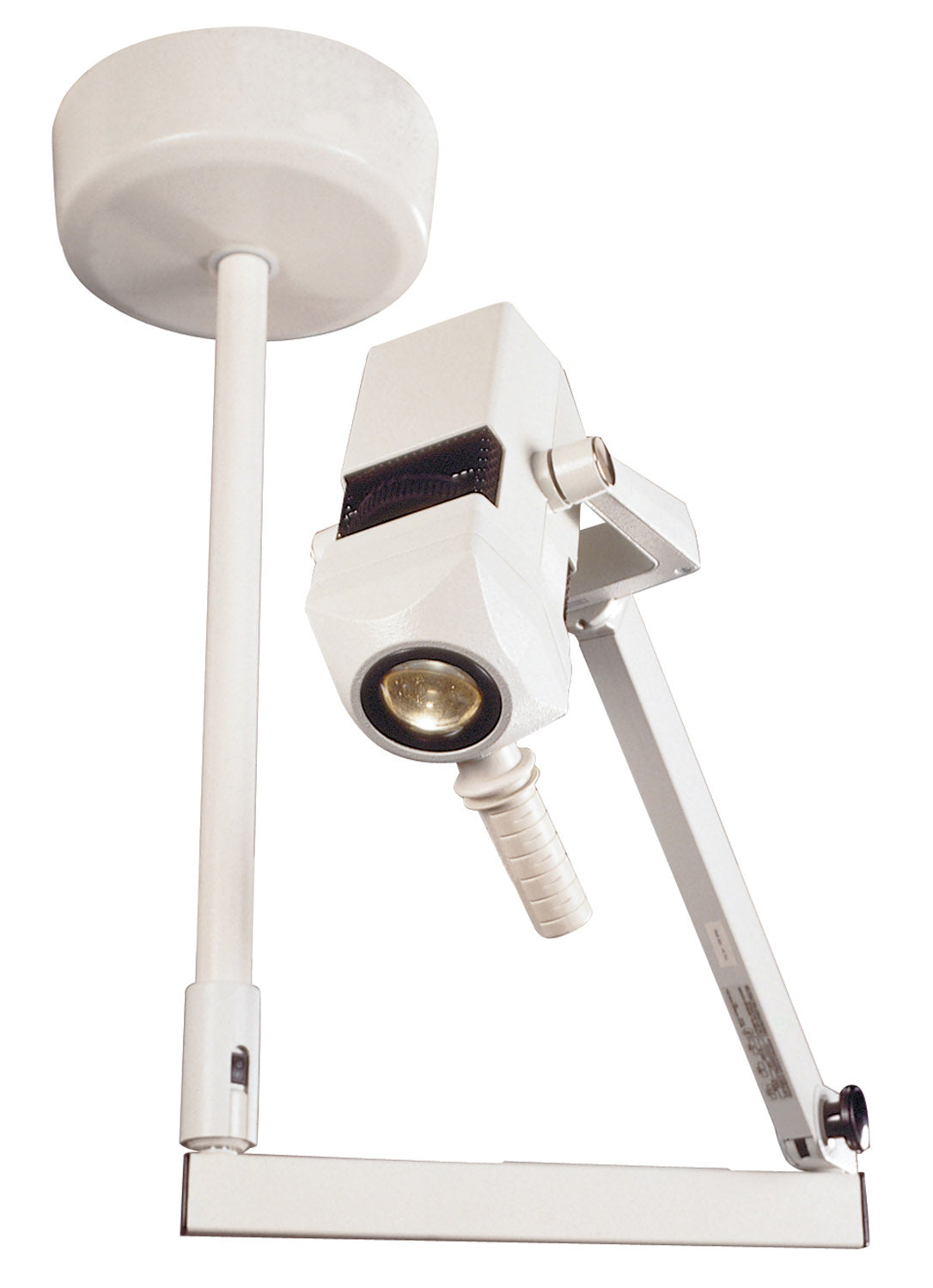

| Single ceiling (CS316SC) | CS316SC |

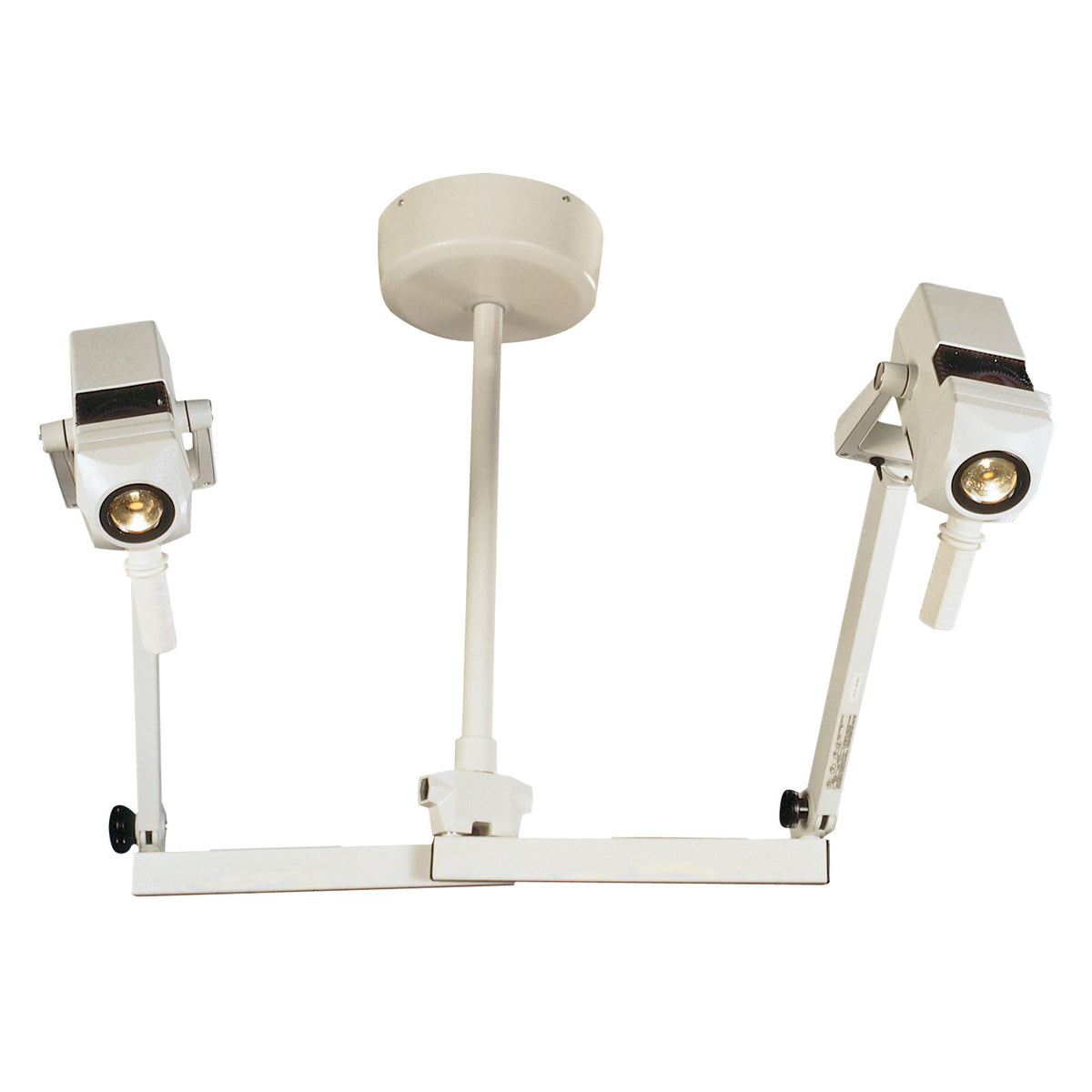

| Double ceiling (CS316DC) | CS316DC |

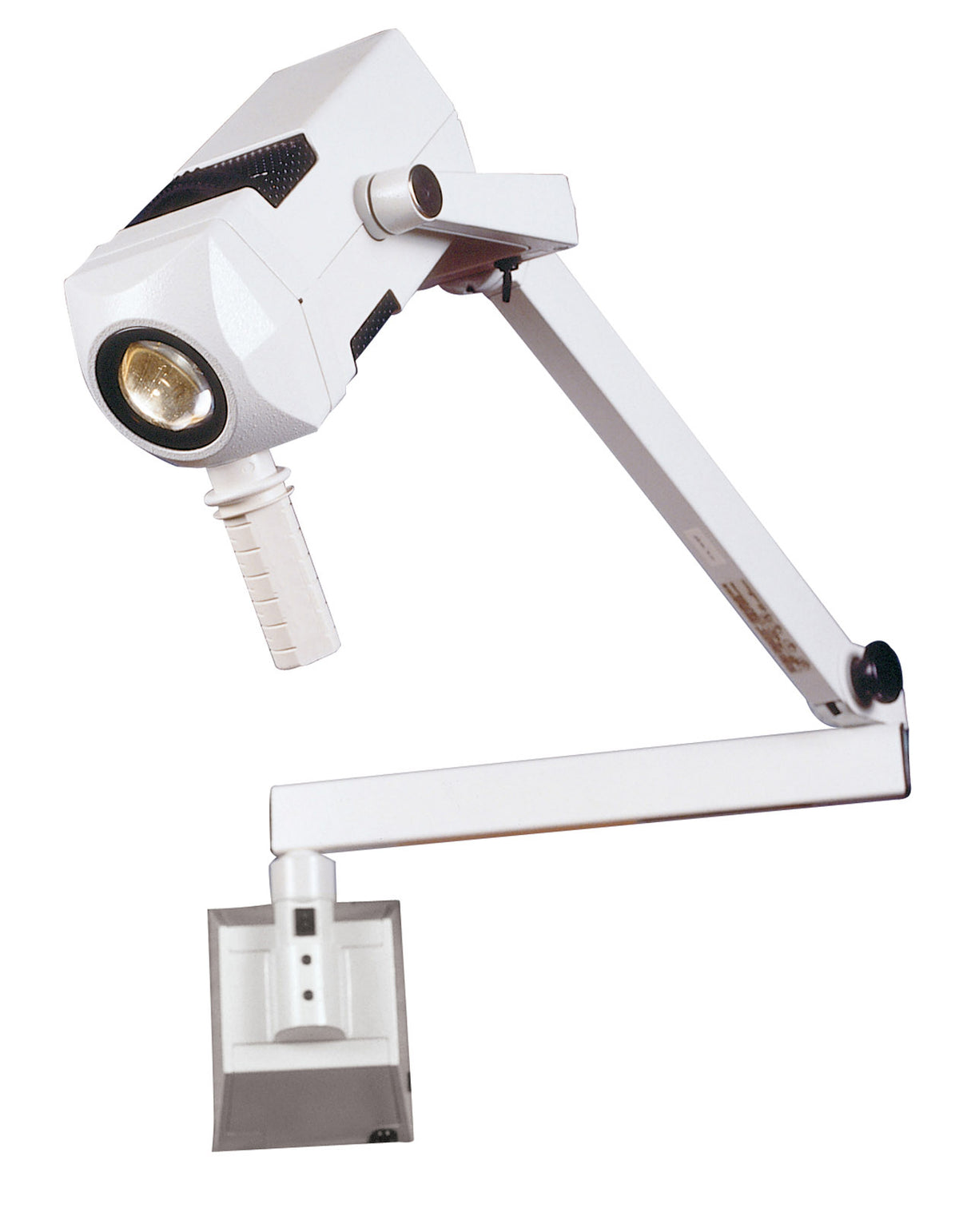

| Wall mount (CS316W) | CS316W |

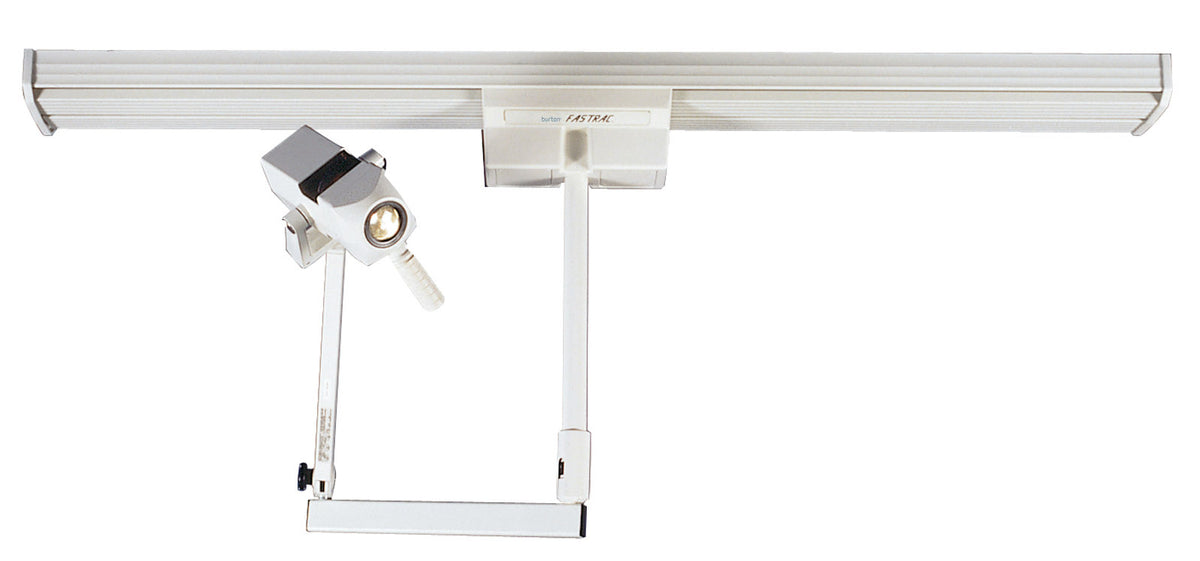

| Single Fastrac (1 head, 1 trolley) (CS316ST) | CS316ST |

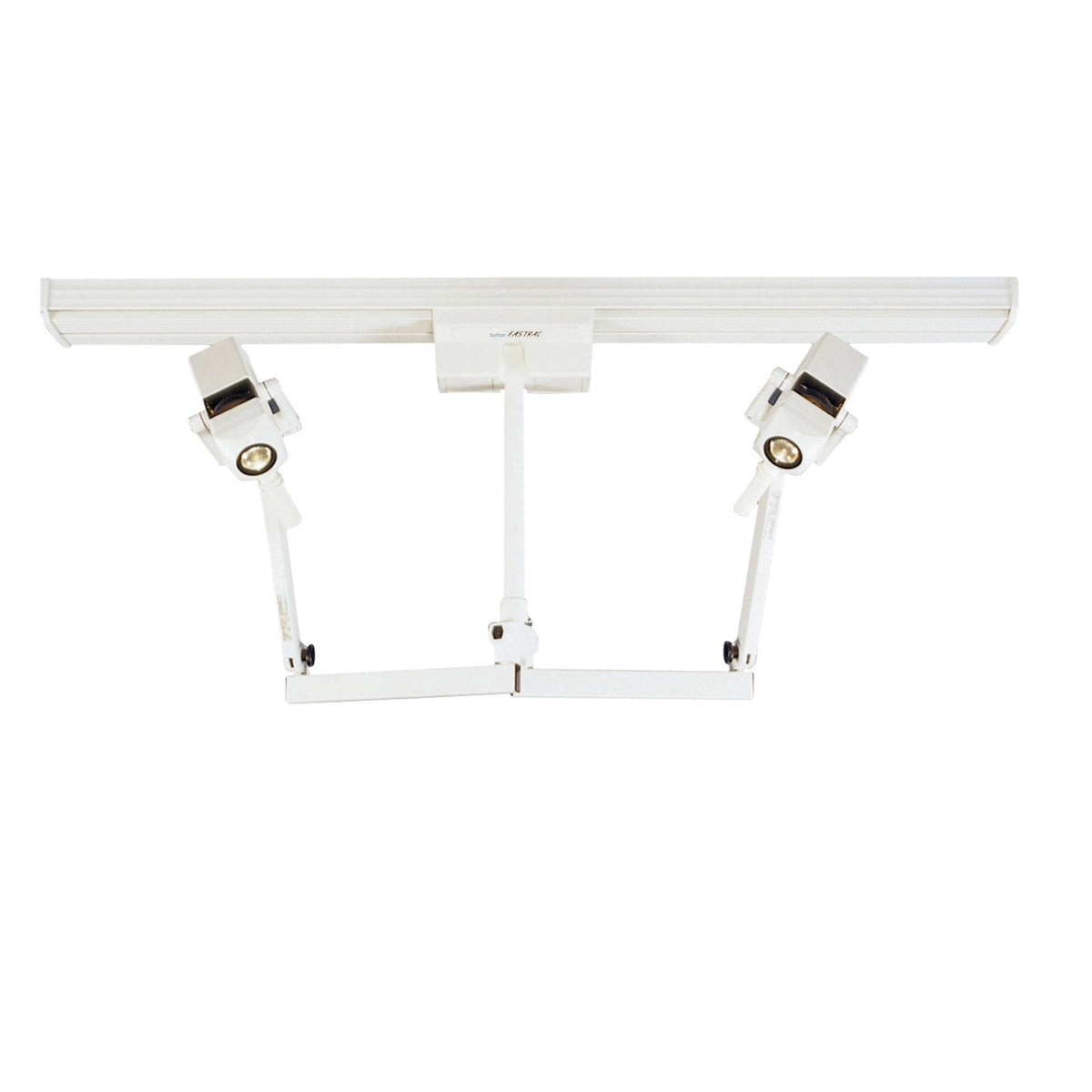

| Double Fastrac (2 heads, 1 trolley) (CS316DT) | CS316DT |

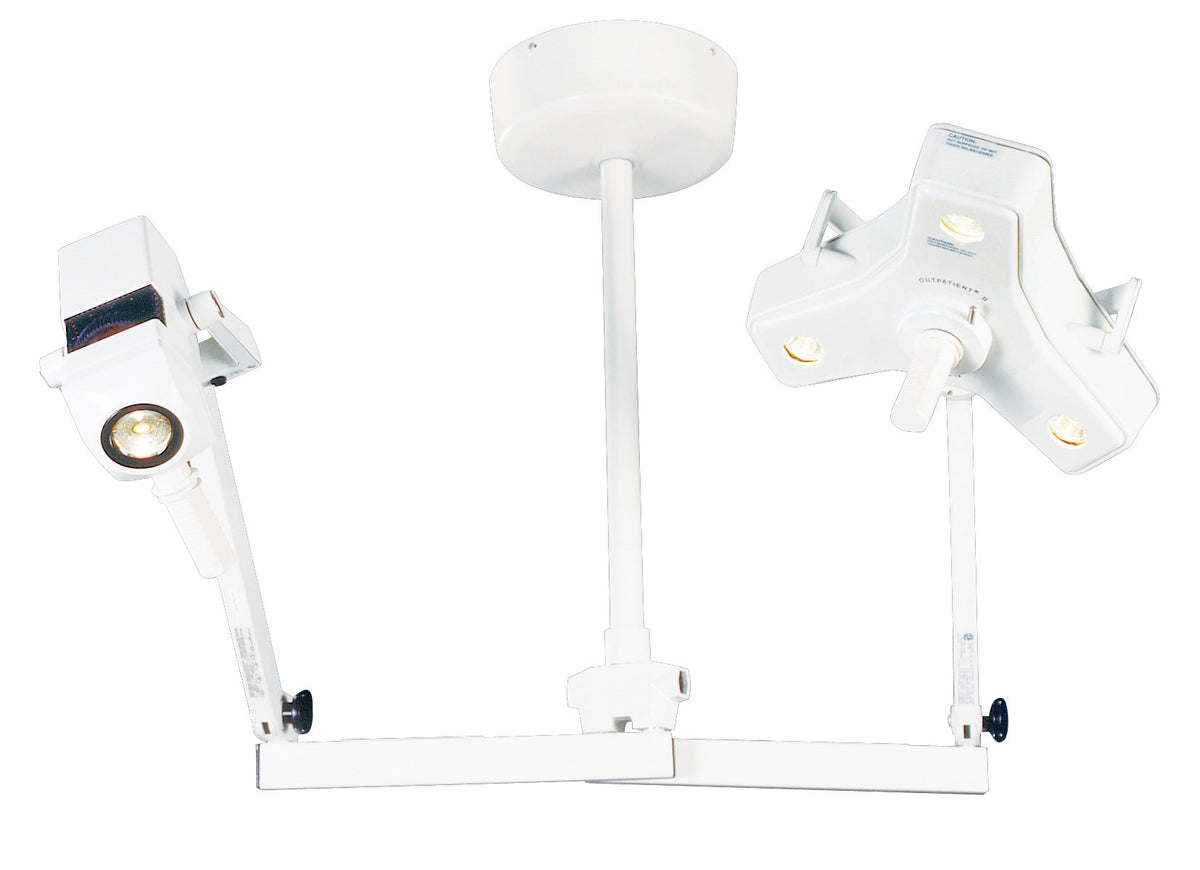

| Combo OP II + CoolSpot II / Ceiling (OC516CC) | OC516CC |
| Combo OP II + CoolSpot II / Fastrac (OC516CT) | OC516CT |
Specifications
| Illuminance | CoolSpot II 60,000 lux at 1 m; Outpatient II (combo) 86,000 lux at 24 in |
| Color temperature | CoolSpot II 4300 K; Outpatient II 3300 K |
| CRI | 94 (both heads) |
| Light source | Halogen: CoolSpot II 150 W (21 V bulb, 0007006PK), 600 h avg; Outpatient II 50 W (12 V bulbs, 0006130PK), 2,000 h avg |
| Spot size | 2-10 in (5-25 cm) |
| Arm reach | 37.5 in (floor stand) |
| Power | 120 V models (CS316 / OC516); 100 V and 230/240 V versions exist |
| Fastrac | 6 ft track, for 8 to 10 ft ceilings |
| Drop tubes | Standard 30-31 in (1009976); 42 in (1008259); special up to 58 in (1008060) |
| Warranty | 5-year limited (bulbs/handles excluded per policy) |
| Accessories | 0007006PK bulbs; 1008466B handle; 1008465 OP II handle; 0008100PK sterile covers; 1008259 42 in drop tube; 1008060 special drop tube; 5000884 ceiling plate |
| Manufacturer | Burton Medical |
Included and sold separately
| Details | |
| Included | Complete light as configured: light head(s), arm(s) and ceiling, wall, floor or Fastrac track mount. |
| Ceiling height | For taller ceilings use the 42 in drop tube (1008259) or the special-length drop tube up to 58 in (1008060). Fastrac models fit 8 to 10 ft ceilings. |
| Sold separately | Ceiling structural plate (5000884) if your ceiling needs one; sterile handle covers (0008100PK), replacement halogen bulbs; wall switch |
| Installation | Not included. Ceiling and wall models are hard-wired: a licensed electrical contractor makes the connection, and a wall switch (not included) must be supplied and installed by the facility. The ceiling must provide structural support for the light, designed by the building's engineer or contractor. |
Not sure which ceiling version you need? Send us your floor-to-ceiling height and we will confirm the model, down tube and parts before you order.
Resources
- CoolSpot II literature (LIT-33 Rev 01)
- Outpatient II / CoolSpot II Combo literature (LIT-35 Rev 02)
- Burton CoolSpot® II halogen exam light (and Outpatient® II / CoolSpot® II Combination Model) page
Shipping: Ships direct from Burton Medical in Addison, IL (FOB factory). Shipping is calculated at checkout; items over 100 lb ship by LTL freight. Contact us for freight to Alaska, Hawaii or outside the contiguous US.
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
