Description
Overview

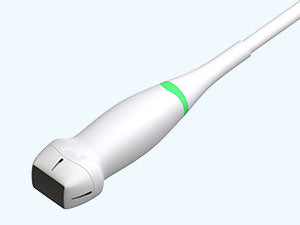

The Edan P5-1Q is a 64-element phased array transducer for Edan Acclarix AX2, AX3 and LX9 ultrasound systems. It is used for adult and pediatric cardiac, abdominal and adult cephalic imaging. Its 16 mm footprint and display depth up to 30 cm let one probe cover both cardiac and abdominal exams.
Key Features
- 1-5 MHz bandwidth with display depth up to 30 cm for deep cardiac and abdominal views
- Small 16 mm footprint for cardiac windows
- Covers adult cardiac, pediatric cardiac, abdominal and adult cephalic applications with one probe
Configuration and Package Contents
- One Edan P5-1Q phased array transducer
- Ultrasound system sold separately
Technical Specifications
| Model | P5-1Q |
| Type | Phased array |
| Elements | 64 |
| Footprint | 0.63 in (16 mm) |
| Bandwidth | 1-5 MHz (-6 dB); 1-4.5 MHz (-20 dB) |
| Display depth | Up to 11.8 in (30 cm) |
| Applications | Adult cardiac, pediatric cardiac, abdomen, adult cephalic |
Compatibility and Accessories
- Edan Acclarix AX2, AX3 and LX9 ultrasound systems
- Edan Acclarix AX3 diagnostic ultrasound system (main unit)
- Edan C5-2Q convex array transducer for Acclarix AX2 / AX3
- Edan L12-5Q linear array transducer for Acclarix AX series
- Edan E8-4Q endocavity transducer for Acclarix AX2 / AX3
Documents and Warranty
Compare Models
| Model | Type |
| P5-1Q | Phased array, 1-5 MHz |
| C5-2Q | Convex array, 2-5 MHz |
| L12-5Q | Linear array |
| E8-4Q | Endocavity |
| C6-2MQ | Mechanical 3D convex |
Genuine Edan product, sold by The Hospital Equipment Company.
