Description
Overview

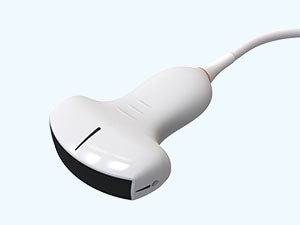

Edan C5-2Q is a convex (curved linear) array transducer for Edan Acclarix AX2, AX3, AX8-N and LX9 ultrasound systems. It is used for abdominal, OB, gynecology, urology and MSK imaging.
Key Features
- 128-element convex array with 2-5 MHz (-6 dB) bandwidth for general abdominal and OB depth
- Covers abdomen, fetal/OB, gynecology, urology and MSK from one probe
- Supports biopsy guidance with the BGK-C5-2 needle guide bracket
- Fits AX2, AX3, AX8-N and LX9 systems
Configuration and Package Contents
- 1 Edan C5-2Q transducer
- Needle guide bracket BGK-C5-2 (02.01.211006) sold separately
- Ultrasound system sold separately
Technical Specifications
| Model | C5-2Q |
| Type | Convex (curved linear) array |
| Elements | 128 |
| Bandwidth | 2-5 MHz (-6 dB); 1.5-6.5 MHz (-20 dB) |
| Applications | Abdomen, Fetal/OB, gynecology, urology, MSK |
| Biopsy guide | Supported; needle guide bracket BGK-C5-2 (02.01.211006) sold separately |
Compatibility and Accessories
- Edan Acclarix AX2, AX3, AX8-N and LX9 ultrasound systems
- System: Edan Acclarix AX3 ultrasound system (main unit)
- Other AX3 transducers: C6-2MQ mechanical 3D convex, E8-4Q endocavity, P5-1Q phased array
Documents and Warranty
Compare Models
| Model | Type | Applications |
| C5-2Q | Convex (curved linear) array | Abdomen, fetal/OB, gynecology, urology, MSK |
| C6-2MQ | Mechanical 3D convex array | Abdomen, OB, gynecology, urology |
| E8-4Q | Endocavity array | Fetal/OB, gynecology, transvaginal, transrectal, urology |
| P5-1Q | Phased array | Contact us to confirm |
| L12-5Q | Linear array | Contact us to confirm |
Genuine Edan product, sold by The Hospital Equipment Company.
