Description
Overview

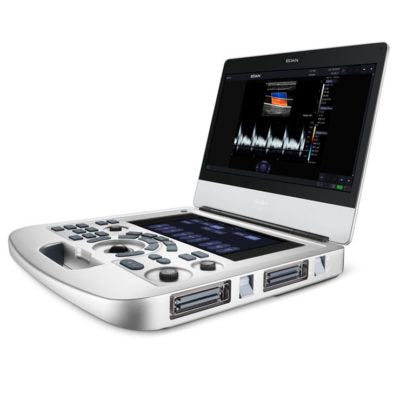

Edan Acclarix AX3 is a compact color Doppler ultrasound system with two transducer ports, for point-of-care imaging. This listing is the main unit only; transducers are sold separately.
Key Features
- 15.6" full-HD LCD monitor plus 10.1" touch screen with gesture control for quick operation at the bedside
- B, M, Color, Power/Directional Power Doppler, PW and CW Doppler, with duplex and triplex modes
- Tissue Adaptive Imaging (TAI), eSRI, compounding, harmonic imaging and B-mode auto optimization to improve image quality with less manual adjustment
- 38 exam presets including OB, thyroid, carotid, lung, FAST and TCD
- DICOM 3.0 storage and modality worklist over Ethernet or Wi-Fi
Configuration and Package Contents
- Acclarix AX3 main unit
- Rechargeable lithium-ion battery
- AC-DC adapter and US power cord
- Ultrasound gel (250 g)
- Acclarix AX2/AX3 basic and advanced user manuals
- Transducer NOT included - at least one probe must be purchased separately
Technical Specifications
| Displays | 15.6" full-HD LCD; 10.1" touch screen |
| Transducer ports | 2 |
| Imaging modes | B, M, Color, Power/Directional Power Doppler, PW, CW; duplex and triplex |
| Applications | Abdomen, OB, gynecology, urology, MSK, transvaginal, transrectal, small parts, peripheral vascular, adult/pediatric cardiac, adult cephalic (transducer dependent) |
| Storage | 120 GB SSD; DICOM, raw data and BMP export |
| Ports | USB 3.0, HDMI, S-Video |
| Networking | DICOM 3.0, modality worklist; Ethernet and Wi-Fi |
| Battery | Removable Li-ion, up to two batteries |
| Dimensions | 14.8 x 15.0 x 2.3 in (375 x 380 x 58 mm) |
| Weight | 9.3 lb (4.2 kg) without battery |
| Boot time | About 30 s (wake from sleep about 5 s) |
Compatibility and Accessories
- Edan Acclarix transducers we carry: C5-2Q convex array transducer, C6-2MQ mechanical 3D convex transducer, P5-1Q phased array transducer, E8-4Q endocavity transducer, L12-5Q linear array transducer
- Optional: MT-818 height-adjustable trolley, triple transducer connector (83.63.560232), Sony UP-X898MD printer
Documents and Warranty
- Edan Acclarix AX2/AX3 product page
- Edan Acclarix AX2/AX3 data sheet (PDF)
- Edan Acclarix AX2/AX3 brochure (PDF)
- 2-year manufacturer warranty on the main unit
Compare Models
| Model | Type | Applications |
| C5-2Q | Convex (curved linear) array | Abdomen, fetal/OB, gynecology, urology, MSK |
| C6-2MQ | Mechanical 3D convex array | Abdomen, OB, gynecology, urology |
| E8-4Q | Endocavity array | Fetal/OB, gynecology, transvaginal, transrectal, urology |
| P5-1Q | Phased array | Contact us to confirm |
| L12-5Q | Linear array | Contact us to confirm |
Genuine Edan product, sold by The Hospital Equipment Company.
