Description

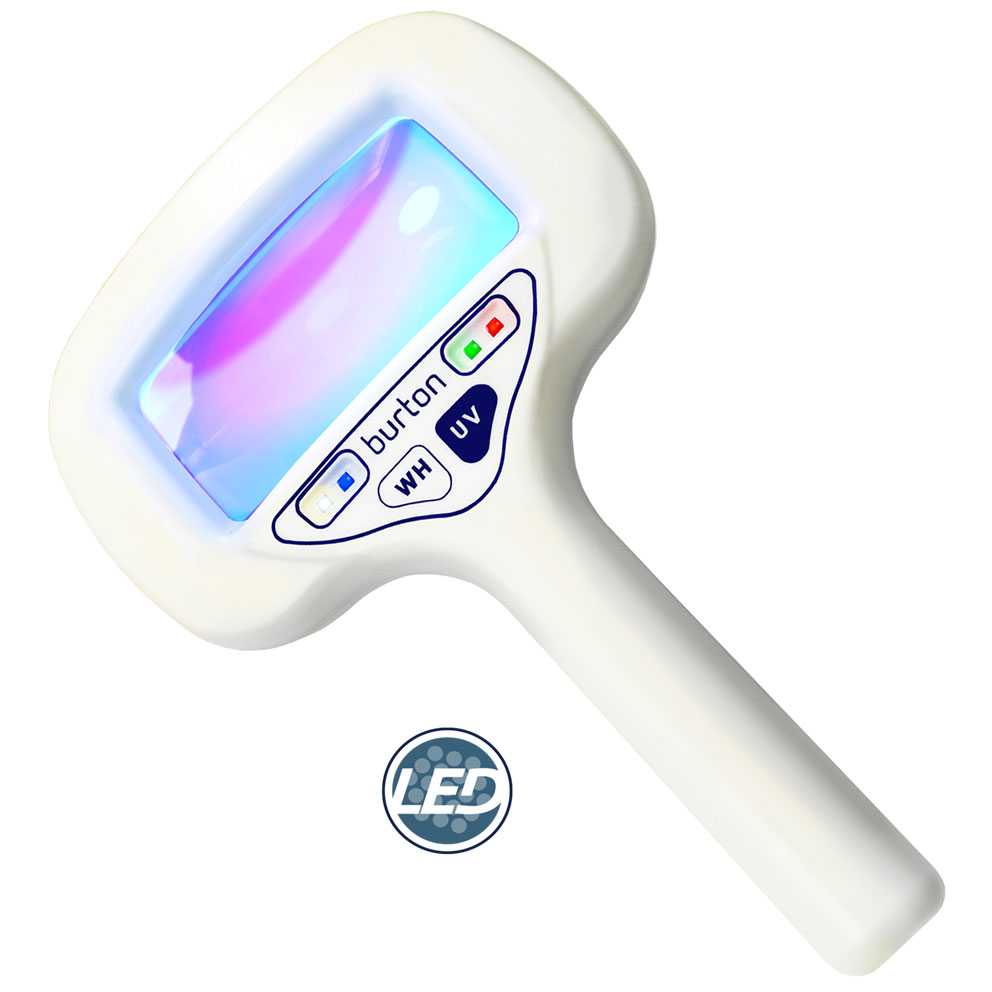

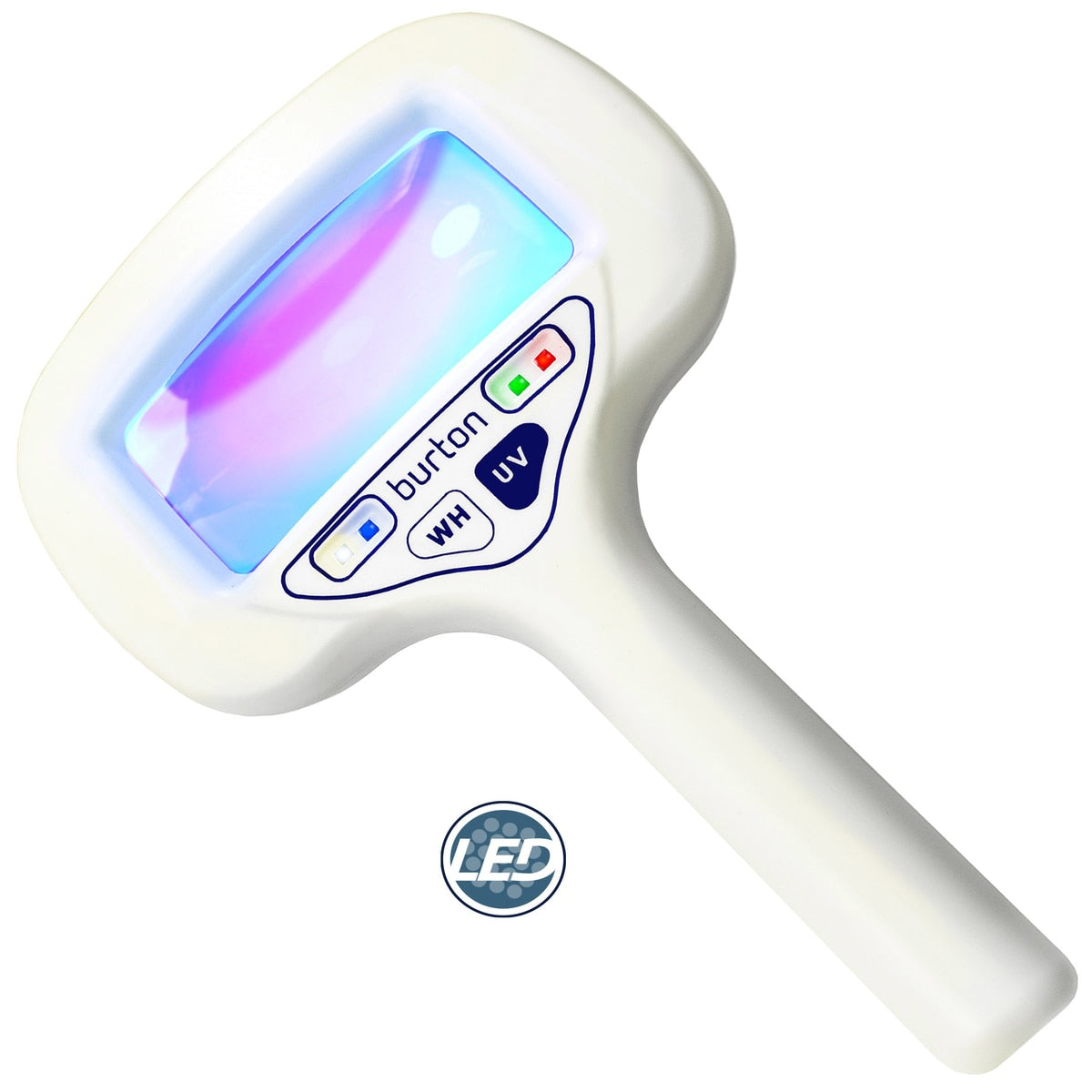

Burton's handheld UV (Wood's) lights use special fluorescent bulbs emitting UVA at about 365 nm. UV501 has two UV bulbs; UV502 adds a 5-diopter (2.25X) glass magnifier; UV503 has the magnifier plus two white and two UV bulbs. The UV604 LED is a rechargeable handheld magnifier with both 365 nm UV and white LEDs (2,750 lux at 6", CRI 95).
Features
- UVA at approx. 365 nm (Wood's light)
- UV502/UV503: optically ground and polished glass 5-diopter magnifier, 2.25X, 8" (20 cm) focal length
- UV503: two white + two UV bulbs
- Fluorescent bulbs rated 6,000-hour average life
- UV604 LED: UV and white LED in one unit; white 2,750 lux at 6", 3,800 K, CRI 95
- UV604 LED: Li-ion battery, about 4 hours continuous use; cordless or corded
- UV604 LED weighs 0.8 lb (0.36 kg)
- Optional wall brackets (1007090 for UV501-503; 6000414 for UV604)
Models
| Option | Item # |

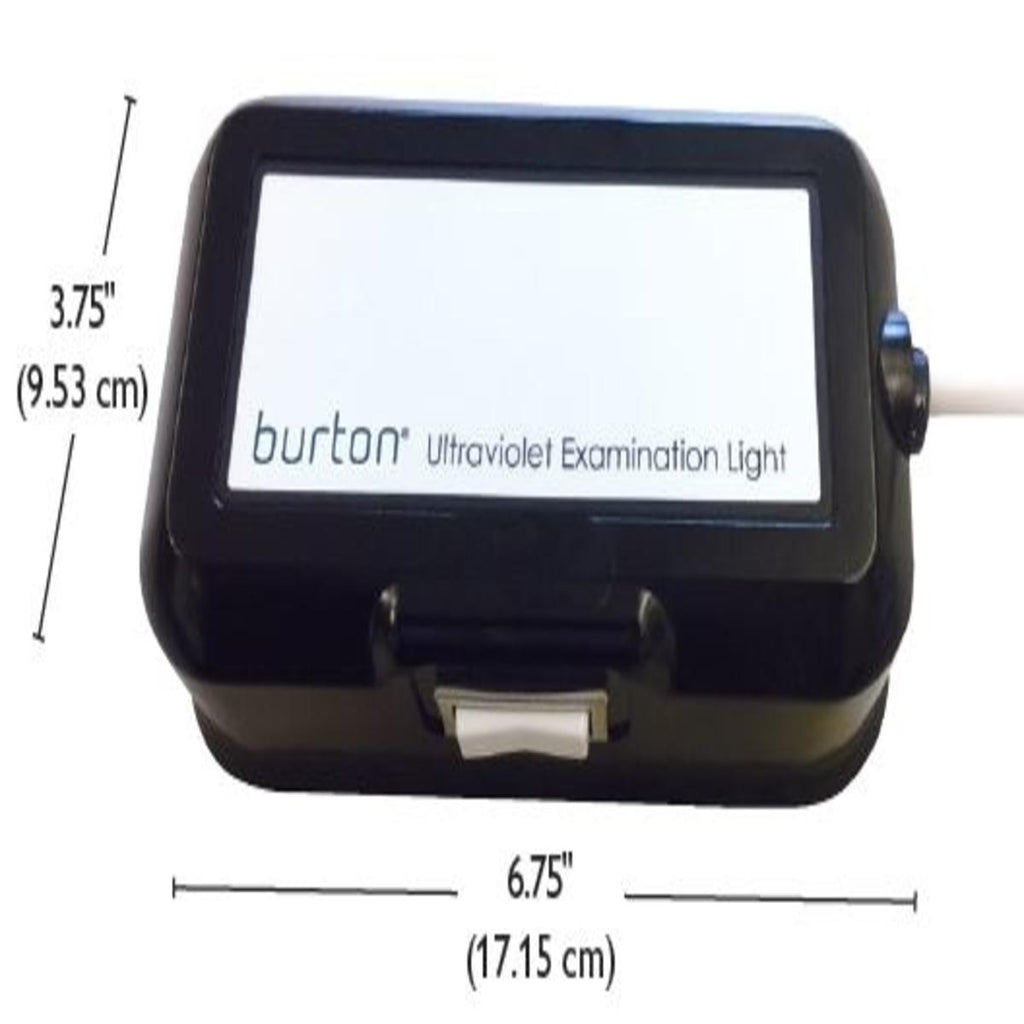

| UV501 - 2 UV bulbs, no magnifier (UV501) | UV501 |

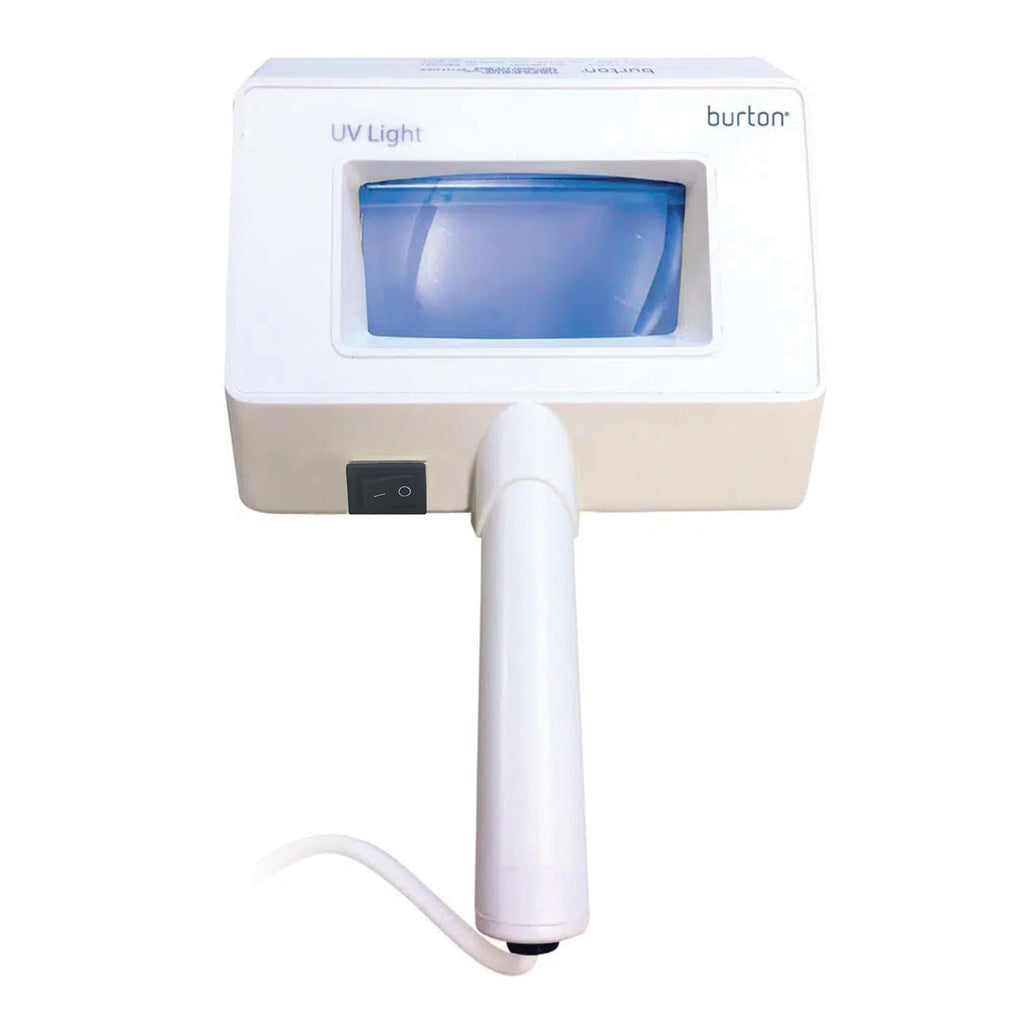

| UV502 - magnifier, 2 UV bulbs (UV502) | UV502 |

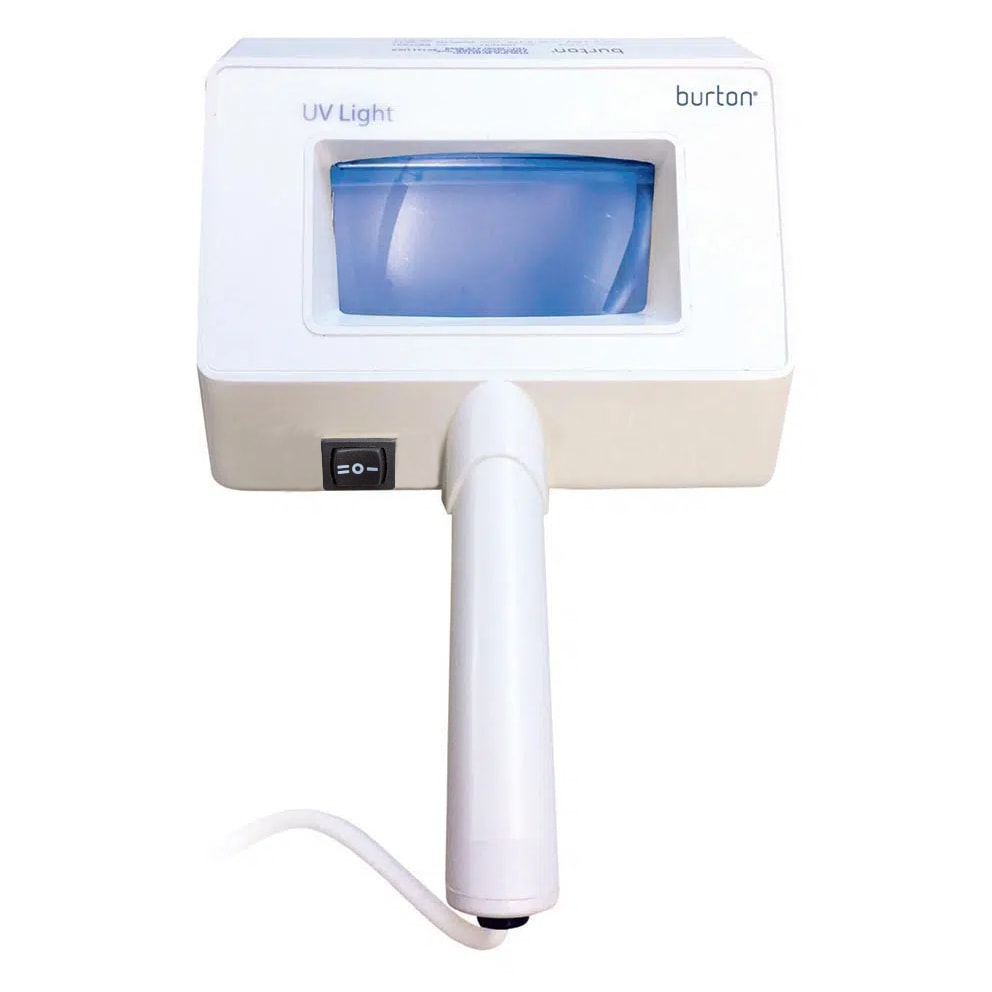

| UV503 - magnifier, 2 white + 2 UV bulbs (UV503) | UV503 |
| UV604 LED - UV + white LED magnifier (UV604 LED) | UV604 LED |

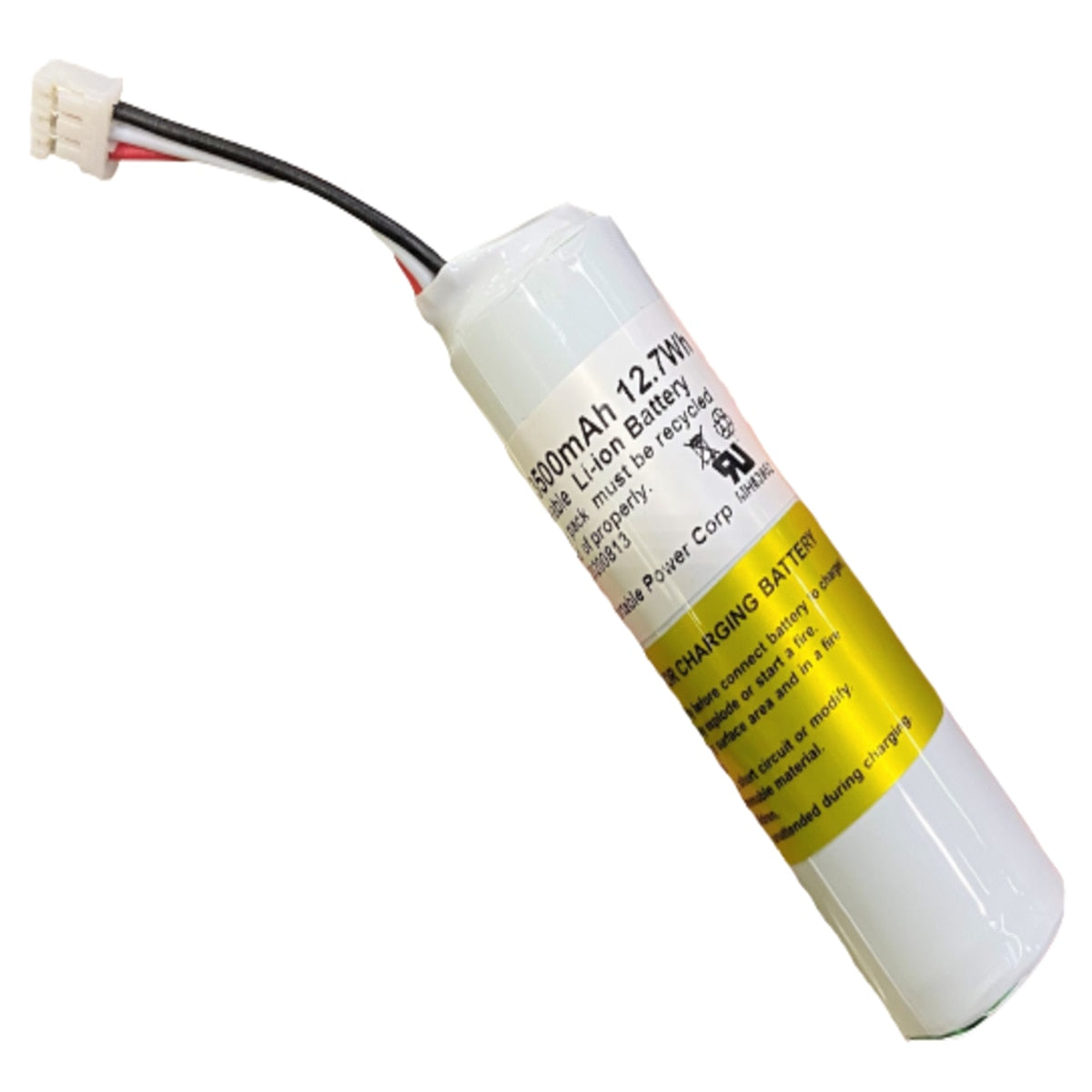

| UV604 replacement battery pack (6000412) | 6000412 |
| UV604 replacement power cord adapter (6000413) | 6000413 |
| UV604 hard carrying case (6000433) | 6000433 |
Specifications
| UV wavelength | approx. 365 nm UVA |

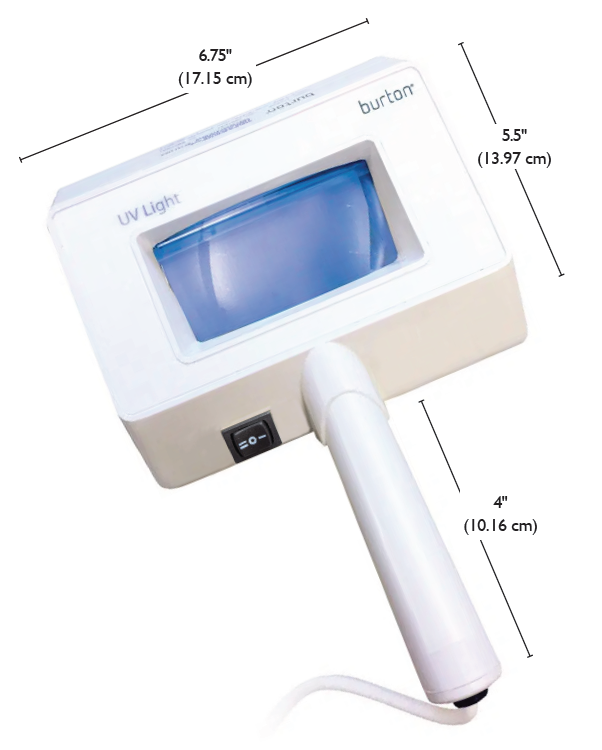

| Optics | 5 diopter (2.25X); UV501-503 8" (20 cm) viewing/focal; UV604 viewing area 1.85" H x 3.85" W |
| Light source / life | UV501-503 fluorescent, 6,000-hour bulbs; UV604 LED 36,000+ h white / 30,000+ h UV |
| White light (UV604) | 2,750 lux at 6", 3,800 K, CRI 95 |
| Power | UV501-503 120V; UV604 100-240V adapter + Li-ion battery (4 h) |
| Replacement bulbs | 0001127PK white 4/box; 1003073PK UV 4/box |
| Warranty | 5-year limited; UV604 battery 2-year limited |
| Note | UV604: 'Not a diagnostic, therapeutic or treatment device' (Burton) |
| Manufacturer | Burton Medical |
Resources
- UV501/502/503 spec sheet LIT-40 Rev 02
- UV604 LED spec sheet LIT-32 Rev 01
- Burton UV501 / UV502 / UV503 UV (Woods) Lights and UV604 LED Light with Magnifier page
Shipping: Ships direct from Burton Medical in Addison, IL (FOB factory). Shipping is calculated at checkout; items over 100 lb ship by LTL freight. Contact us for freight to Alaska, Hawaii or outside the contiguous US.
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
