Description

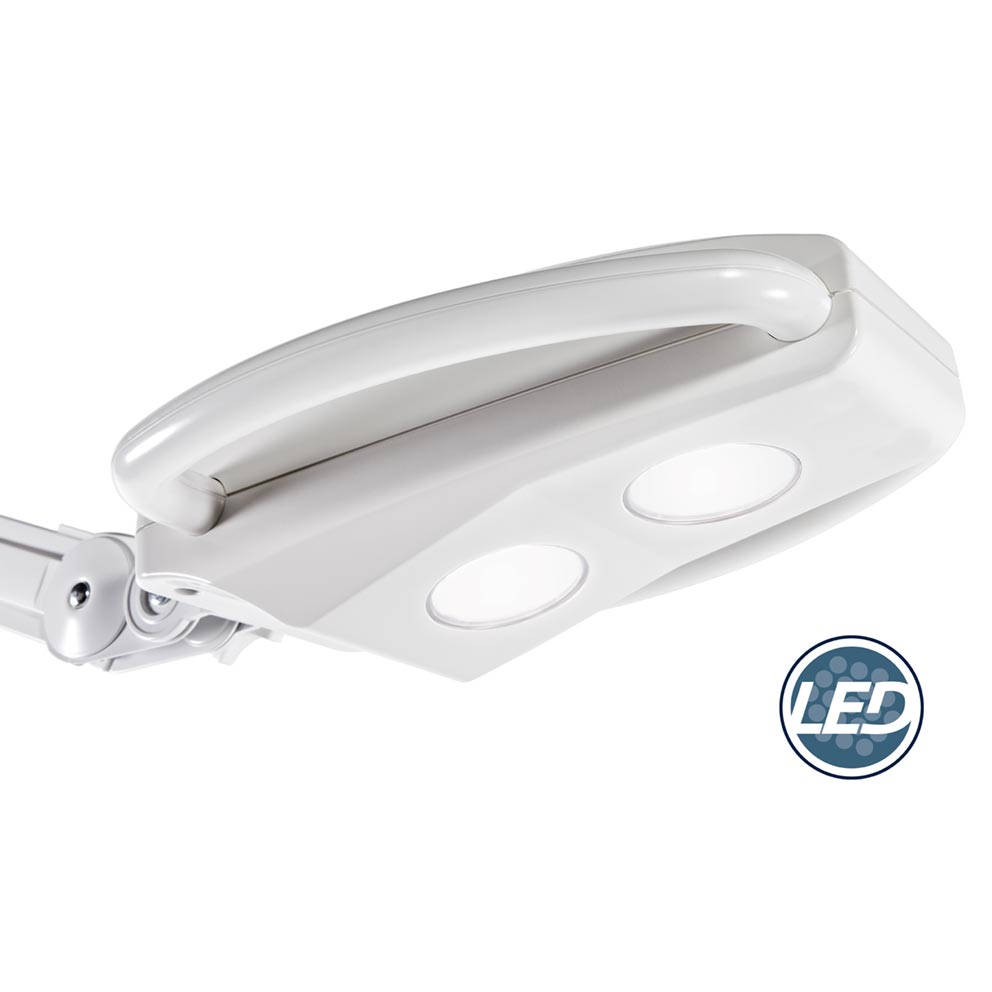

The Nova Exam LED is a dual-intensity LED exam light with a chip-on-board light source and Burton's patented K-arm for drift-free positioning. It delivers 45,000 lux (low) or 90,000 lux (high) at 18" at 4,100 K with CRI >95. Available on a mobile floor stand, wall, table or ceiling mount.
Features
- Two intensity levels: 45,000 lux low / 90,000 lux high at 18" (46 cm)
- 4,100 K color temperature, CRI >95
- Chip-on-board LED, 2 modules, 50,000-hour average life
- Patented K-arm, 45" (114 cm) maximum reach, holds position without drift
- 7 W low / 14 W high
- Certified to IEC 60601-2-41 and ANSI/AAMI ES60601-1
Models
| Option | Item # |

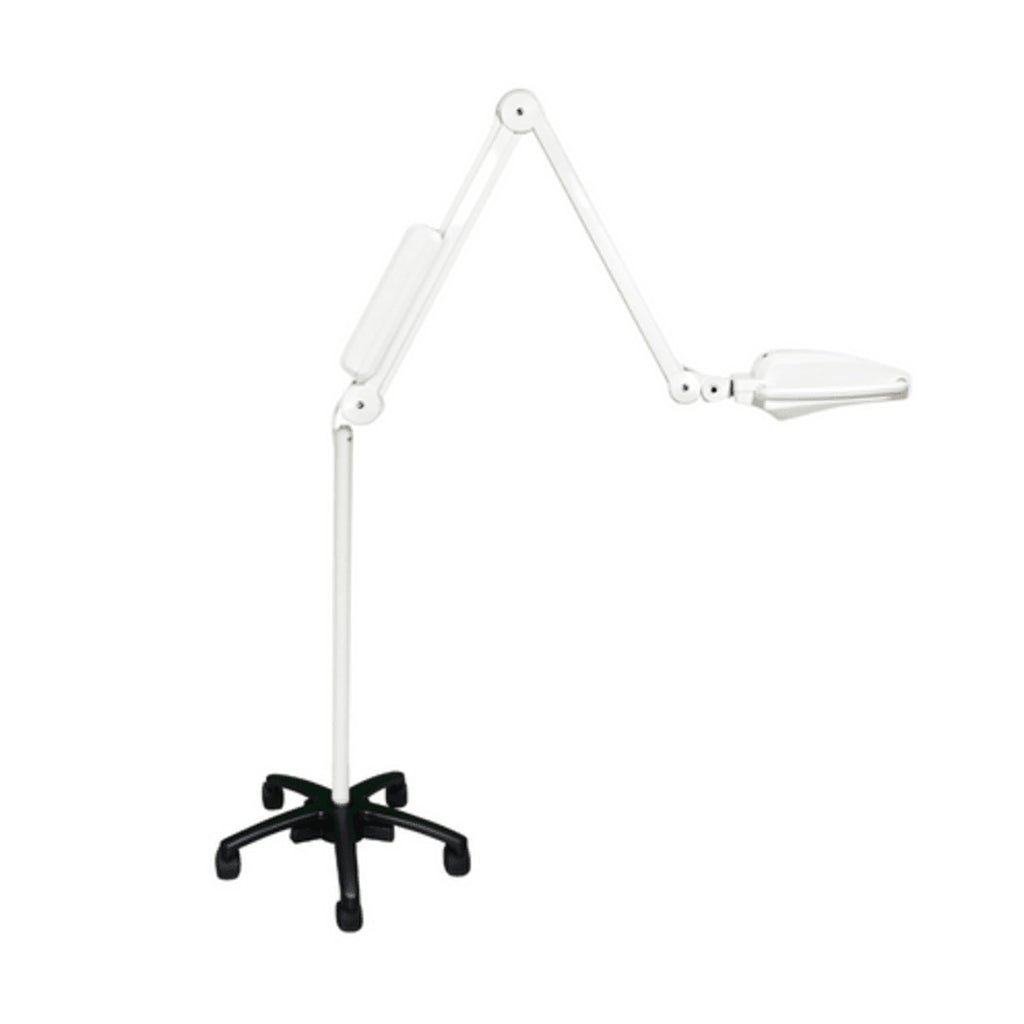

| Mobile floor stand (NXFL) | NXFL |

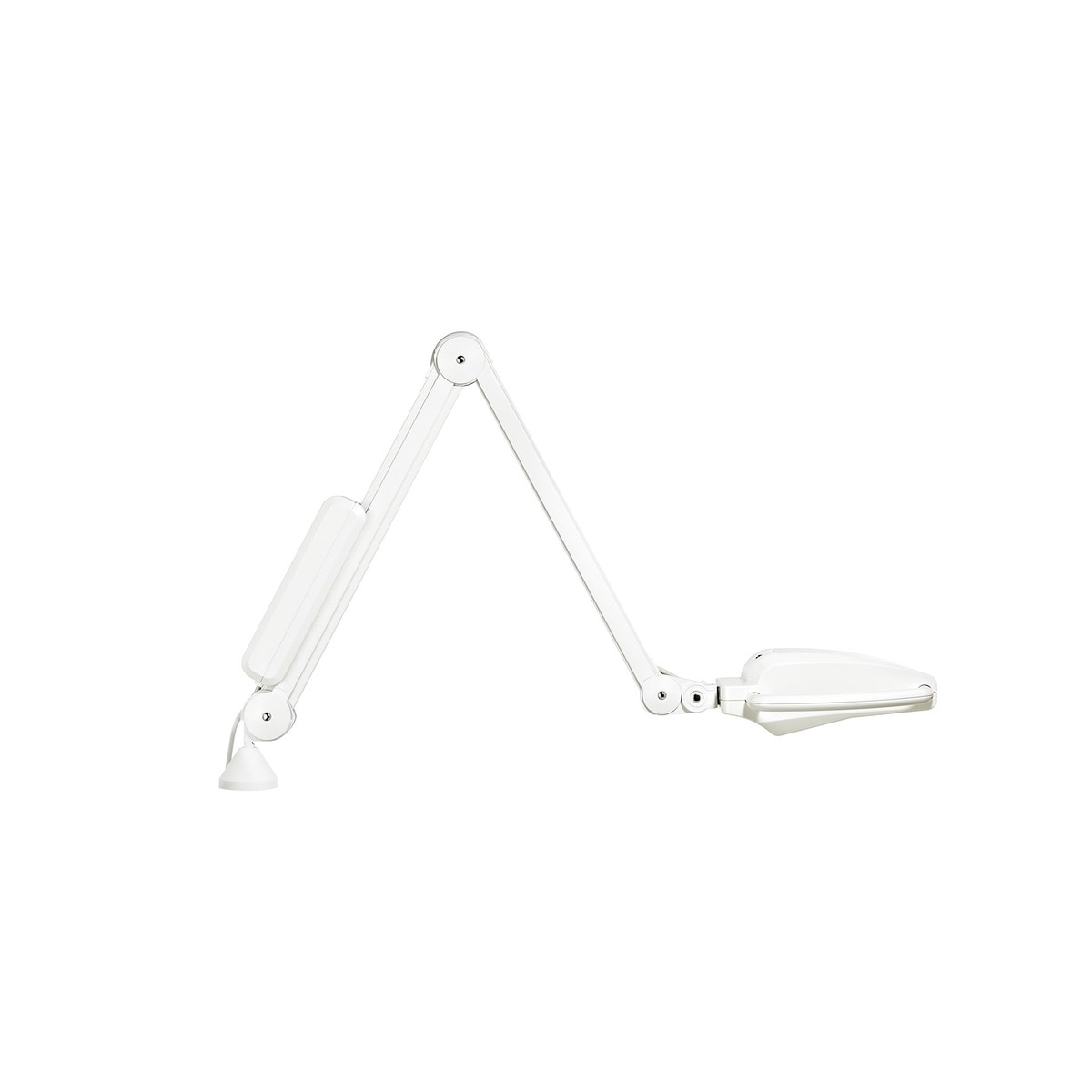

| Table mount (NXT) | NXT |

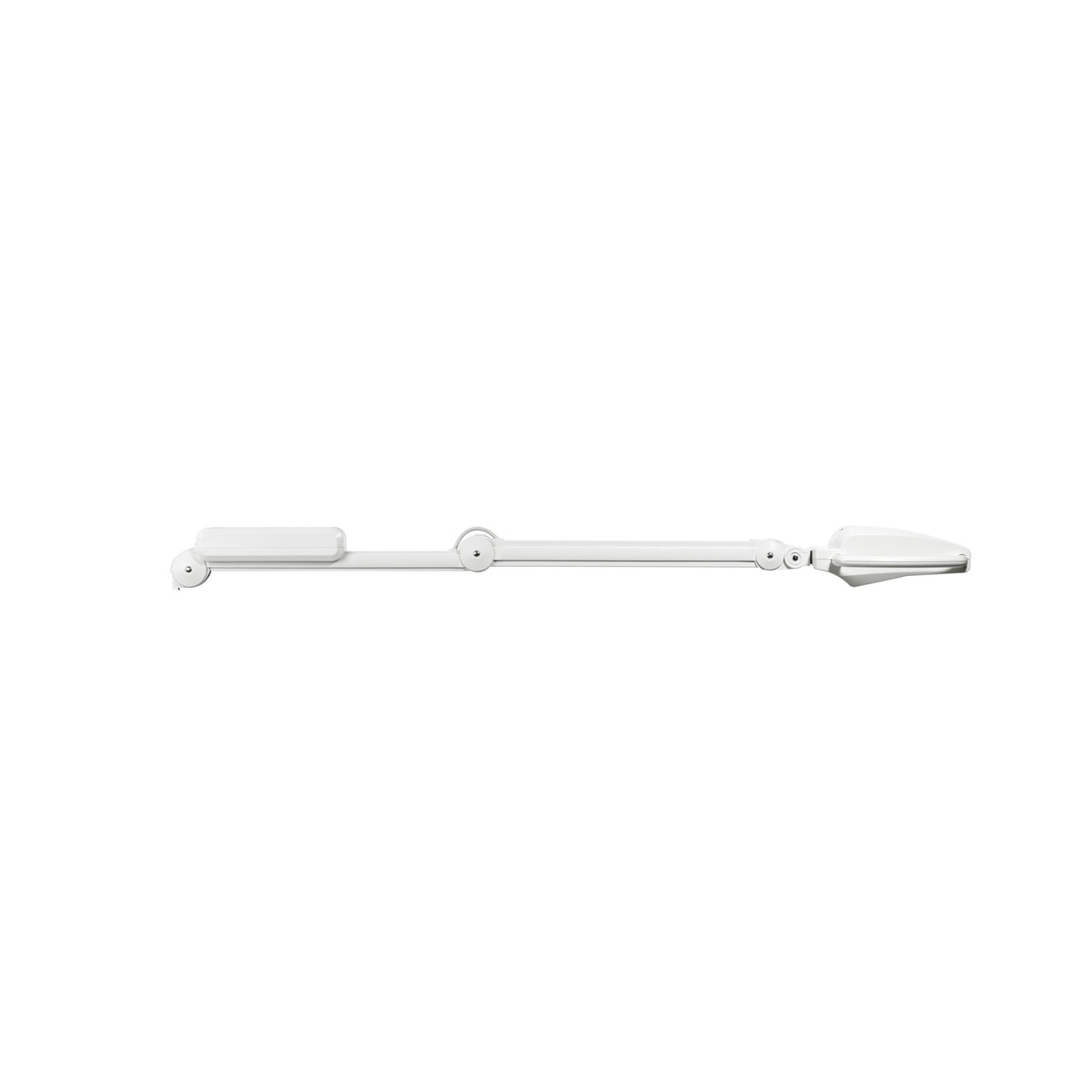

| Wall mount (NXW) | NXW |

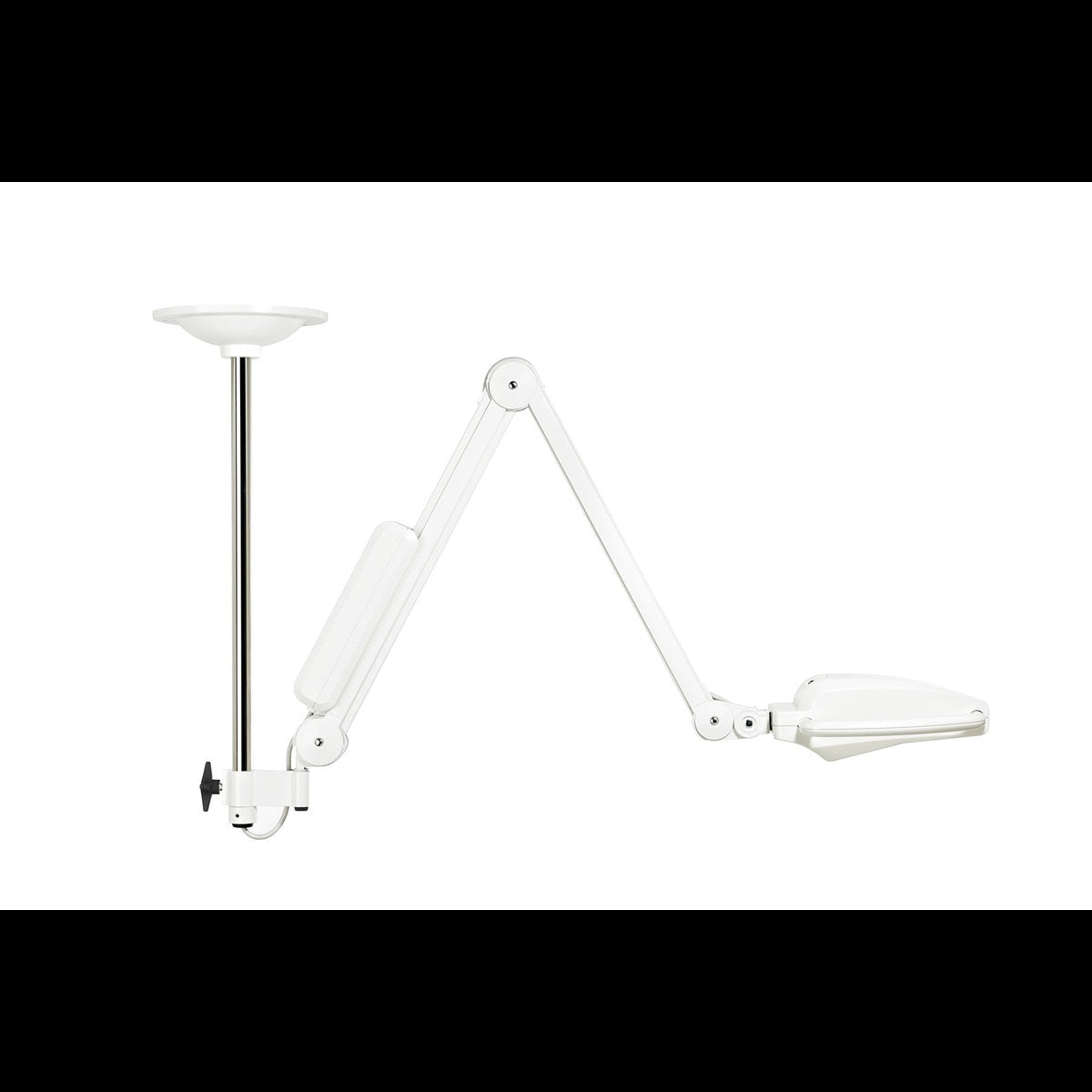

| Ceiling mount (NXC) | NXC |
Specifications
| Illuminance | 45,000 lux (low) / 90,000 lux (high) at 18" (46 cm) |
| Color temperature | 4,100 K |
| CRI | >95 |
| Light source / LED life | LED (2 modules), 50,000-hour average |
| Power | 7 W low / 14 W high; NEMA 5-15P plug (US models) |

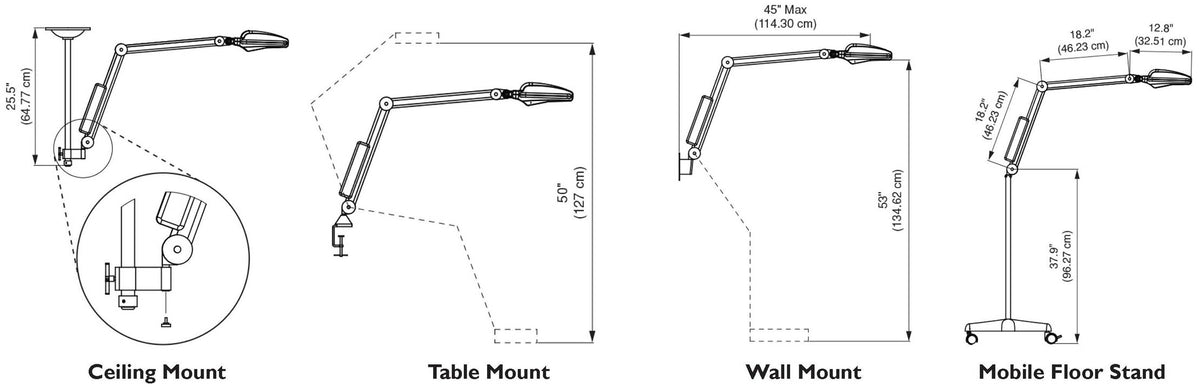

| Arm reach | 45" (114.3 cm) |
| Mounting | Mobile floor stand, wall, table, ceiling (rail mounts sold separately) |
| Ceiling accessories | 4000071 10' ceiling drop tube (42"); 4000068 DIN-style rail mount; 4000067 Fairfield-style rail mount |
| Warranty | 5-year limited |
| Manufacturer | Burton Medical |
Resources
Shipping: Ships direct from Burton Medical in Addison, IL (FOB factory). Shipping is calculated at checkout; items over 100 lb ship by LTL freight. Contact us for freight to Alaska, Hawaii or outside the contiguous US.
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
