Description
Overview

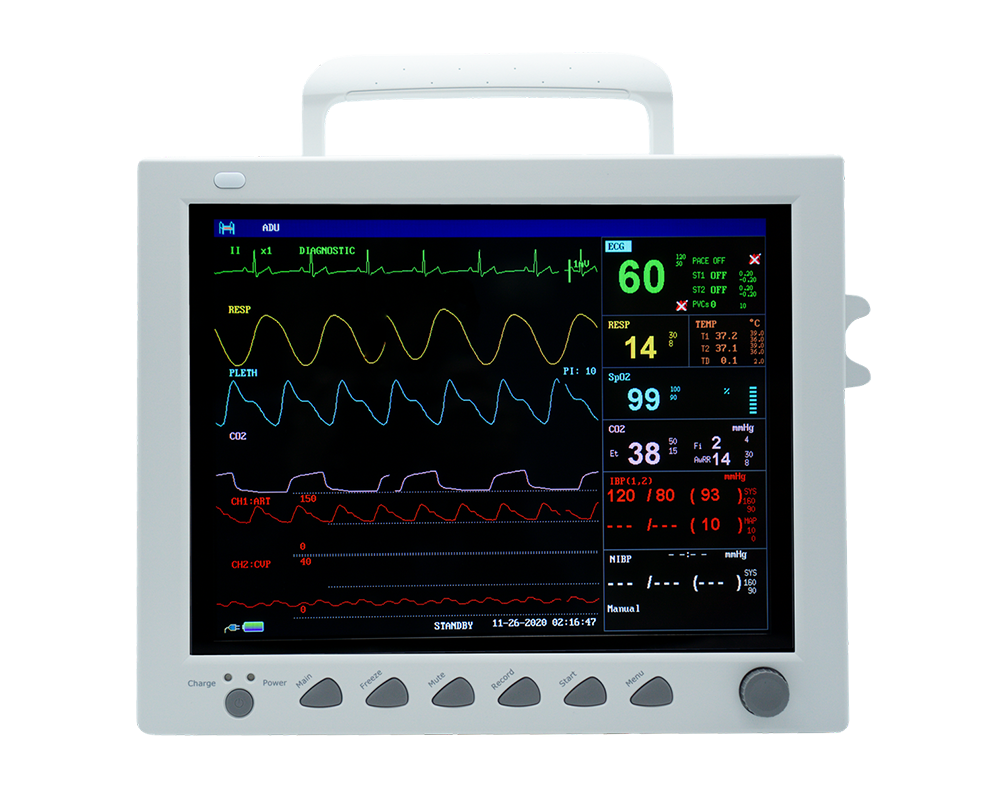

The Edan iM8 is a 12.1" bedside patient monitor for basic to mid-acuity monitoring. Every configuration includes 3/5-lead ECG, respiration, NIBP, Edan SpO2 and two temperature channels. The four configurations differ only in whether a G2 sidestream CO2 module and a thermal printer are factory-installed. Compare the iM8 with the iM3, iM60 and iM70.
What each configuration includes
| SKU | Standard parameters | CO2 | Printer |
|---|---|---|---|
| iM8 | 3/5-lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR/HR | Not installed (open CO2 port) | Not installed |
| iM8.P | Same as iM8 | Not installed (open CO2 port) | Installed |
| iM8-G2 | Same as iM8 | Edan G2 sidestream CO2 module installed | Not installed |
| iM8-G2.P | Same as iM8 | Edan G2 sidestream CO2 module installed | Installed |
What requires a separate purchase
- CO2 on iM8 / iM8.P: these units have an open CO2 port only. CO2 monitoring requires a CO2 module, quoted separately, or choose an iM8-G2 configuration.
- IBP: the iM8 has dual IBP slots. IBP cables and transducers are not included in any configuration; add them to your quote.
- Mounting: rolling stand and wall mount (iM.WM) are sold separately.
Not available on the iM8
- Wi-Fi: not offered on the iM8, per Edan. If you need wireless connectivity, see the iM60 or iM70 Wi-Fi configurations.
- Touchscreen: not available on the iM8. Touchscreen is offered on the iM60 and the iM70 Touch configurations.
Package contents (per Edan)
- Monitor with battery
- 3-lead ECG cable and snap electrodes
- Reusable SpO2 sensor
- NIBP tubing and adult cuff
- Skin temperature probe
- Power cable and grounding cable
Key Features
- Edan G2 sidestream CO2 (G2 configurations) uses standard water traps and male Luer-lock cannulas
- Arrhythmia and ST analysis, pacemaker detection
- Large-font, OxyCRG (neonatal), NIBP review and alarm review screens
- Defibrillation and electrosurgical interference protection
- Nurse call output
Technical Specifications
| Display | 12.1" color TFT LCD, 800 × 600, up to 11 waveforms |
| Standard parameters | ECG (incl. RESP), NIBP, SpO2, TEMP × 2 |
| Optional parameters | CO2 (sidestream or mainstream), dual IBP |
| Printer (P configurations) | 3-channel thermal recorder, 48 mm |
| Battery | Rechargeable lithium-ion; 2.1 Ah (≥ 80 min) or 4.2 Ah (≥ 180 min) per Edan test conditions |
| Weight | Under 5 kg (11 lb) without battery and recorder |
Documents
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote with any IBP or connectivity needs and we'll confirm the full configuration.
