Description
Overview

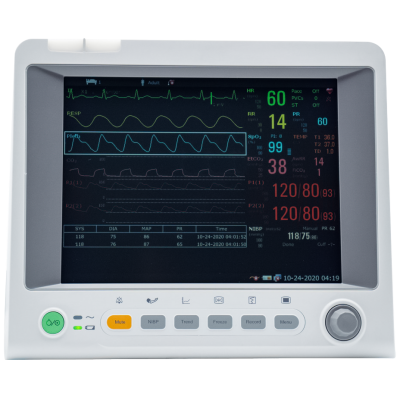

Edan iM60 bedside patient monitor with a 10.4" color touch screen and built-in Wi-Fi, configured with ECG, respiration, NIBP, SpO2 and dual temperature for sub-acute care. It monitors adult, pediatric and neonatal patients and has open slots for later CO2 and IBP upgrades. Compare the iM60 with the iM3, iM8 and iM70.
Key Features
- iSEAP ECG arrhythmia and pacemaker detection, iMAT SpO2 motion and low-perfusion algorithm, iCUFS NIBP algorithm
- Open slots for later CO2 and 2-channel IBP upgrades (modules not included)

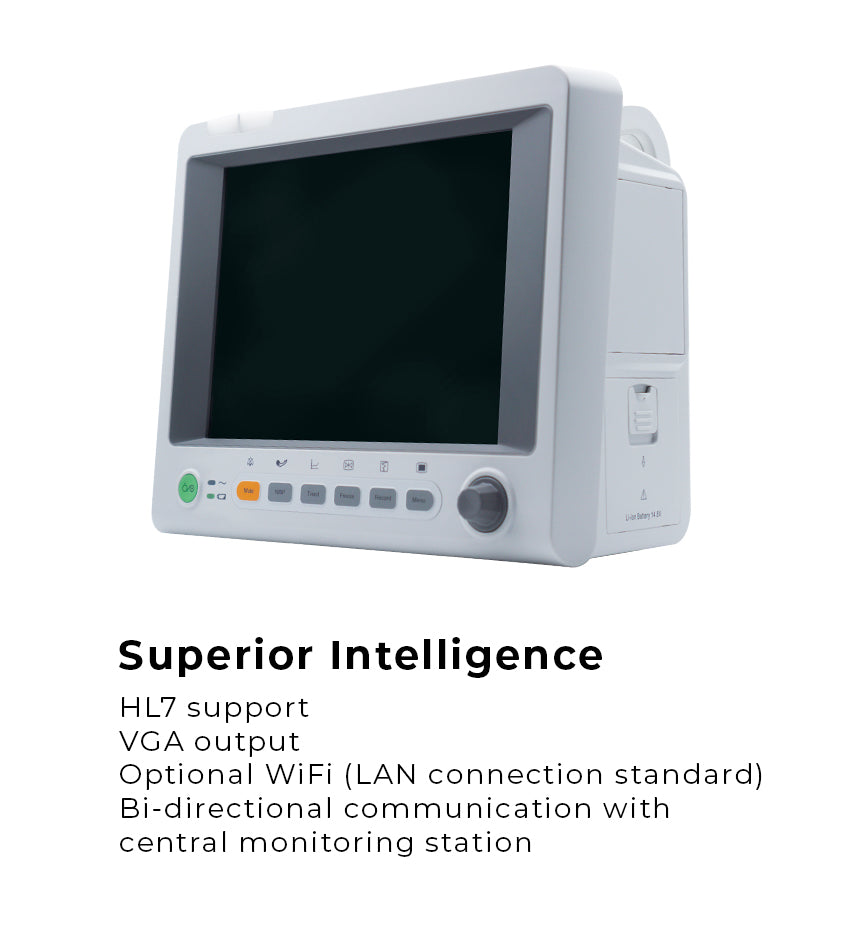

- Built-in Wi-Fi and wired LAN (DHCP); HL7; bi-directional communication with the Edan MFM-CMS central station
- Nurse call, VGA output and defibrillator synchronization
- Fanless design with waterproof, dustproof keypad
Configuration and Package Contents
- Configuration IM60.S.T.W: touch screen, Wi-Fi; 3/5-lead ECG, respiration, NIBP, EDAN SpO2, 2-channel temperature; no recorder
- iM60 monitor
- 3-lead ECG cable with snap leadwires, AHA, defibrillation-proof (01.57.471095-10)
- Adult disposable ECG electrodes (sample pack)
- EDAN SH1 adult reusable SpO2 finger sensor (Lemo)
- Adult NIBP cuff (25-35 cm) and 3 m NIBP tube
- Skin temperature probe (01.15.040187)
- Rechargeable lithium-ion battery (01.21.064143)
- Power cord (US), ground cable and user manual
- 5-lead ECG cable, CO2 and IBP modules sold separately
Technical Specifications
| Model / configuration | Edan iM60, IM60.S.T.W (touch screen, Wi-Fi) |
| Parameters | 3/5-lead ECG, respiration, NIBP, SpO2, 2-channel temperature, heart rate, pulse rate |
| Display | 10.4" color TFT touch screen, 800 x 600, up to 11 waveforms |
| Patient types | Adult, pediatric, neonatal |
| Battery | Rechargeable lithium-ion; 2.1 Ah (≥ 150 min) or 4.2 Ah (≥ 300 min) per Edan test conditions (new, fully charged battery at 25 °C, continuous SpO2, NIBP every 15 min) |
| Trends | 120 h at 1-min resolution; 1,200 NIBP sets; 60 alarm and 60 arrhythmia events |
| Recorder | Not installed on this configuration (available on the .P version) |
| Water resistance | IPX1 |
| Size | 11.9 x 6.3 x 10.0 in (303 x 161 x 254 mm) |
| Weight | Under 9.9 lb (4.5 kg) without battery |
| Power | 100-240 V, 50/60 Hz |
| Mounting options | Bed rail hook, wall mount (iM.WM), rolling stand (MT-207), mounting plate (iM.Plate), sold separately |
Compatibility and Accessories
- Edan iM.WM wall mount with upper basket and plate
- Edan MT-207 rolling stand
- Edan 3-lead integrated ECG cable, snap, AHA (01.57.471095-10)
- Edan SH1 adult SpO2 finger sensor, Lemo
- Edan 3 m NIBP extension tube
Documents and Warranty
- Edan iM60 patient monitor product page
- Edan iM60 patient monitor brochure (PDF)
- Edan iM50-iM80 specification sheet (PDF)
- Warranty: 2-year manufacturer warranty on the main unit
Genuine Edan product, sold by The Hospital Equipment Company.
