Description

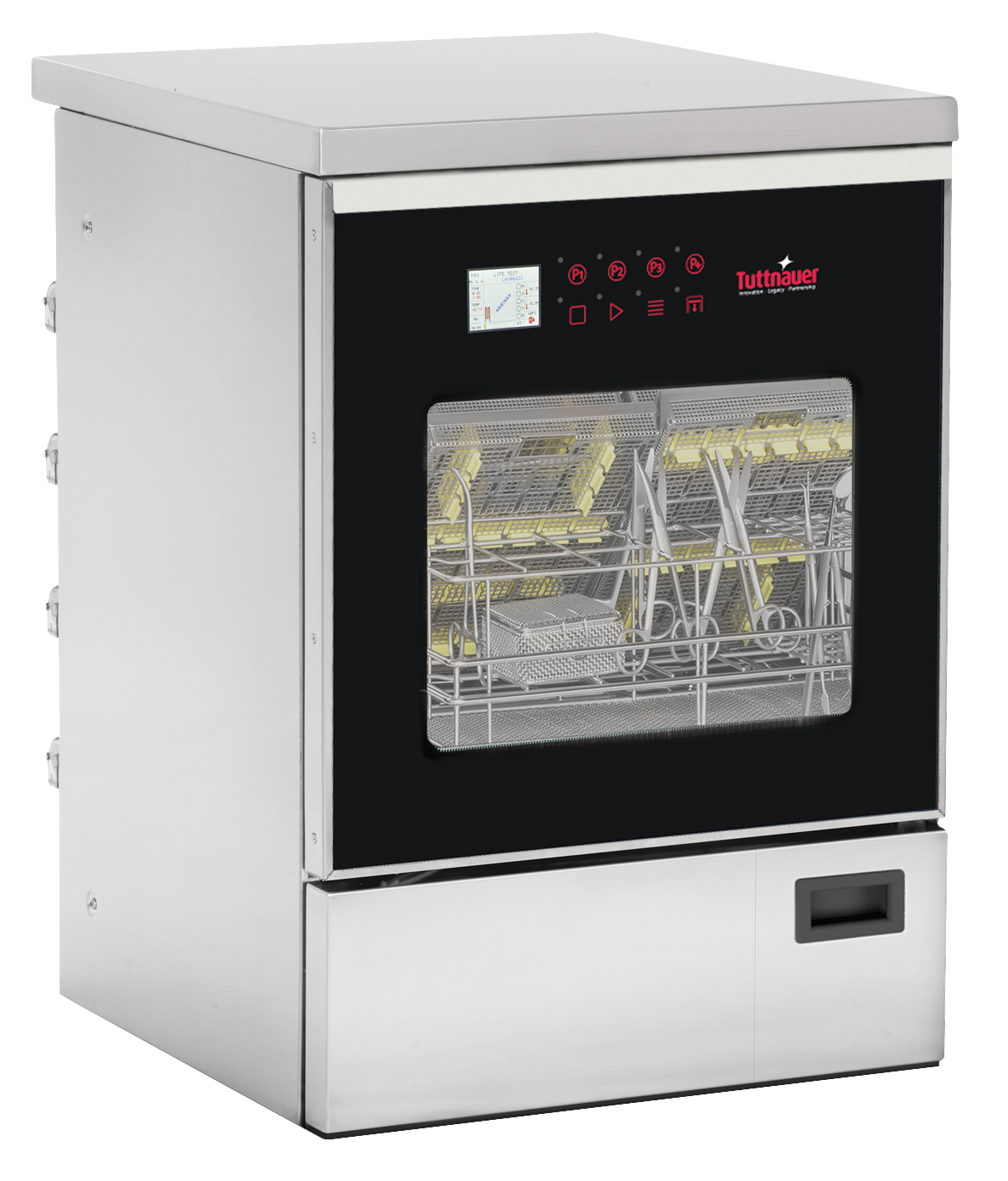

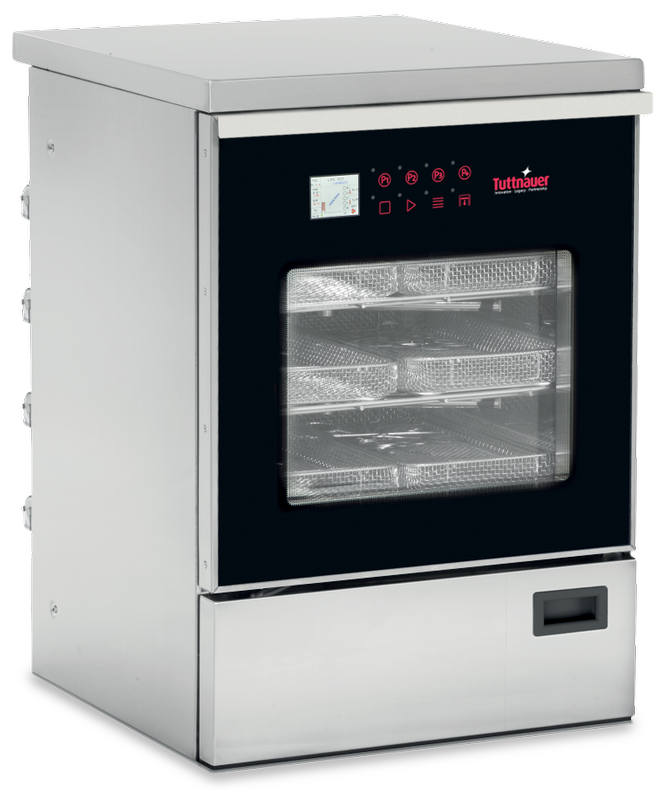

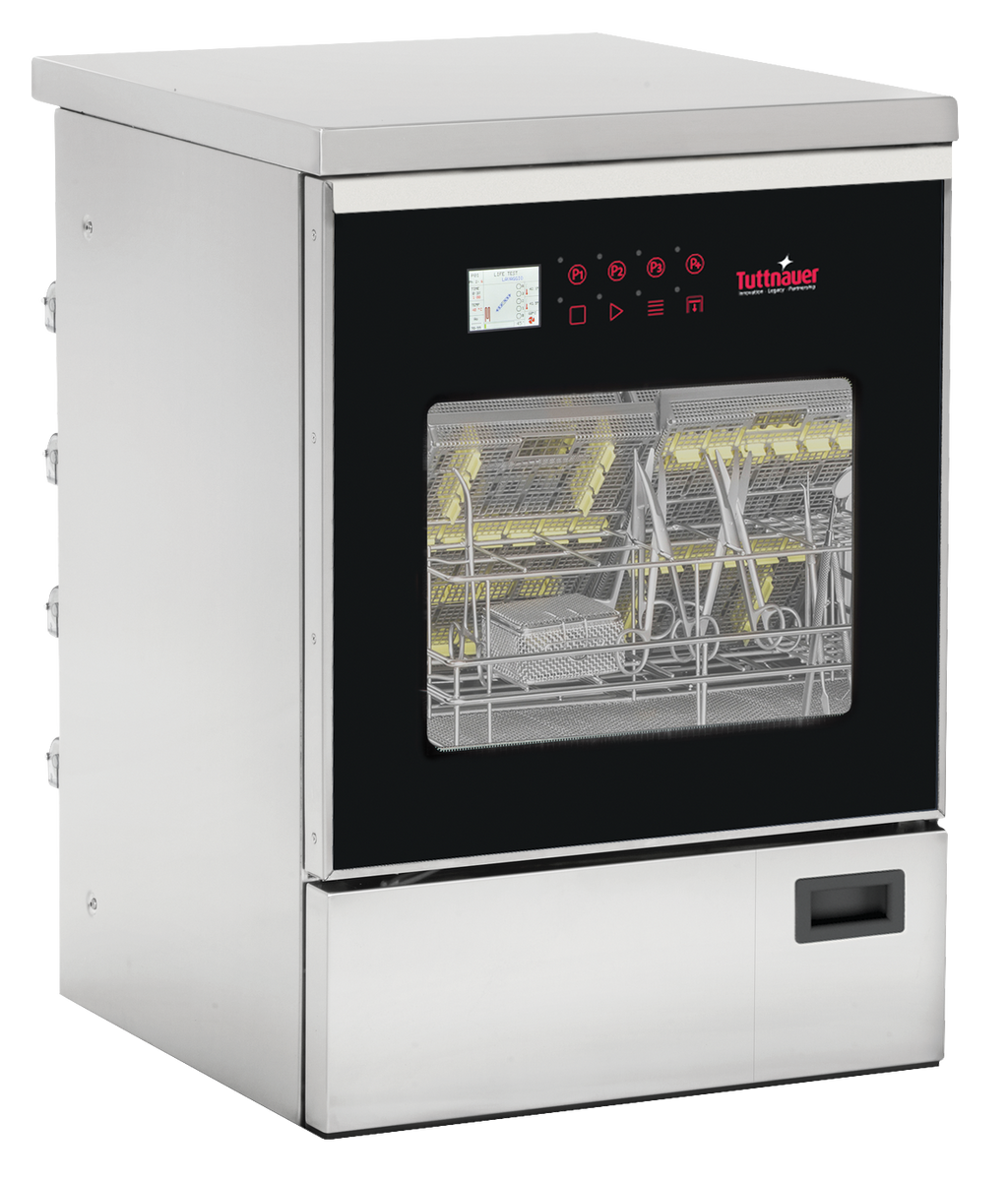

The Tuttnauer Tiva8-MD is a freestanding, high-capacity thermal washer-disinfector for medical clinics, surgery centers and multi-chair dental practices. Its 165-liter chamber automates cleaning, thermal disinfection and drying of large instrument loads, with cycle data saved for traceability. It replaces manual washing with a consistent, documented process that reduces staff exposure to contaminated instruments.
Key Features
- Up to 40 washing programs
- Thermal disinfection at 194°F (90°C) with a 5-minute hold
- 2 dosing pumps with flow meters (expandable to 4)
- Powerful electric blowers and heaters with HEPA H14 filter for complete drying
- Spray arm monitoring and multi-color chamber LED light (white, green, red)
- Cycle data recording with USB and RS232 connectivity
- AISI 316L stainless steel chamber and integrated water softener
Specifications
| Chamber volume | 165 L (44 gal) |
| Chamber dimensions | 21.7" W x 19.7" D x 23.6" H |
| Overall dimensions | 23.6" W x 25.6" D x 33.3" H (standard model) |
| Weight (empty) | 220 lb (100 kg), standard model |
| Electrical | MD1: 208-240V single-phase, 60 Hz; MD3: 208-240V 3-phase, 60 Hz (without neutral) |
| Water supply | Cold, hot and demineralized water connections |
| Disinfection | 194°F (90°C), 5-minute hold |
| Noise | <56 dB(A) washing; <61 dB(A) drying |
Model and Package Options

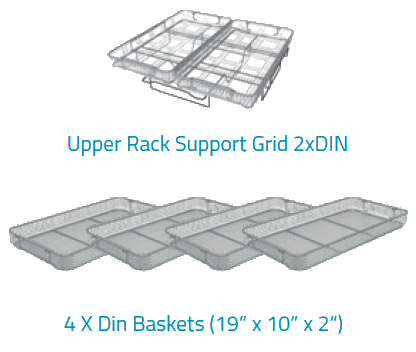

MD1 vs MD3: the models are identical in chamber and washing performance; MD1 runs on single-phase 208-240V power and MD3 on three-phase 208-240V. Medical package: includes four DIN baskets (19" x 10" x 2"). Dental package: includes insert trays for cassettes with 6 positions (35 mm), a 1/3 basket suitable for all racks, and a 14-position insert.
