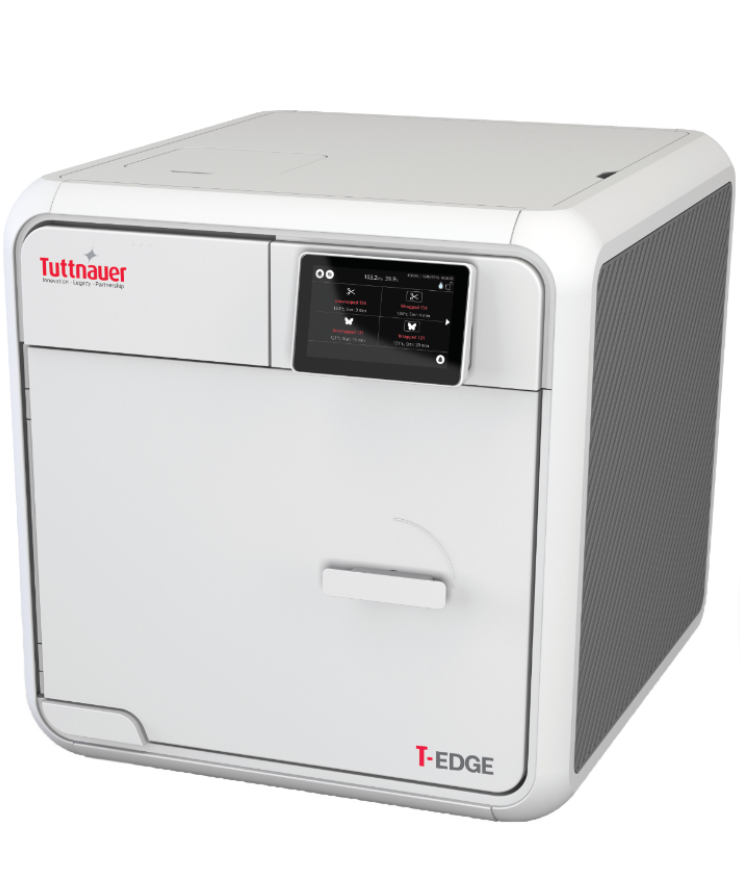

Tuttnauer T-Edge 11 Automatic Autoclave, 27L Class S/B

Roll over image to zoom in Click on image to zoom

The Tuttnauer T-Edge 11 automatic autoclave is a space-saving tabletop steam sterilizer with an 11" x 18" (27-liter) chamber and 5 extra-long trays. It delivers fast cycles for wrapped instruments, including drying, for medical, dental and veterinary practices. Its compact design fits standard 60 cm (24") deep countertops.

Key Features

Fast complete cycles for wrapped instruments, including drying
More than 75% chamber capacity utilization with 5 extra-long trays
Door opens to 110° for convenient loading
User-friendly touchpad control panel with 4 preset cycles and 2 diagnostic tests
Advanced documentation and traceability options, including barcodes
Integrated automatic water filling and drain connection
Wi-Fi remote monitoring from a smartphone or tablet

Specifications

Chamber size	11" (Ø) x 18"
Chamber volume	27 liters / 7 gallons
Overall dimensions	21.1" x 19.68" x 19.68"
Weight	124 lbs
Trays	5
Electrical	120V, 60Hz or 230V, 60Hz
Connectivity	1 Ethernet port, 4 USB ports, Wi-Fi
Class S cycle times (T-Edge 11)	Unwrapped 25 min; wrapped pouches 43 min; unwrapped delicate 47 min; handpieces 59 min
Class B cycle times (T-Edge 11)	Unwrapped 26 min; wrapped pouches 49 min; unwrapped delicate 35 min; wrapped delicate 75 min

Options

Class S (Gravity) covers unwrapped and wrapped instruments, delicate instruments and handpieces. Class B (Pre/Post Vacuum) adds vacuum air removal for wrapped delicate and complex loads. Choose 110V for standard North American outlets or 220/230V for high-voltage circuits.
