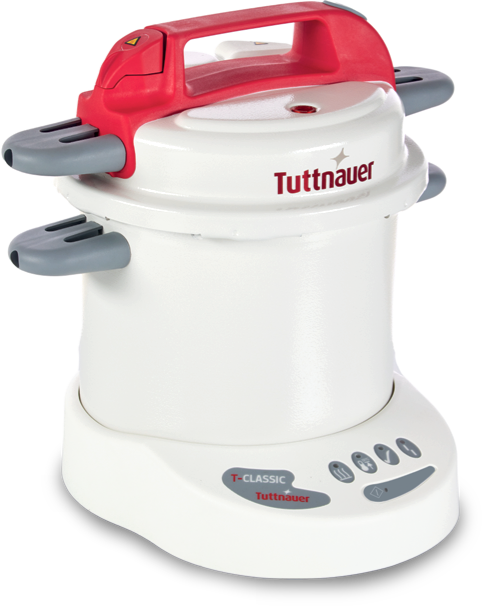

Tuttnauer T-Classic 9 Manual Steam Autoclave, 9 Liter

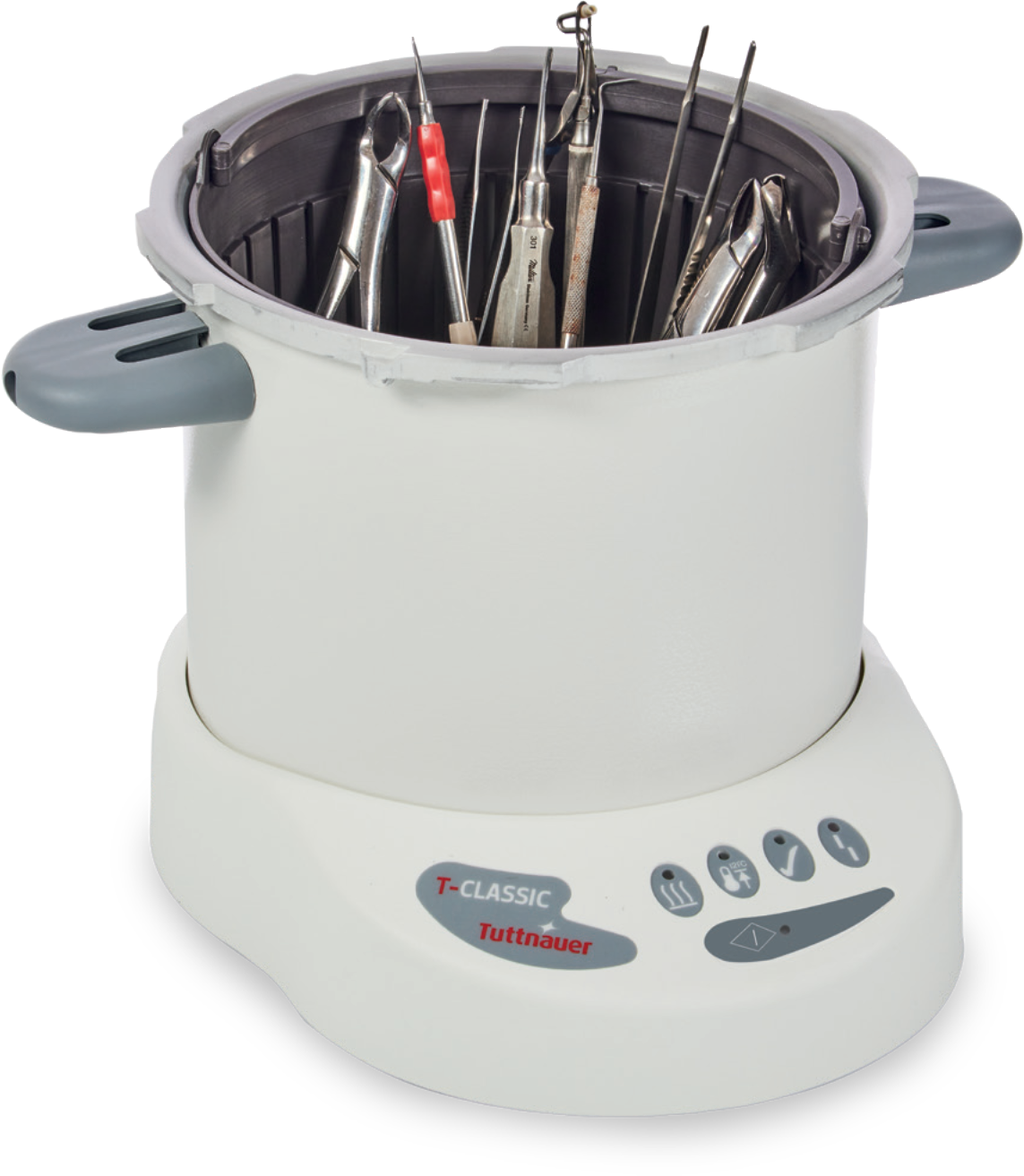

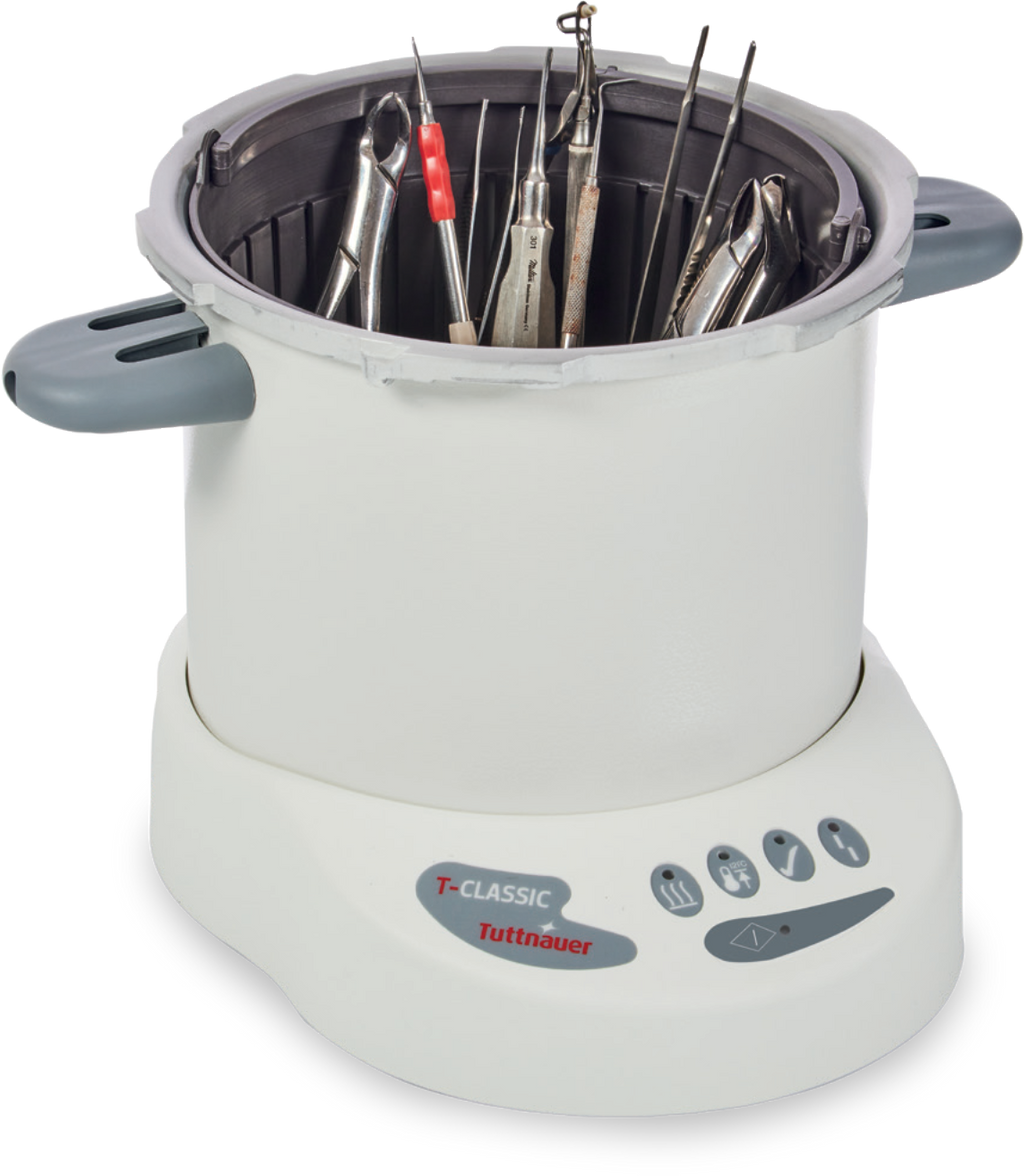

Tuttnauer T-Classic 9 Manual Steam Autoclave - open with instruments

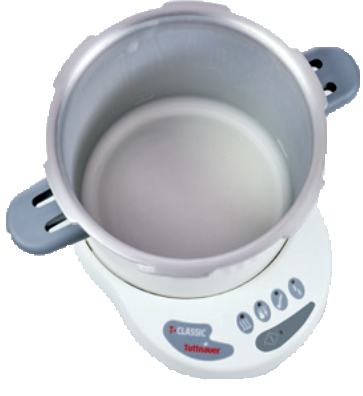

Tuttnauer T-Classic 9 Manual Steam Autoclave - open, top view

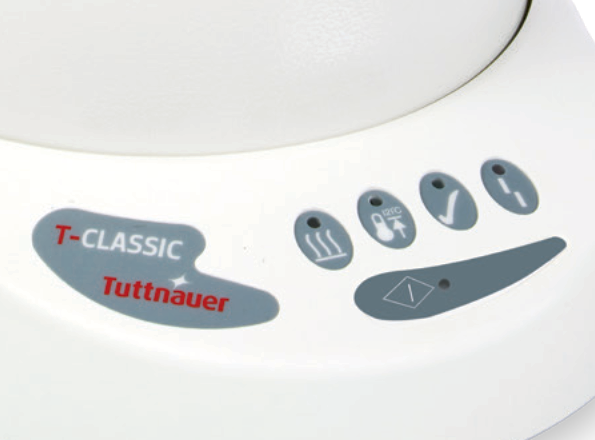

Tuttnauer T-Classic 9 Manual Steam Autoclave - control panel

Roll over image to zoom in Click on image to zoom

The Tuttnauer T-Classic 9 manual steam autoclave is an ultra-light, 9-liter point-of-use sterilizer for clinics, dental offices, tattoo studios and labs with limited counter space. One touch starts an automatic cycle that runs to completion, with unwrapped cycles as short as 18 minutes at 250°F.

Key Features

Lightest tabletop autoclave available, at just 11.7 lbs
One-touch operation runs an automatic cycle to completion
Unwrapped cycles in as little as 18 minutes
Automatic power shut-off if the water level is insufficient
Thermal fuse protection against overheating and electrical faults
Basket included for easy loading and unloading

Specifications

Chamber capacity	9 liters / 2.4 gallons
Chamber diameter x height	8.2" x 9"
Maximum instrument length	9"
Maximum load weight	6.61 lbs (3 kg)
External width x height	13.4" x 13"
Net weight	11.7 lbs (5.3 kg)
Sterilizing temperature	250°F
Minimum sterilizing time	18 minutes
Electrical	120V, 50/60Hz, 1200W
Standards	ASME VIII Div. 1, FDA 510(k) K962903, CSA/TSSA registration, MDD 93/42/EEC

Configuration Options

Standard includes the loading basket. With Cassette Holder is the same 9-liter autoclave supplied with a cassette holder for sterilizing instrument cassettes.

Ideal For

Point-of-use sterilization in exam rooms, small dental and dermatology offices, tattoo studios and labs. Its light weight and small footprint make it easy to place wherever instruments are used, or to move between rooms.
