Description

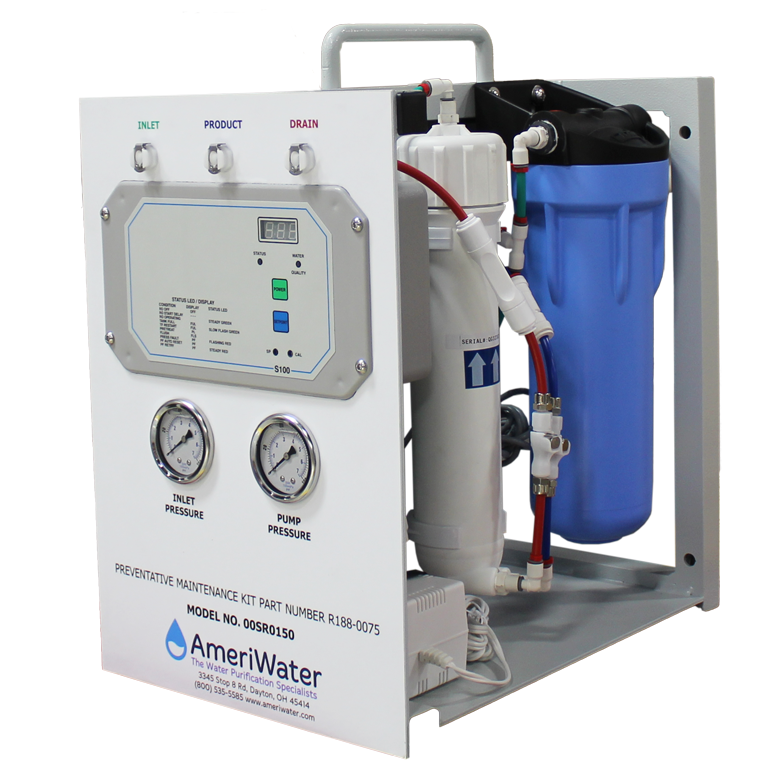

The Ameriwater SRO150 Series Reverse Osmosis Water Filtration System is a complete, compact water treatment system. It supplies low-conductivity purified water for autoclaves, instrument washers and other clinical equipment. It produces up to 150 gallons per day with 95–98% nominal rejection, and is built for dental clinics, veterinary clinics, physician offices and clinical chemistry labs.
The system is designed for end-user installation. It fits under a standard sink or mounts on a wall, and connects to a potable water line. A digital microprocessor shows TDS and monitors faults, and a pressurized storage tank keeps purified water ready when you need it. That means no more buying, carrying and storing bottled distilled water.
Key Features
- Produces up to 150 gallons per day (GPD) with 95–98% nominal rejection
- High-rejection TFC membranes with two integrated 10-micron carbon block prefilters
- Digital microprocessor with TDS readout, adjustable TDS limit and fault/status monitoring
- Integrated booster pump, automatic feed water valve and liquid-filled pressure gauges
- Front-panel quick connects for feed, product and reject water
- Small footprint, under-sink or wall mount, with a powder-coated aluminum frame
- Pressurized storage tank sized to your daily demand
Specifications
| Production Capacity | 150 GPD |
|---|---|
| Nominal Rejection | 95–98% |
| Prefiltration | Two 10-micron carbon block prefilters |
| Electrical | 115V, 50/60 Hz, 1 Ph, 3 A, standard 3-prong plug |
| Feed Water | Potable drinking water |
| Feed Water Temperature | 50–90°F (77°F ideal) |
| Feed Water Pressure | 30–80 PSI |
| Minimum Feed Flow | 1 GPM |
| RO Unit Dimensions | 11.5" W x 16" D x 19" H |
| RO Unit Weight | 40 lb (dry) |
Tank Options
Choose the expansion tank size that matches your water use:
- 4.5 Gallon Tank (00SRO150-4): approx. 11" W x 11" D x 15" H, 8 lb dry
- 9.2 Gallon Tank (00SRO150-9): approx. 13" W x 13" D x 20" H, 15 lb dry
- 14 Gallon Tank (00SRO150-14): approx. 16" W x 16" D x 24" H, 24 lb dry
