Description

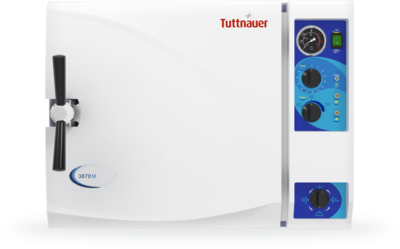

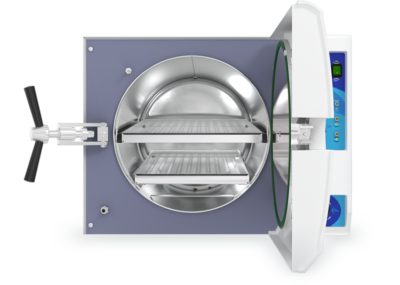

The Tuttnauer 3870M large capacity manual autoclave offers an 85-liter, 15" x 30" chamber for multi-practitioner clinics, surgery centers, veterinary hospitals and labs with high-volume sterilization needs. This 230V steam sterilizer arrives with a 3-shelf stand and holds up to 15 full-size instrument cassettes per load.
Key Features
- Large 85-liter chamber holds up to 15 full cassettes
- Automatic shut-off at the end of both the sterilization and dry cycles
- Double safety locking device keeps the door closed while the chamber is pressurized
- Front drain valve for rapid reservoir drainage
- Long-life electropolished chamber and door
- Dual safety thermostat for overheating protection
- Supplied with a 3-shelf stand
Specifications
| Chamber size | 15" x 30" (385 x 760 mm) |
| Chamber volume | 85 liters / 22 gallons |
| External dimensions | 34.5" D x 26" W x 20.6" H |
| Shipping weight | 278 lbs (126 kg) with stand |
| Electrical | 230V, 50/60Hz, 3000W, 13.6A (requires 220–235V) |
| Trays | 2 (26.6" x 11.3" x 1" and 26.6" x 13.8" x 1") |
| Cassette capacity | 15 full cassettes |
| Standard cycle time | 23 min hot start / 32 min cold start |
| Warranty | 1 year parts and labor |
| Standards | UL/EN 61010-1, FDA, ISO 13485:2003, ISO 9001:2000 |
What's Included
- 3870M autoclave
- 2 trays
- 3-shelf stand
Ideal For
High-volume settings that need to process large instrument sets, trays and cassettes in fewer cycles, such as multi-doctor practices, surgery centers, veterinary hospitals and research labs. A 230V circuit is required.
