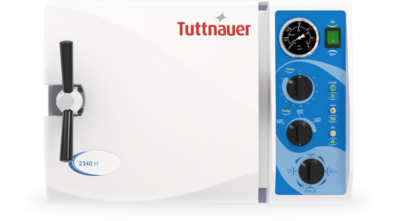

Name: Tuttnauer 2340M Manual Autoclave, 9" x 18" Chamber
Brand: Tuttnauer
SKU: 2340M
Price: 4320.99 USD
Availability: InStock

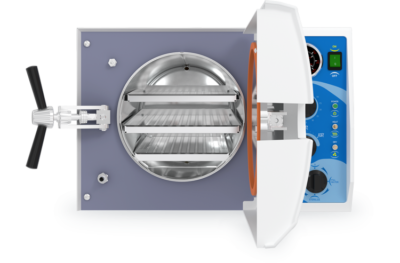

Tuttnauer 2340M Manual Autoclave - open door

Roll over image to zoom in Click on image to zoom

The Tuttnauer 2340M manual autoclave is a proven, easy-to-operate tabletop steam sterilizer with a 9" x 18" (19-liter) chamber. It is a dependable workhorse for medical, dental, veterinary and tattoo practices that want simple manual control and reliable results on standard 120V power.

Key Features

Safe-locking door with a double safety mechanism
Intuitive, color-coded control panel
Front drain valve for quick and easy reservoir drainage
Long-life electropolished chamber and door
Dual safety thermostat and automatic shut-off for overheating protection

Specifications

Chamber size	9" x 18" (230 x 470 mm)
Chamber volume	19 liters / 5 gallons
External dimensions (D x W x H)	21.5" x 20" x 14.4"
Shipping weight	85 lbs (39 kg)
Electrical	120V, 50/60Hz, 1400W, 12A
Tray capacity	3 trays (16.3" x 6.7" x 0.8")
Cassette capacity	2 full (8" x 11") and 2 half (8" x 5.5")
Standard cycle time	13 min hot start / 27 min cold start
Warranty	1 year parts and labor
Standards	ASME, UL/EN 61010-1, FDA, ISO 13485:2003, ISO 9001:2000

Ideal For

Single-provider medical offices, dental practices, veterinary clinics, podiatry and tattoo studios that want a simple, proven manual autoclave. It plugs into a standard 120V outlet and holds both full and half cassettes, so it handles everyday instrument loads with minimal training.
