Description
Overview

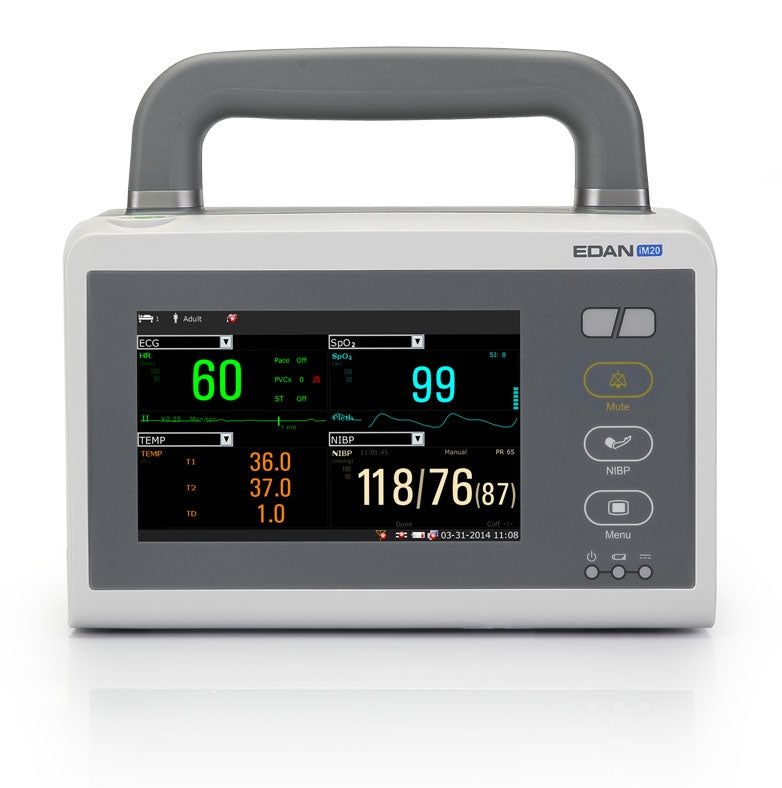

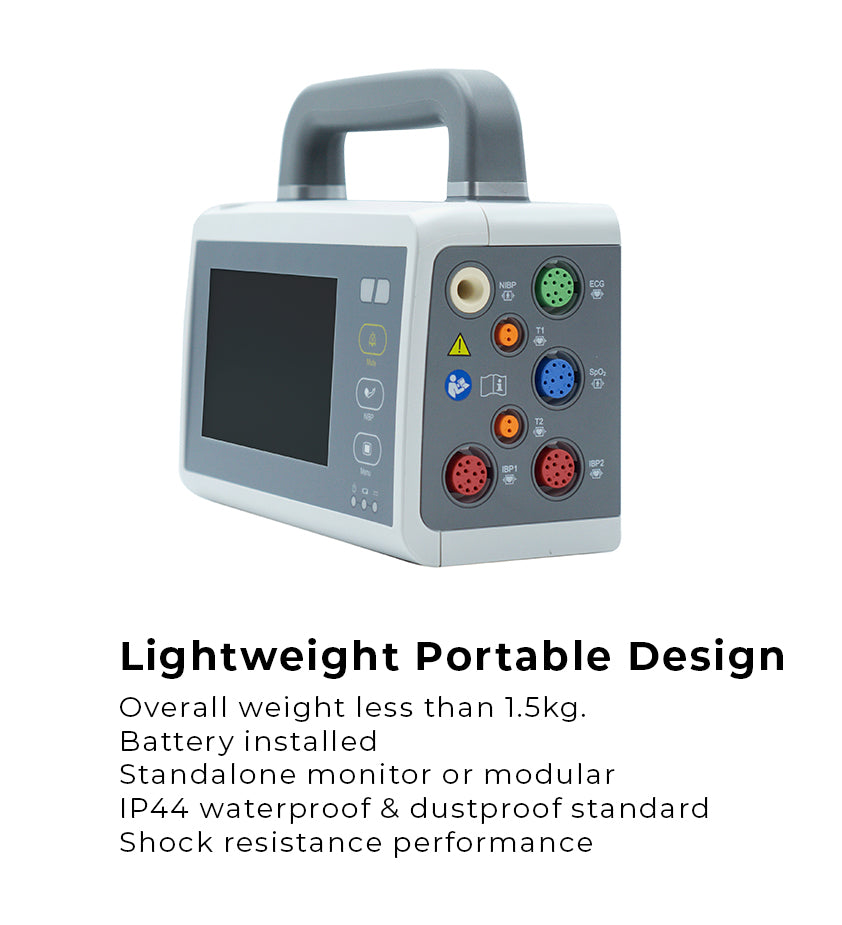

Edan iM20 is a compact transport patient monitor with a 5" touch screen, configured with a SunTech NIBP module plus ECG, respiration, SpO2 and dual temperature. It is for adult, pediatric and neonatal patients. At under 1.5 kg (3.3 lb) with battery and IP44 rated, it is built for patient transport and can also serve as the parameter module for Edan Elite V5/V6/V8 modular monitors.
Key Features
- Measures 3/5-lead ECG, respiration, SunTech NIBP, EDAN SpO2, 2-channel temperature, heart rate and pulse rate, covering routine transport vitals in one unit
- Built-in Wi-Fi (802.11 b/g/n, 2.4 GHz) connects to the Edan MFM-CMS central station for remote viewing
- Up to 48 h full-disclosure waveforms (3/5-lead) and 240 h trend graphs/tables for reviewing events after transport
- Li-ion battery runs about 5.5 h under Edan test conditions
Configuration and Package Contents
- Configuration iM20-ST: SunTech NIBP, ECG, respiration, SpO2 and dual temperature
- iM20 monitor with SunTech NIBP
- 3-lead snap ECG cable, AHA, 3.4 m (11.2 ft) (01.57.471388) and adult electrodes (sample pack)
- SH4.DB9 adult silicone soft-tip SpO2 sensor, 1 m (3.3 ft), with SpO2 7-pin extension cable (01.57.471068)
- Adult NIBP cuff (27-35 cm / 10.6-13.8 in) and NIBP tube
- 2-pin adult skin temperature probe (01.15.040225)
- Power adapter with US plug
- User manual
- Sold separately: bed rail clamp/mounting kit (02.04.243320), carrying bag, spare battery (21.21.064213)
Technical Specifications
| Display | 5" color TFT touch screen, 800 x 480 |
| Parameters | 3/5-lead ECG, respiration, NIBP, SpO2, 2-channel temperature, heart rate, pulse rate |
| NIBP | SunTech module, oscillometric |
| Patient types | Adult, pediatric, neonatal |
| Wireless | Wi-Fi 802.11 b/g/n, 2.4 GHz |
| Battery | Li-ion 11.1 V, 2,400 mAh; about 5.5 h under Edan test conditions |
| Storage | 1,200 NIBP sets; up to 200 alarm and 200 arrhythmia events; 48 h full-disclosure waveforms; 240 h trends |
| Water resistance | IP44 |
| Dimensions | 7.3 x 4.6 x 3.4 in (185 x 116 x 85.3 mm) |
| Weight | Under 3.3 lb (1.5 kg) with battery |
Compatibility and Accessories
- Central station: Edan MFM-CMS central monitoring system software
- Edan Elite V5/V6/V8 modular monitors (iM20 serves as the parameter module)
- Replacement SpO2: Edan SH4 adult soft-tip SpO2 sensor, DB9 with the Edan SpO2 7-pin extension cable
- Replacement temperature: Edan 2-pin adult skin temperature probe
- Optional: bed rail clamp/mounting kit (02.04.243320), carrying bag, spare battery (21.21.064213)
- Supplies: Edan SH1 Adult Hard-Shell SpO2 Finger Sensor, Reusable, 1 m, DB9 (SH1.DB9), Edan SH6 Adult/Pediatric SpO2 Ear Clip Sensor, Reusable, 1 m, DB9 (SH6.DB9), Edan SH3 Neonatal SpO2 Wrap Sensor, Reusable, 1 m, DB9 (SH3.DB9)
Documents and Warranty
- Edan iM20 specification sheet (PDF)
- Edan iM20 patient monitor product page
- 2-year manufacturer warranty on the main unit
Genuine Edan product, sold by The Hospital Equipment Company.
