Description
Overview

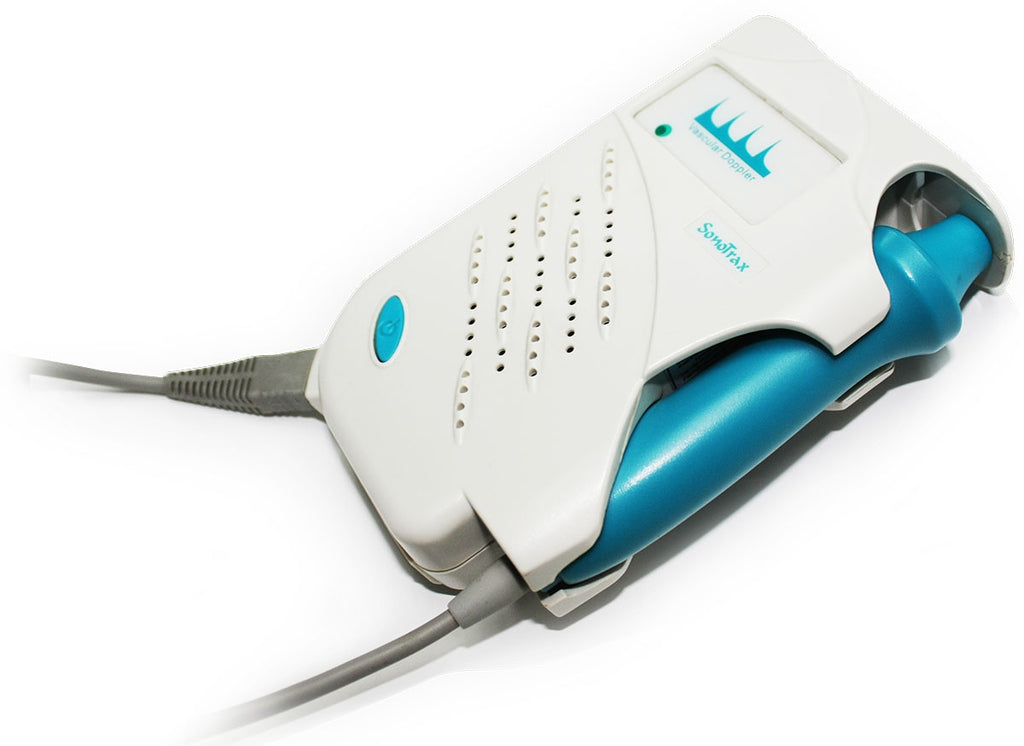

The Edan Sonotrax Vascular is a handheld audio Doppler for assessing peripheral vascular disease and checking pulses in wound care, podiatry and vascular practice. This configuration includes an 8 MHz waterproof probe for superficial vessels.
Key Features
- 8 MHz probe for high-resolution examination of superficial vessels
- Also accepts 4 MHz and 5 MHz waterproof interchangeable probes for deeper vessels
- Earphone socket and adjustable volume for quiet or shared listening
- Approx. 8 hours of continuous use in a compact, lightweight body
Configuration and Package Contents
- Sonotrax Vascular main unit
- 8 MHz waterproof vascular probe (continuous wave)
Technical Specifications
| Main unit size | Approx. 34 x 89 x 141 mm (1.3 x 3.5 x 5.6 in) |
| Weight | Under 300 g (10.6 oz) including battery |
| Probe cable | 2.5 m (8.2 ft) |
| Power | AA batteries (about 9 h standby on alkaline) |
| Continuous use | Approx. 8 hours |
| Auto power-off | After 1 minute without signal or operation |
| Audio | 1 W speaker output; earphone socket |
| Included probe | 8 MHz vascular, continuous wave |
| Display | None (audio only) |
Compatibility and Accessories
- Accepts Edan Sonotrax vascular probes: 4 MHz (12.01.14346), 5 MHz (02.01.104822), 8 MHz (12.01.14347)
- Edan 8 MHz waterproof vascular probe for Sonotrax (spare)
Documents and Warranty
- Edan Sonotrax Vascular product page
- Edan Sonotrax series brochure (PDF)
- Warranty: 2 years on the main unit; 1 year on accessories
Compare Models
| Model | Primary use | Included probe | Key difference |
| Edan Sonotrax Lite | Fetal | 3 MHz fetal | Entry-level, compact handheld |
| Edan Sonotrax Basic A | Fetal (vascular with 4 or 8 MHz probe) | 3 MHz fetal | Backlit LCD FHR display; real-time, average and manual modes |
| Sonotrax Vascular | Vascular | 8 MHz vascular | Audio only, no display |
Genuine Edan product, sold by The Hospital Equipment Company.
