Description

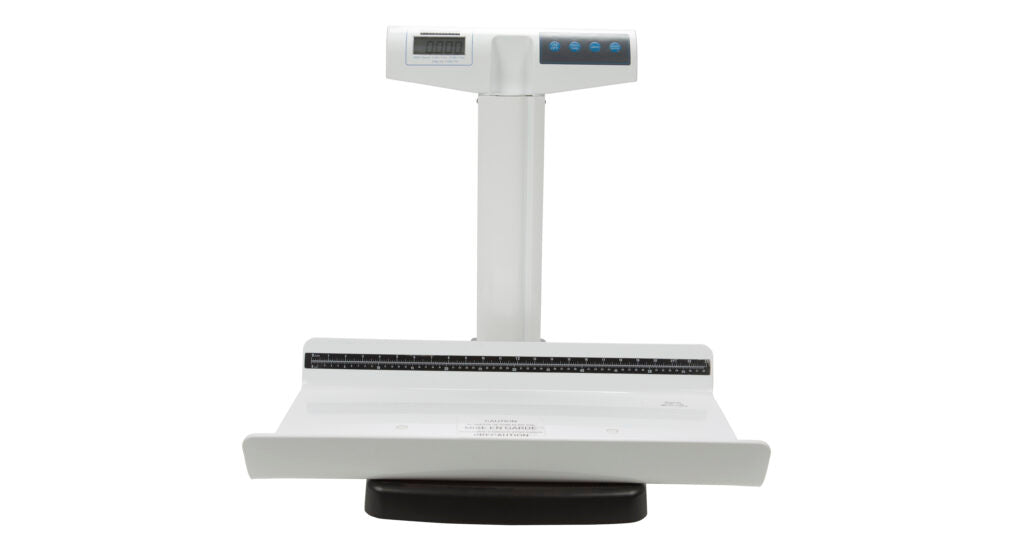

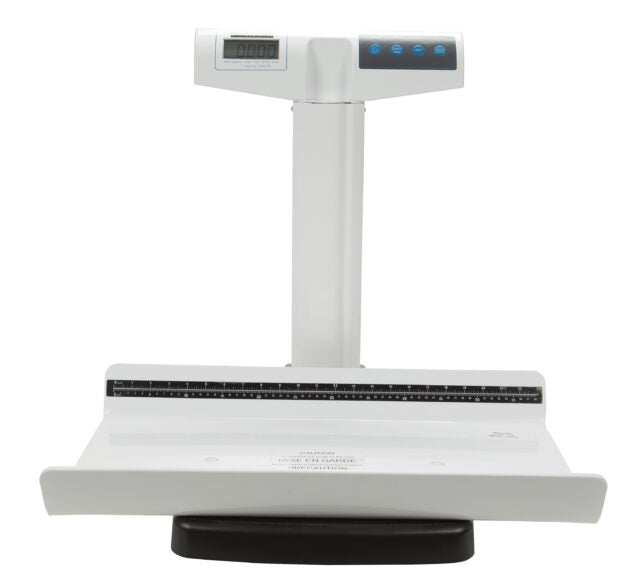

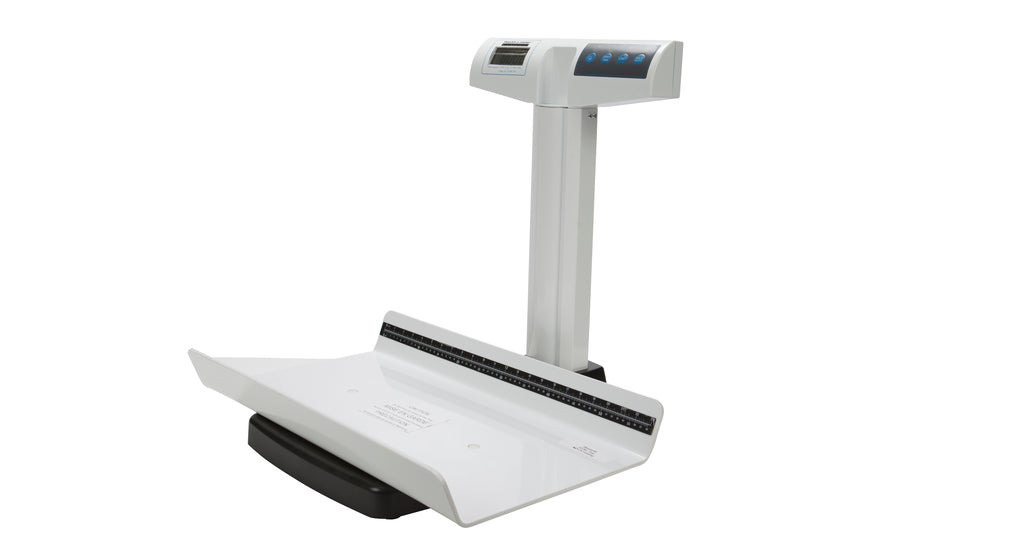

The Health o meter 522KL is a digital pediatric tray scale for busy pediatric offices and clinics that see infants regularly. It weighs up to 50 lb / 23 kg with 0.2 oz resolution to 20 lb, has a display head raised 17" above the base and an integrated measuring tape. Available lb/kg or kg-only, with optional mechanical or digital height rod.
Features
- Motion detection for accurate weighing of moving infants
- Display head 17" above the base for an unobstructed view
- Integrated measuring tape (0-23" / 0-58 cm)
- High resolution: 0.2 oz to 20 lb, 0.5 oz to 50 lb
- LB/KG conversion and lock-out, auto zero, tare, hold/release, reweigh, recall
- Optional Pelstar wireless EMR connectivity
- Battery powered (6 AA included) with optional ADPT31 adapter
Available Part Numbers
| Part # | Units | Height Rod |
|---|---|---|
| 522KL | lb/kg | None |
| 522KL-HR | lb/kg | Mechanical BabyHR |
| 522KL-EHR | lb/kg | Digital eBabyHR |
| 522KG | kg only | None |
| 522KG-HR | kg only | Mechanical BabyHR |
| 522KG-EHR | kg only | Digital eBabyHR |
Specifications
| Capacity | 50 lb / 23 kg |
|---|---|
| Resolution | 0-20 lb x 0.2 oz; 20-50 lb x 0.5 oz; 0-9 kg x 5 g; 9-23 kg x 10 g |
| Display | 1" LCD |
| Tray size | 24-1/8" x 14-1/2" x 2-5/8" (613 x 368 x 67 mm) |
| Product footprint | 24-1/8" x 21" x 23-1/8" (613 x 533 x 587 mm) |
| Product weight | 20 lb / 9 kg |
| Power | 6 AA batteries (included); optional ADPT31 adapter |
| Warranty | 2-year limited |
What's Included
- Scale
- 6 AA batteries
- Measuring tape
- Height rod and bracket on -HR/-EHR models
Extended Warranty
Add Health o meter ScaleSurance to extend coverage by two years; see the ScaleSurance Extended Warranty listing for the matching part number.
Genuine Health o meter Professional product, sold by The Hospital Equipment Company.
