Description

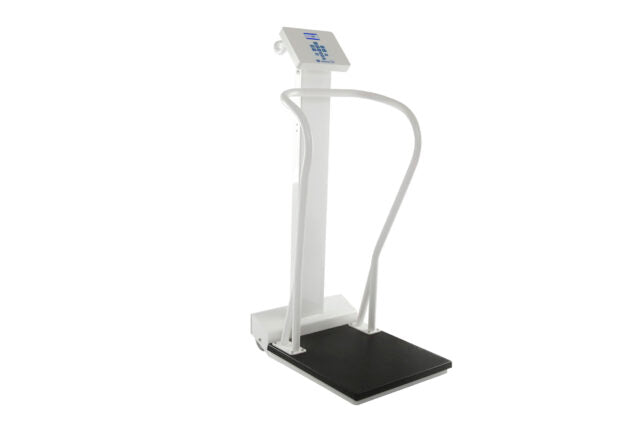

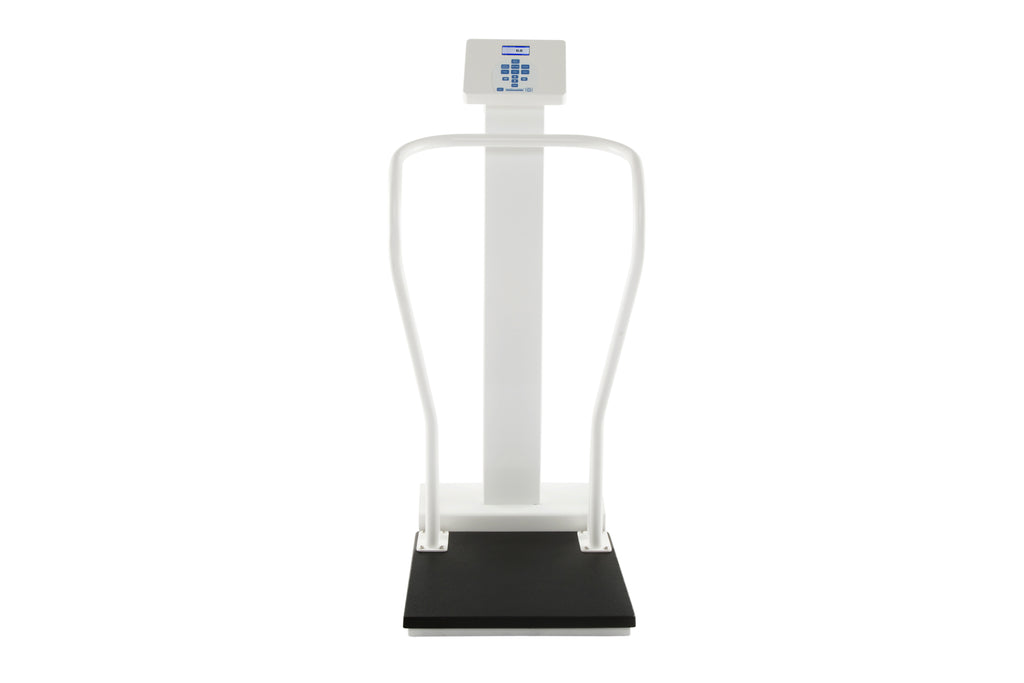

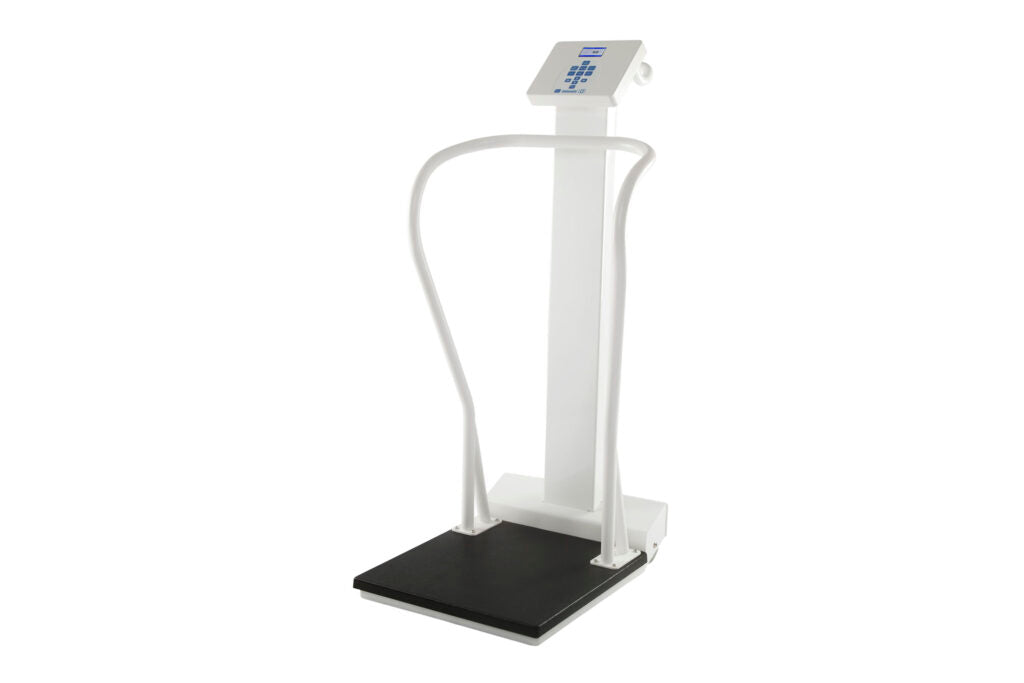

The Health o meter Professional 3105KL-AM is a heavy-duty antimicrobial platform scale from the Engineered with a Purpose acute care line, supporting patients up to 1000 lb / 454 kg. It features a low-profile platform, live handlebars, and antimicrobial protection on the head, keypad, handle, handrails, body and kickplate, with a design that eliminates dirt and contaminant traps. EMR connectivity is available via USB or Pelstar wireless.
Features
- Antimicrobial protection on head, keypad, transport handle, handrails, body and kickplate
- Design eliminates crevices where dirt and contaminants accumulate
- Live handlebars for patient safety; low-profile platform
- High-contrast color TFT-LCD screen with on-screen help menu
- EMR connectivity via USB or optional Pelstar wireless (built-in on -BT models)
- One-step calibration
- Everlock option permanently locks LB or KG
- 2 smooth-rolling wheels with grip handle for portability
- Optional digital (245EHR-3105) or mechanical (201HR-3105) height rod
Available Part Numbers
| Part # | Units | Connectivity |
|---|---|---|
| 3105KL-AM | lb/kg | Standard |
| 3105KL-AM-BT | lb/kg | Pelstar Wireless |
| 3105KG-AM | kg only | Standard |
| 3105KG-AM-BT | kg only | Pelstar Wireless |
Specifications
| Capacity | 1000 lb / 454 kg |
|---|---|
| Resolution | 0.2 lb / 0.1 kg |
| Display | 2 3/4" x 1 1/2" high-contrast color TFT-LCD, 3/8" digits |
| Platform Size | 19 3/4" x 21 1/4" x 2 1/8" (502 x 540 x 54 mm) |
| Product Footprint | 23 1/4" x 28" x 52 1/4" (591 x 711 x 1327 mm) |
| Product Weight | 86 lb / 39 kg |
| Power | 6 D batteries included; 100-240V adapter (ADPT30) sold separately |
| Connectivity | USB, optional Pelstar wireless |
| Warranty | 2-year limited |
What's Included
- Scale with live handlebars
- 6 D batteries
Extended Warranty
Add Health o meter ScaleSurance to extend coverage by two years; see the ScaleSurance Extended Warranty listing for the matching part number.
Genuine Health o meter Professional product, sold by The Hospital Equipment Company.
