Description
Certified ADA Compliant: Corada Platinum Certified
The 2920KL-AM meets the MDE standards for wheelchair scales: a platform of at least 32" x 40", 2" edge protection on the platform and ramps, and a 1:8 running slope. Health o meter Professional is the only manufacturer with a full portfolio of independently certified ADA compliant scales. Certified is not the same as "ADA-friendly," and that difference matters in audits, inspections and accreditation reviews.
U.S. Access Board MDE standards: key deadlines
- New equipment bought since July 8, 2024 (HHS-funded providers) or October 8, 2024 (state and local governments) must meet the standards until the facility reaches its required share.
- By July 8, 2026 (HHS) and August 9, 2026 (DOJ), each facility needs at least one accessible exam table or chair and one accessible weight scale.
- Ongoing, at least 10% of each type of equipment, and no fewer than one unit, must be accessible (20% for mobility-focused rehabilitation facilities).
Learn more about the MDE standards | Shop all ADA compliant scales

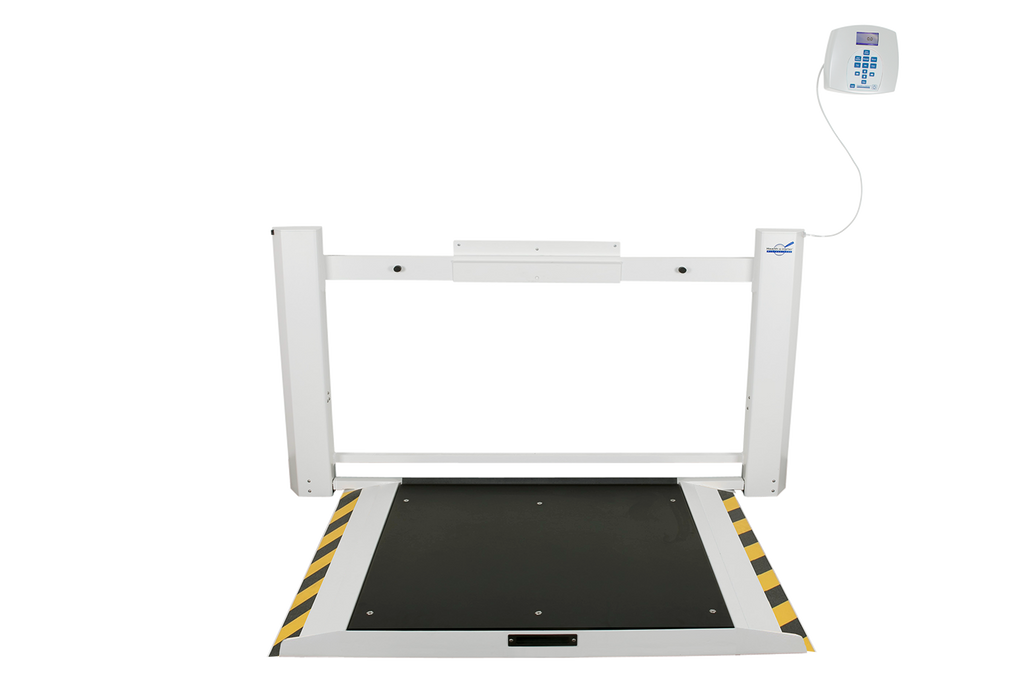

The Health o meter 2920KL-AM is an ADA-compliant, antimicrobial wall-mounted fold-up wheelchair scale with a 1000 lb (454 kg) capacity and a spacious 40" x 32" platform. It is Platinum certified by Corada to US Access Board standards for accessible medical diagnostic equipment and folds to about 4.75" from the wall.
Features
- ADA compliant; Platinum certified by Corada to US Access Board MDE standards
- 1000 lb / 454 kg capacity with 0.2 lb / 0.1 kg resolution
- Spacious 40" x 32" platform fits most wheelchairs
- 2" edge protection on platform and ramps; 1:8 running slope
- Wall-mounted, folds to about 4.75" deep
- Display can be mounted on either side
- Antimicrobial surface protection
- Raised platform edge, recessed handle, no pinch points
- EMR connectivity via USB or optional Pelstar wireless
Available Part Numbers
| Part # | Units |
|---|---|
| 2920KL-AM | lb/kg |
| 2920KG-AM | kg only |
Specifications
| Capacity | 1000 lb / 454 kg |
|---|---|
| Resolution | 0.2 lb / 0.1 kg |
| Display | 2.75" x 1.5" high-contrast color TFT-LCD, 3/8" digits |
| Platform Size | 40" W x 32" D x 1.6" H (1016 x 819 x 38 mm) |
| Ramps | 12.25" W x 32" D (318 x 813 mm), 1:8 slope |
| Unfolded Footprint | 77.5" W x 37.875" D x 37" H (1968 x 962 x 940 mm) |
| Folded Footprint | 77.5" W x 4.75" D x 37" H (1968 x 114 x 940 mm) |
| Product Weight | 118 lb / 53.5 kg |
| Power | 100-240V adapter (ADPT30) included; 6 D batteries optional |
| Connectivity | USB; optional Pelstar wireless |
| Functions | LB/KG conversion, LB/KG lock-out, BMI, zero, tare, pre-tare, hold/release, reweigh, recall, auto zero, auto off, time/date, variable auto-off time, audible/mute sound option, parent/child weighing, Everlock |
| Certifications | ADA compliant, Corada Platinum |
| Warranty | 2-year limited manufacturer warranty |
What's Included
- Wall-mounted fold-up ADA scale
- Display
- 100-240V power adapter (ADPT30)
Extended Warranty
Add Health o meter ScaleSurance to extend coverage by two years; see the ScaleSurance Extended Warranty listing for the matching part number.
Genuine Health o meter Professional product, sold by The Hospital Equipment Company.
