Description
Certified ADA Compliant: Corada Platinum Certified
The 2620KL meets the MDE standards for wheelchair scales: a platform of at least 32" x 40", 2" edge protection on the platform and ramps, and a 1:8 running slope. Health o meter Professional is the only manufacturer with a full portfolio of independently certified ADA compliant scales. Certified is not the same as "ADA-friendly," and that difference matters in audits, inspections and accreditation reviews.
U.S. Access Board MDE standards: key deadlines
- New equipment bought since July 8, 2024 (HHS-funded providers) or October 8, 2024 (state and local governments) must meet the standards until the facility reaches its required share.
- By July 8, 2026 (HHS) and August 9, 2026 (DOJ), each facility needs at least one accessible exam table or chair and one accessible weight scale.
- Ongoing, at least 10% of each type of equipment, and no fewer than one unit, must be accessible (20% for mobility-focused rehabilitation facilities).
Learn more about the MDE standards | Shop all ADA compliant scales

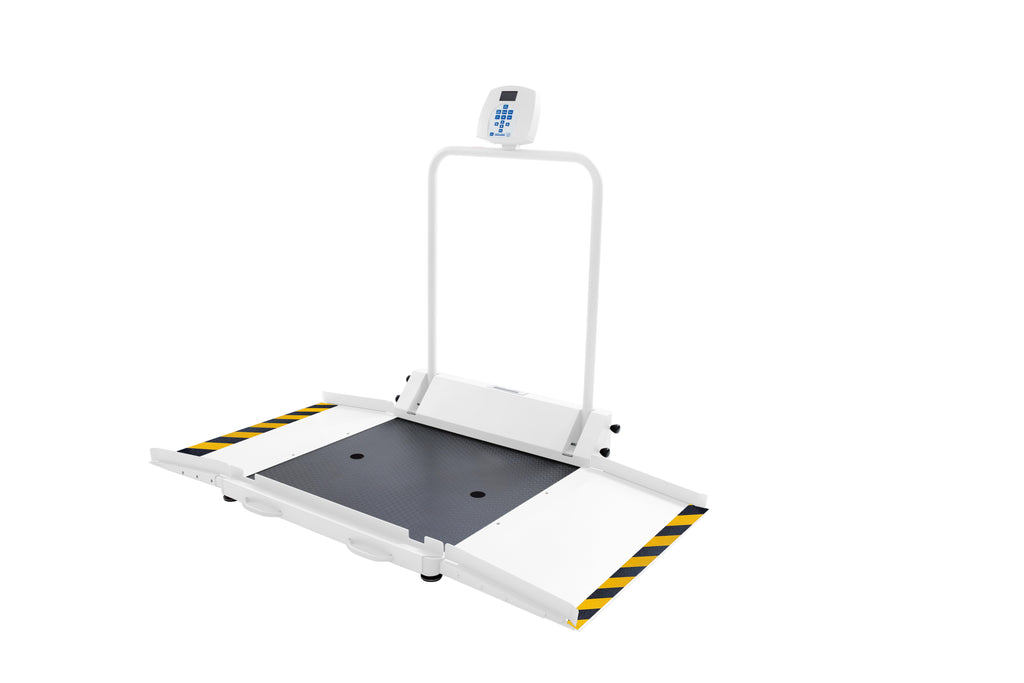

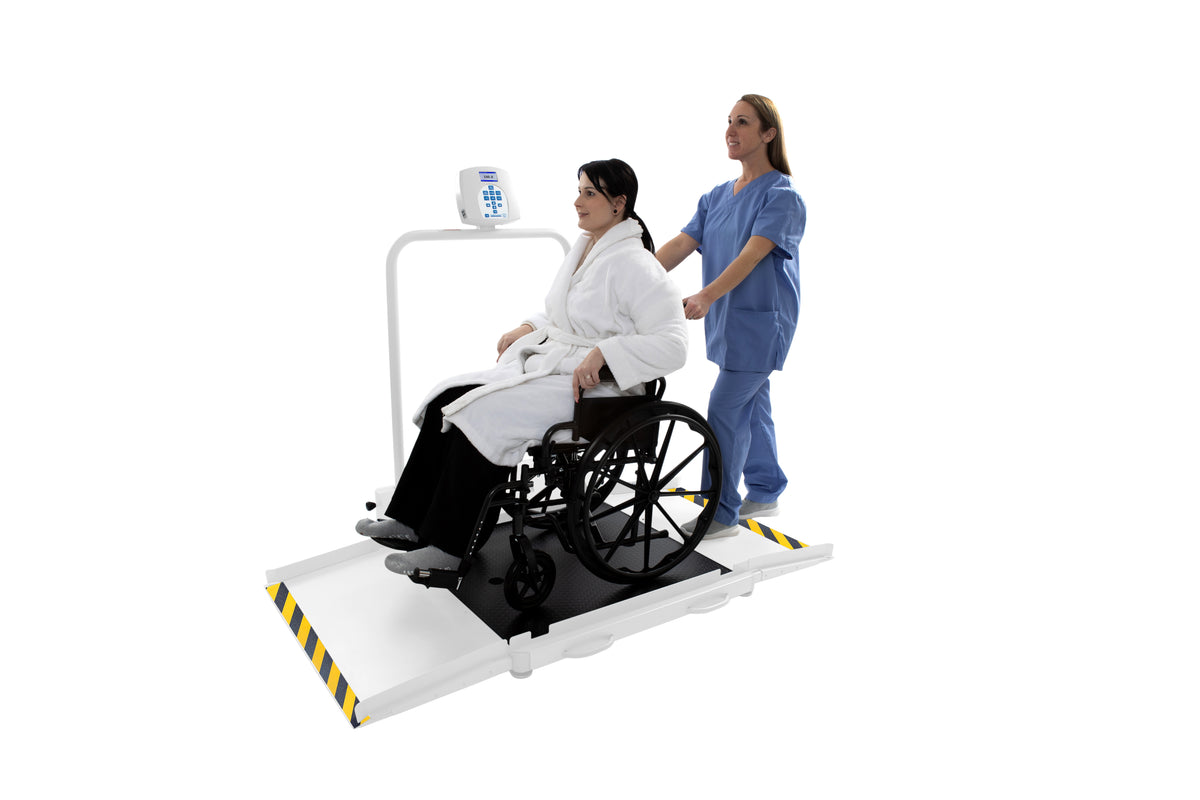

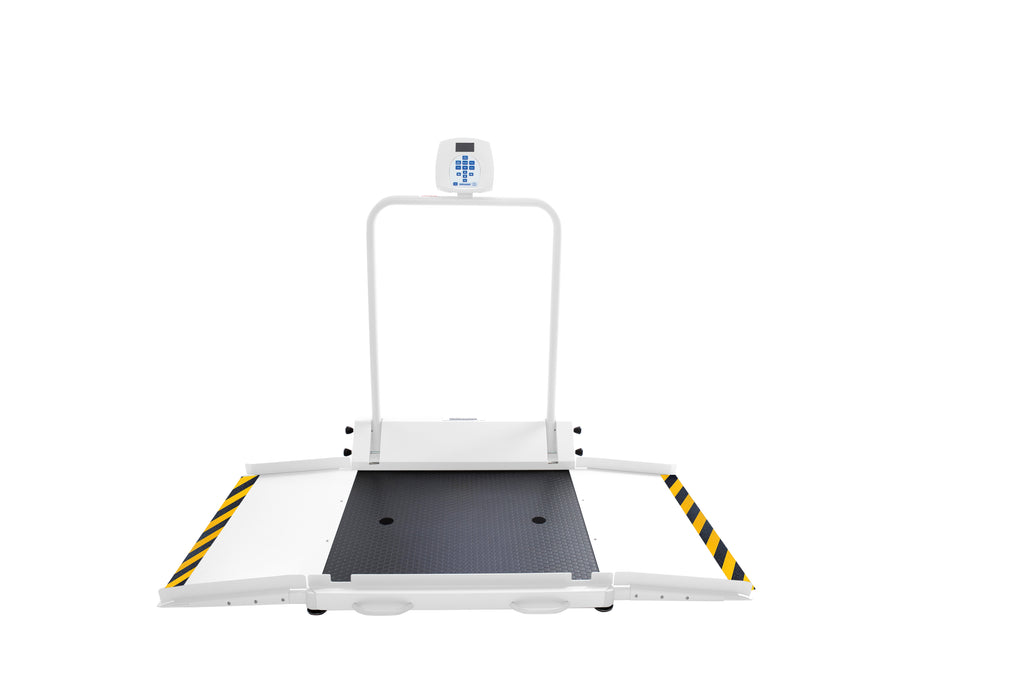

The Health o meter 2620KL is an ADA-compliant digital wheelchair scale with a 1000 lb (454 kg) capacity, an extra-large 40" x 32.25" platform with 2" edge guards, and dual ramps at a 1:8 slope with anti-slip caution tape. It is Platinum certified by Corada, folds for storage, and rolls on built-in casters.
Features
- ADA compliant; Platinum certified by Corada to US Access Board MDE standards
- 1000 lb / 454 kg capacity with 0.2 lb / 0.1 kg resolution
- Extra-large 40" x 32.25" low-profile platform with 2" edge protection
- Dual 16"-deep ramps with 1:8 slope and anti-slip caution tape

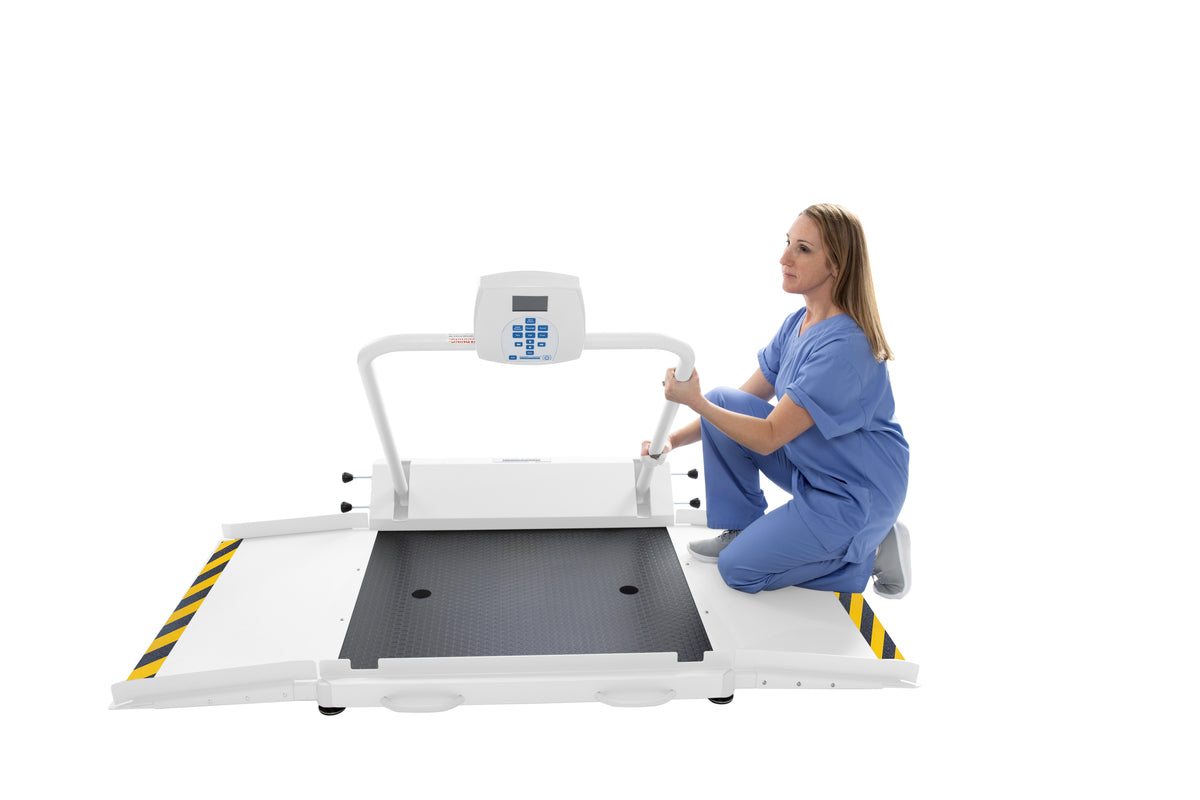

- Foldable platform with built-in casters for transport and storage
- 180° swiveling high-contrast color TFT-LCD display
- Antimicrobial keypad
- EMR connectivity via USB or optional Pelstar wireless
- Optional 2622HB ADA handrail kit
Available Part Numbers
| Part # | Units |
|---|---|
| 2620KL | lb/kg |
| 2620KG | kg only |
Specifications
| Capacity | 1000 lb / 454 kg |
|---|---|
| Resolution | 0.2 lb / 0.1 kg |
| Display | 2.75" x 1.5" high-contrast color TFT-LCD, 3/8" digits, 180° swivel |
| Platform Size | 40" W x 32.25" D x 1.875" H (1016 x 819 x 48 mm) |
| Ramps | Dual, each 32.25" x 16" (819 x 406 mm), 1:8 slope |
| Edge Guard | 40" W x 0.125" D x 2" H |
| Operating Footprint | 71.5" L x 45.125" W x 48.75" H (1816 x 1147 x 1238 mm) |
| Folded Footprint | 71.5" x 9.5" x 53" (1816 x 241 x 1346 mm) |
| Product Weight | 126 lb / 57 kg |
| Power | 100-240V adapter (ADPT30) included; 6 D batteries not included |
| Connectivity | USB; optional Pelstar wireless |
| Portability | 4 wheels (2 casters) |
| Functions | LB/KG conversion, LB/KG lock-out, BMI, zero, tare, pre-tare, hold/release, reweigh, recall, auto zero, auto off, time/date, variable auto-off time, audible/mute sound option, parent/child weighing, Everlock |
| Certifications | ADA compliant, Corada Platinum |
| Warranty | 2-year limited manufacturer warranty |
What's Included
- ADA wheelchair scale with dual ramps and edge guards
- 100-240V power adapter (ADPT30)
Extended Warranty
Add Health o meter ScaleSurance to extend coverage by two years; see the ScaleSurance Extended Warranty listing for the matching part number.
Genuine Health o meter Professional product, sold by The Hospital Equipment Company.
