Description

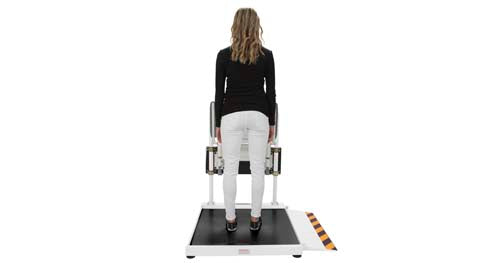

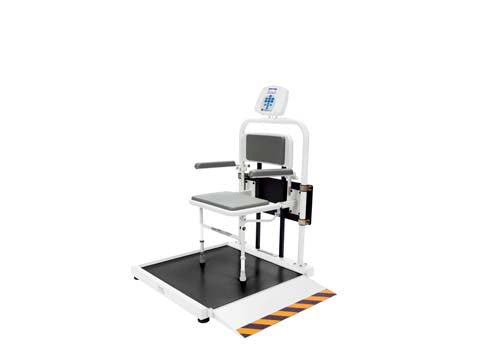

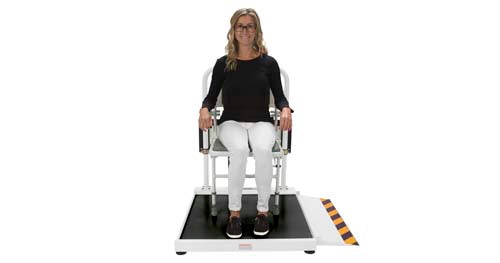

The Health o meter 2500CKL is the 2500KL single-ramp digital wheelchair scale fitted with a fold-away seat, so the same 1000 lb (454 kg) scale can weigh wheelchair users or patients who need to sit. The seat (419 lb / 190 kg capacity) folds out of the way when not in use, and the scale offers a swivel display, antimicrobial keypad, and USB or optional Pelstar wireless EMR connectivity.
Features
- 1000 lb / 454 kg platform capacity; fold-away seat rated to 419 lb / 190 kg

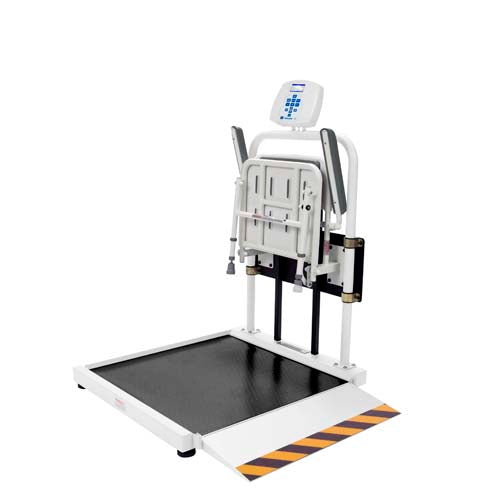

- Fold-away seat lets mobility-impaired patients be weighed seated, then folds away for wheelchair use
- Single-ramp platform sized for standard wheelchairs
- Swivel display head rotates and pivots
- Antimicrobial keypad protection
- Two wheels for mobility
- EMR connectivity via USB or built-in Pelstar wireless (-BT models)
- Everlock permanent LB/KG lock, BMI, tare/pre-tare
Available Part Numbers
| Part # | Units | Connectivity |
|---|---|---|
| 2500CKL | lb/kg | Standard |
| 2500CKL-BT | lb/kg | Pelstar Wireless |
| 2500CKG | kg only | Standard |
| 2500CKG-BT | kg only | Pelstar Wireless |
Specifications
| Capacity | 1000 lb / 454 kg |
|---|---|
| Seat Capacity | 419 lb / 190 kg |
| Resolution | 0.2 lb / 0.1 kg |
| Display | 2.75" x 1.5" high-contrast color TFT-LCD, 3/8" digits |
| Platform Size | 29.375" x 28.25" x 2.375" (746 x 718 x 60 mm) |
| Ramp Size | 28.25" x 9.875" (714 x 248 mm) |
| Seat Size | 18" x 15" x 18.5" (457 x 381 x 470 mm) |
| Product Footprint | 40.25" W x 34.5" D x 45.5" H (1022 x 876 x 1156 mm) |
| Product Weight | 121 lb / 55 kg |
| Power | 100-240V adapter (ADPT30) included; 6 D batteries not included |
| Connectivity | USB; optional built-in Pelstar wireless (-BT) |
| Portability | 2 wheels |
| Functions | LB/KG conversion, LB/KG lock-out, BMI, zero, tare, pre-tare, hold/release, reweigh, recall, auto zero, auto off, time/date, variable auto-off time, audible/mute sound option, parent/child weighing, Everlock |
| Warranty | 2-year limited manufacturer warranty |
What's Included
- Wheelchair ramp scale
- Fold-away seat (ships in a separate box)
- 100-240V power adapter (ADPT30)
Extended Warranty
Add Health o meter ScaleSurance to extend coverage by two years; see the ScaleSurance Extended Warranty listing for the matching part number.
Genuine Health o meter Professional product, sold by The Hospital Equipment Company.
