Description
Overview

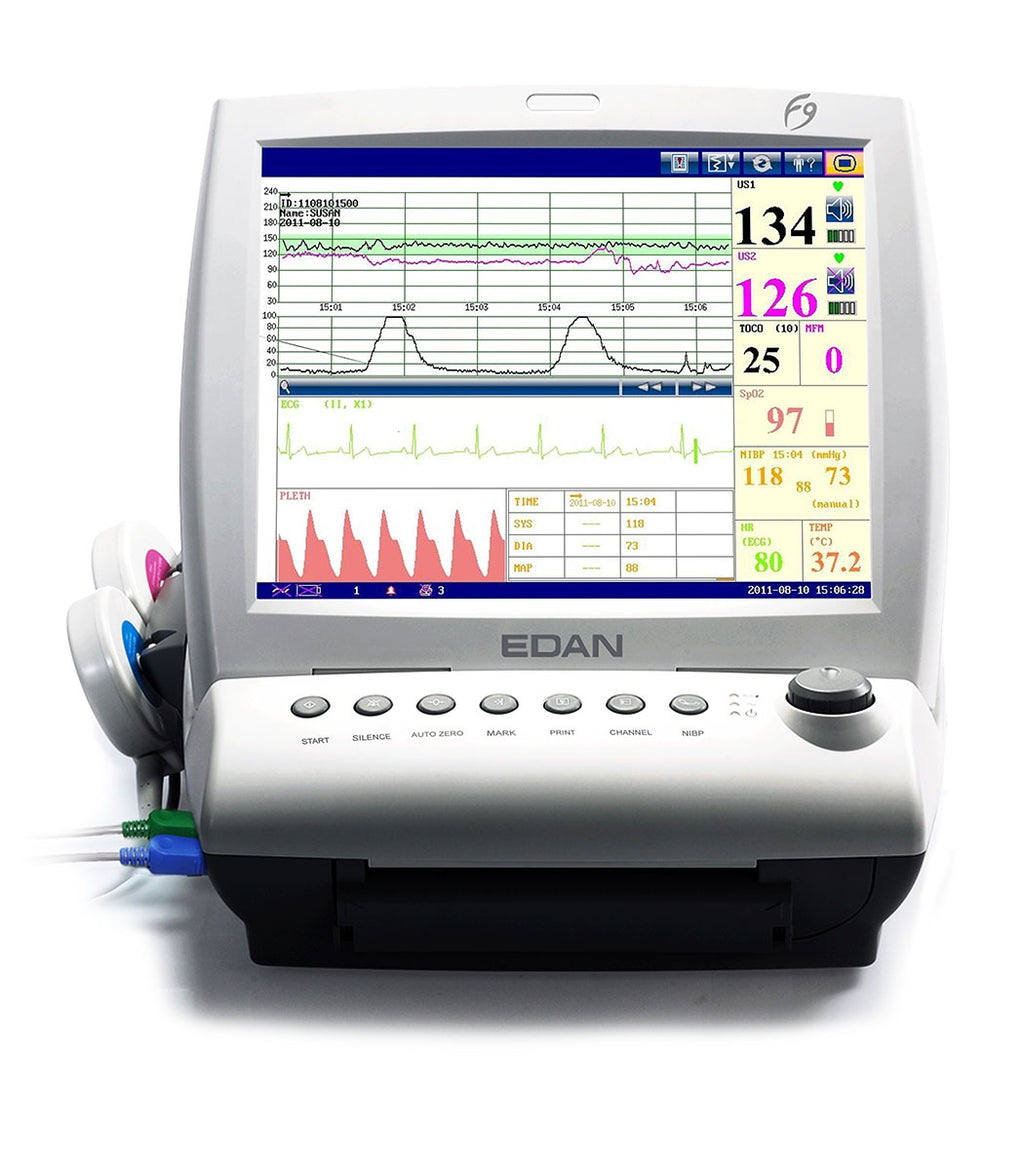

The Edan F9 Express is a fetal and maternal monitor with a 12.1-inch color touch screen and built-in thermal recorder, for labor & delivery units. It adds internal DECG and IUP monitoring and maternal vital signs to twin external fetal monitoring.
Key Features
- Fetal parameters: twin FHR (ultrasound), TOCO, AFM, fetal movement and event marking; internal DECG and IUP
- Maternal parameters: ECG/heart rate, NIBP, SpO2/pulse rate and temperature in one unit
- Waterproof 12-crystal pulsed-wave Doppler FHR transducer; Signals Overlap Verification for twins with +20/−20 offset printing
- 24-hour waveform playback; real-time printing at 1, 2 or 3 cm/min and fast printing of stored traces
- Optional built-in wireless module for Edan central station / FTS-3 telemetry; PC data transfer via Insight software or CNS Lite
Configuration and Package Contents
- F9 Express main unit with standard accessories:
- FHR probes, qty 2 (02.01.107705015)
- TOCO probe with DECG and IUP function (02.01.210260)
- Event marker (02.01.210095)
- Belts, qty 3 (933862)
- Fixed ECG cable with 3 lead wires (01.57.471095-10) and adult disposable snap electrodes (T716-50)
- Adult reusable SpO2 sensor (SH1.Lemo)
- Adult NIBP cuff (CUFF.E9) with NIBP tube and connector (01.59.036118-11)
- Skin temperature probe (01.15.040187)
- DECG cable (01.13.036358); IUP cable and commutator cable (01.13.037841)
- Rechargeable lithium-ion battery (21.21.064150)
- Recording paper, 90 mm × 152 mm × 150 pages (Fetal-P)
- US power cord (01.13.036106), Ethernet cable and 250 g ultrasound gel
- Built-in wireless for central station connection is optional
Technical Specifications
| Display | 12.1" 800 × 600 color LCD touch screen |
| Ultrasound | Pulsed Doppler, 1.0 MHz ±10%; FHR 50–240 bpm (±2 bpm) |
| TOCO | 0–100 |
| DECG | 30–240 bpm (±1 bpm) |
| IUP | 0–100 mmHg (±3 mmHg) |
| NIBP | Oscillometric; systolic 40–270 mmHg, diastolic 10–215 mmHg |
| SpO2 | 50–100%; ±2% (90–100%) |
| Temperature | 32–122 °F (0–50 °C), ±0.3 °C |
| Paper | Z-fold thermal, 150/152 mm (US and international) |
| Battery | Li-ion, 14.8 V |
| Dimensions | 13.7 × 13.0 × 5.0 in (347 × 330 × 126 mm) |
| Weight | About 13.9 lb (6.3 kg) |
Compatibility and Accessories
- Edan central station / FTS-3 telemetry (with optional wireless module); Insight software or CNS Lite for PC data transfer
- Edan FHR ultrasound transducer, pink (replacement)
- Edan remote event marker (02.01.210095)
- Edan 3-lead integrated ECG cable (01.57.471095-10)
- Edan SH1 adult SpO2 finger sensor, Lemo (SH1.Lemo)
- Edan NIBP extension tube with connector (01.59.036118-11)
Documents and Warranty
- Edan F9 Express product page
- Edan F9 Express brochure (PDF)
- Edan USA warranty
- Warranty: 2-year warranty on the main unit; 1-year warranty on accessories
Genuine Edan product, sold by The Hospital Equipment Company.
