Description

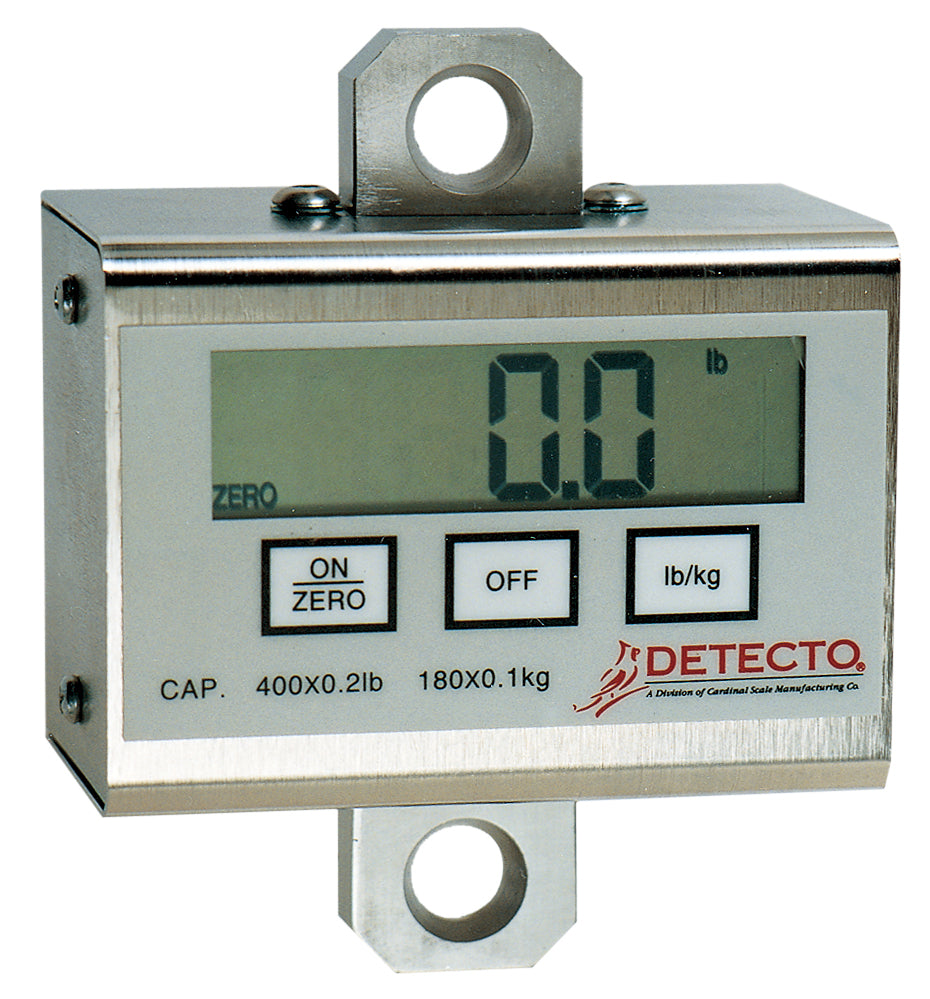

The Detecto PL Series patient lift scale weighs a person suspended from a portable patient lift, giving hospitals, long-term care facilities and home healthcare providers an accurate weight without an additional transfer. It installs on the lift mechanism and is quickly learned by staff.
The scale runs on a single 9V battery with automatic shut-off, and its lock-in weight feature stores the last reading when the unit is turned off.
Key Features
- 400 lb or 600 lb capacities with 0.2 lb / 0.1 kg resolution
- Suspended weighing from a portable patient lift
- Simple three-key membrane keypad: ON/ZERO, OFF and LB/KG
- 0.75 in (19 mm) high LCD readouts
- Lock-in weight stores the last reading at power-off
- Battery operated with automatic shut-off
- Supplied with two spring "O" rings
Specifications
| Capacity | PL400: 400 lb x 0.2 lb / 180 kg x 0.1 kg PL600: 600 lb x 0.2 lb / 270 kg x 0.1 kg |
|---|---|
| Display | LCD digital, 0.75 in / 19 mm high |
| Power | One 9V battery (not included), auto shut-off |
| Dimensions | 4.175 in W x 2.175 in D x 5 in H |
| Mounting Holes | 0.5 in diameter, 4 in to center |
| Operating Temperature | 50 to 104 °F / 10 to 40.5 °C |
| Shipping Weight | 2 lb |
Options
- 400 lb / 180 kg (PL400): For standard patient lifts.
- 600 lb / 270 kg (PL600): Higher capacity for bariatric patients and heavy-duty lifts. Choose a capacity that does not exceed the rated capacity of your lift.
