Description
The Detecto eye-level physician's mechanical beam scale has been a fixture in medical offices since 1900. This weigh beam physician scale requires no power, delivers dependable readings with a die-cast beam readable from either side, and is available with a height rod, wheels, and hand post to suit clinics, hospitals, and long-term care facilities.
Key Features
- No power required: simple, reliable mechanical operation
- Easy-to-read eye-level weigh beam, readable from either side
- Sturdy steel construction with electrostatic powder paint finish
- Available in lb, kg, or dual lb/kg capacities
- Optional height rod measures 24-84 in / 60-212 cm
- Height rod, wheels, and hand post combinations available
Specifications
| Capacity | 450 lb x 4 oz, 200 kg x 100 g, or 440 lb x 4 oz / 200 kg x 100 g |
| Platform Size | 14.75 in x 10.75 in / 37.5 cm x 27.3 cm |
| Height Rod Range (select models) | 24-84 in / 60-212 cm |
| Height Graduation (select models) | 0.125 in / 0.1 cm |
| Overall Width | 17.5 in / 44.5 cm |
| Overall Height | 58.25 in / 148 cm |
| Overall Depth (with wheels) | 23.25 in / 59 cm |
| Power | None required |
| Construction | Mild steel with powder coat paint finish |
Options

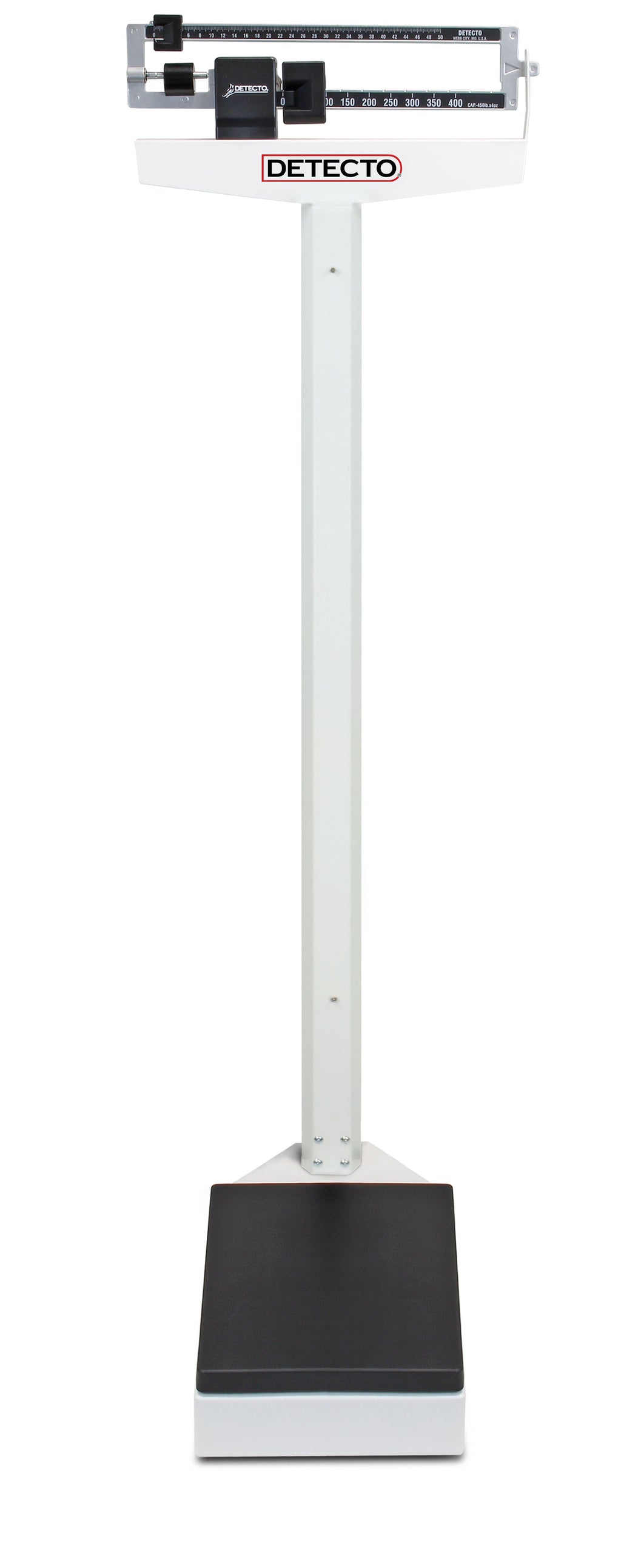

- Standard (437, 2371, 337): weigh beam scale without height rod.

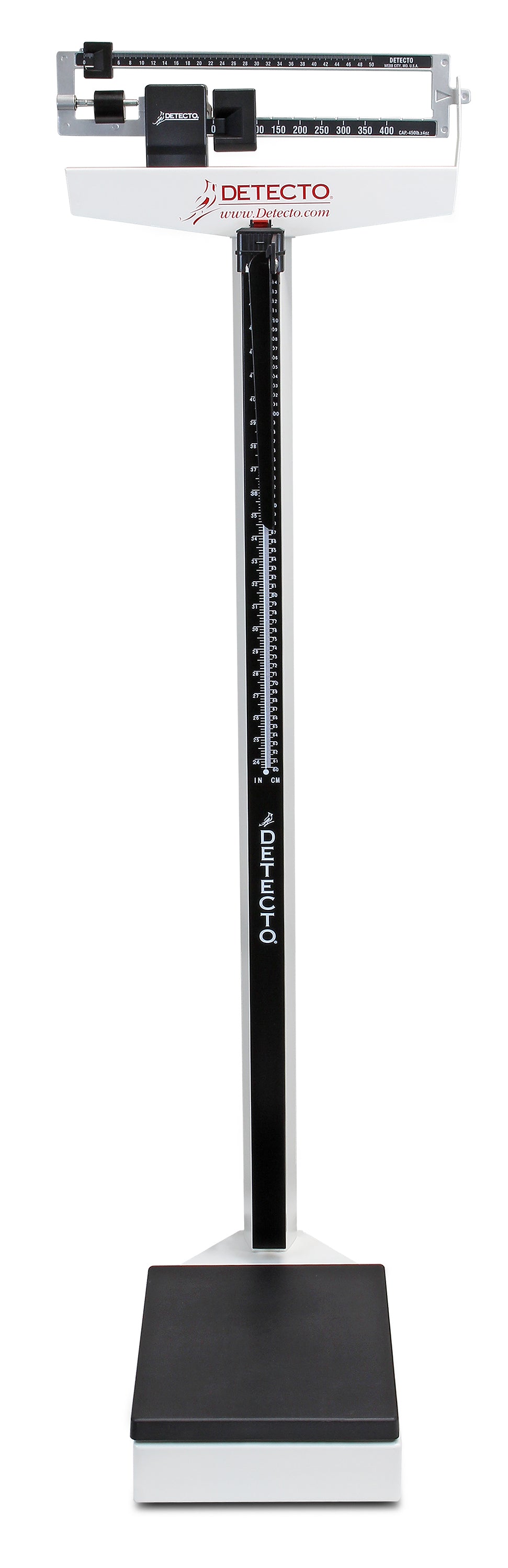

- Height Rod (439, 2391, 339): adds a height rod for measuring patient height.

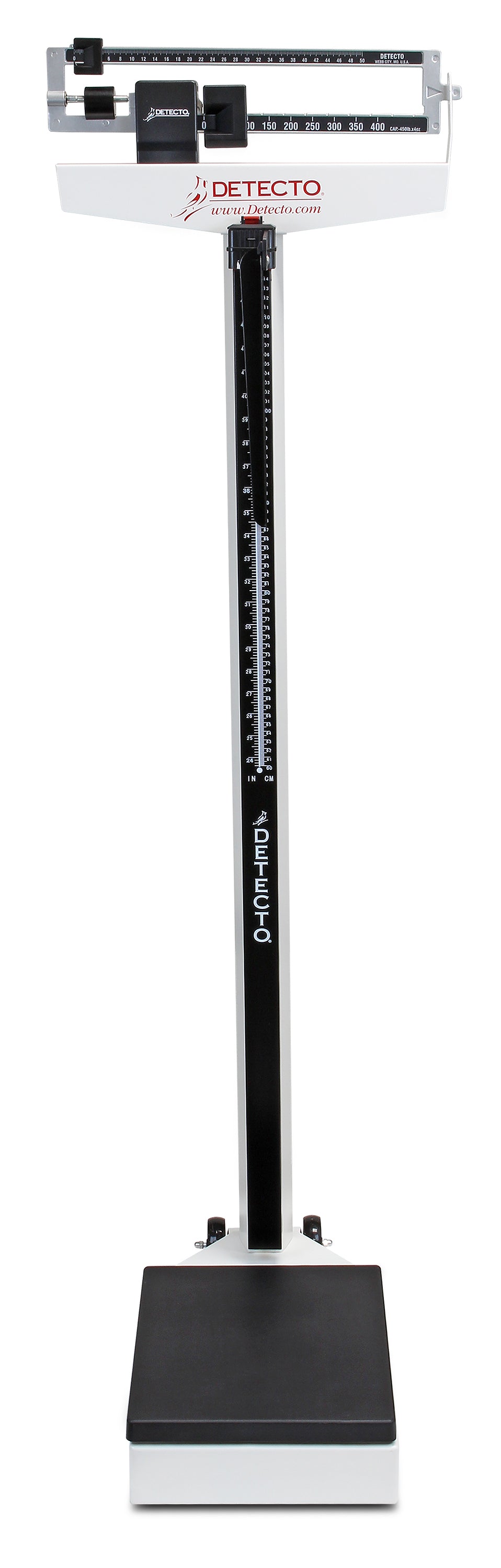

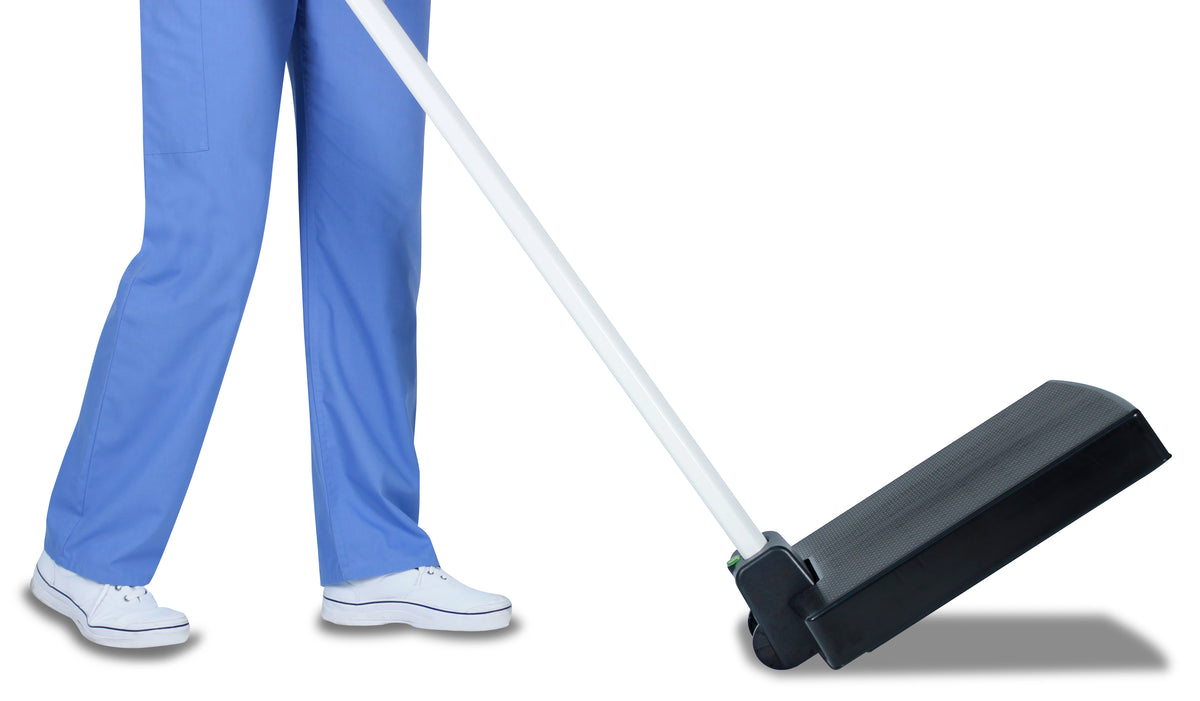

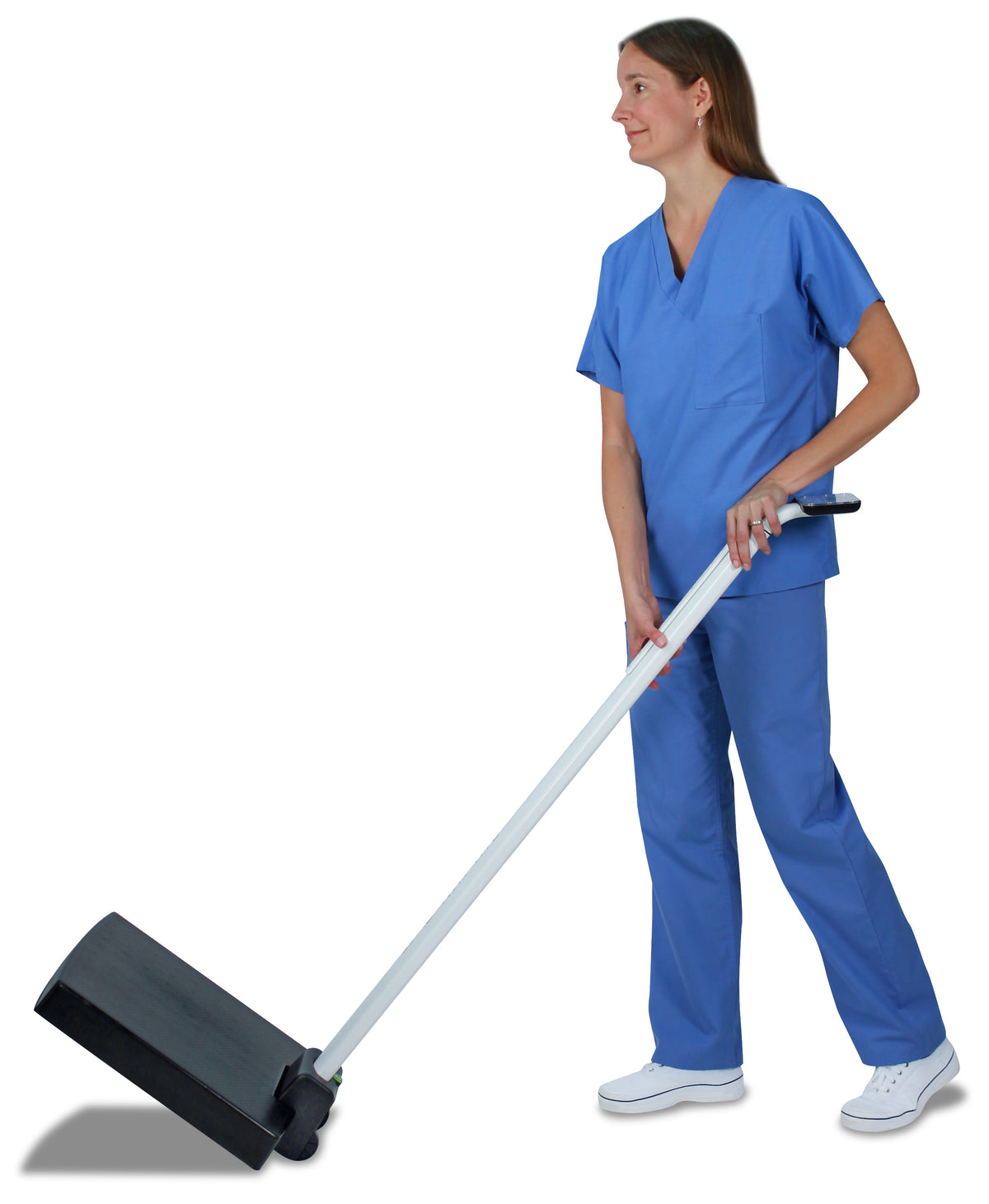

- Height Rod & Wheels (438, 2381, 338): adds integral wheels for moving the scale between exam rooms.

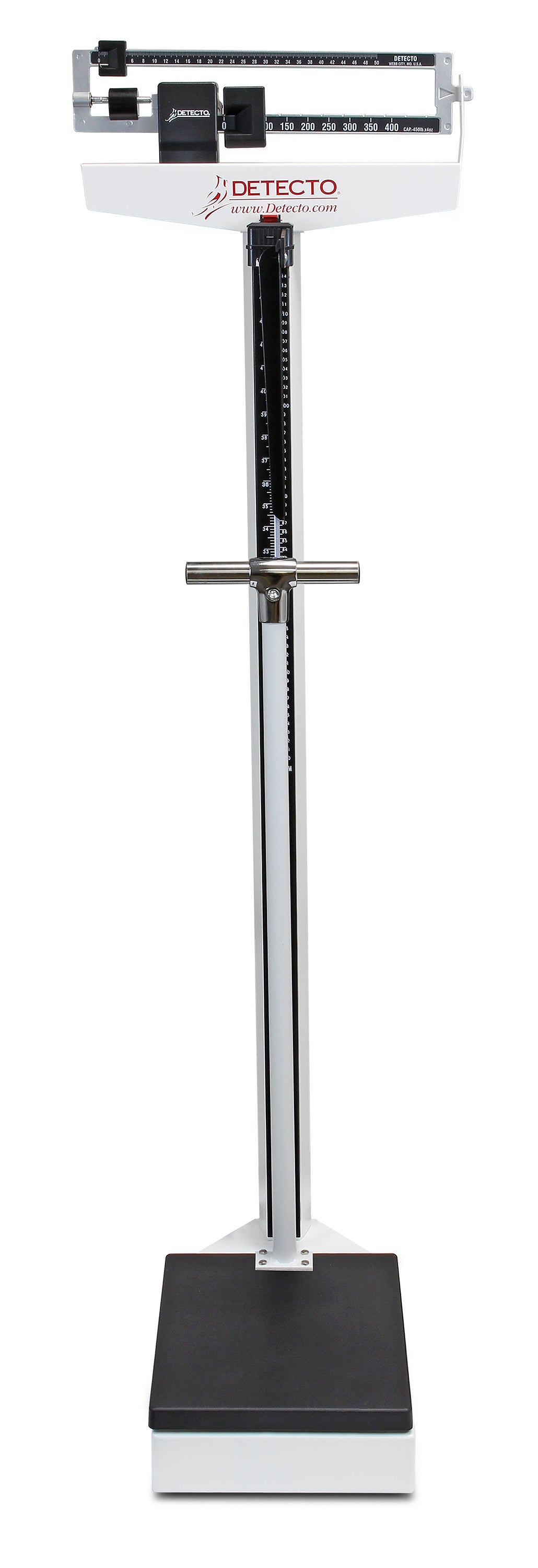

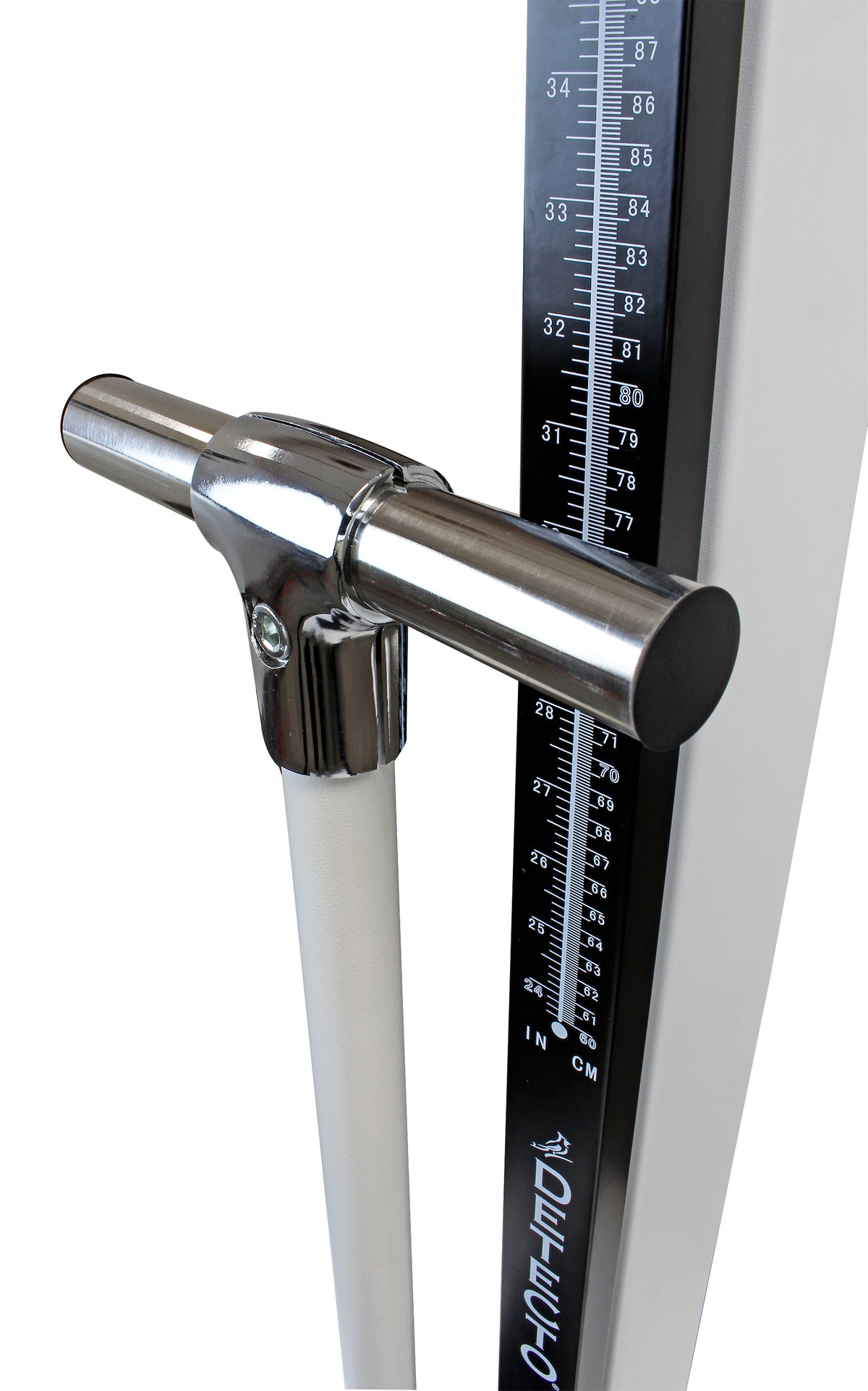

- Height Rod & Hand Post (449, 2491, 349): adds a hand post for patient support while weighing.

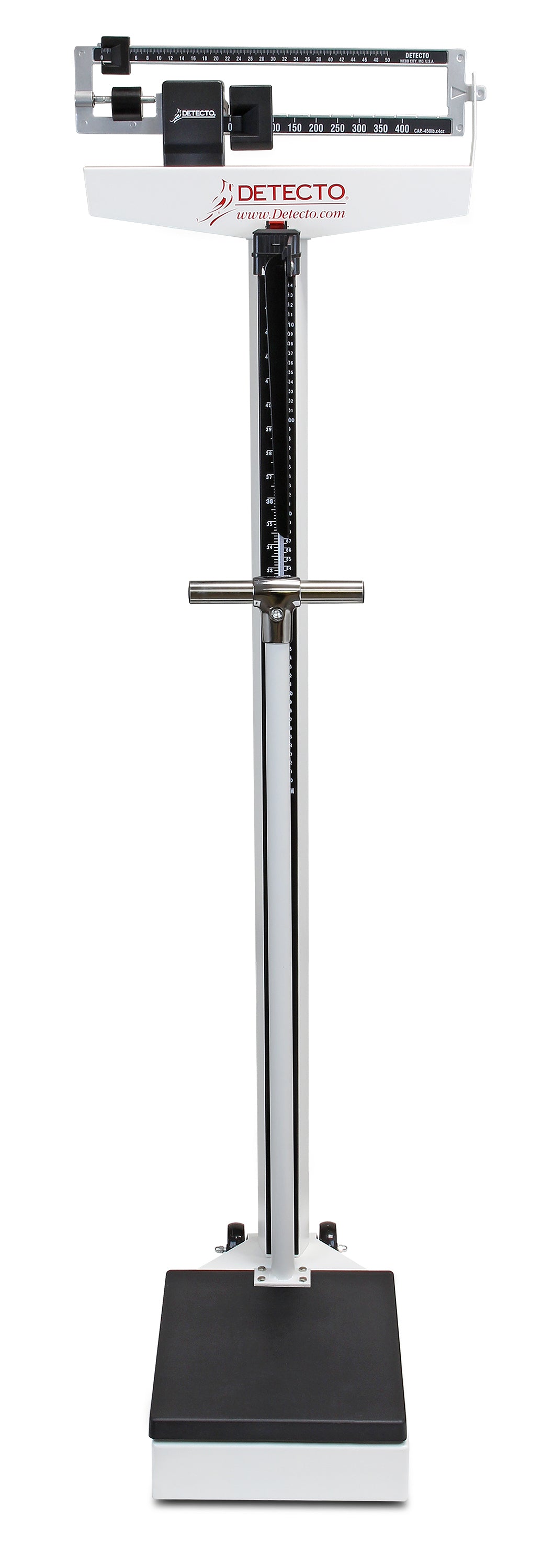

- Height Rod, Wheels & Hand Post (448): combines all three accessories.
- Capacity: 450 lb x 4 oz, 200 kg x 100 g, or dual 440 lb / 200 kg beam.
