Description
The Detecto MedVue MV1 medical weight analyzer is the digital indicator used on select Detecto clinical scales, including wheelchair, bariatric and stretcher scales. It displays weight, height and BMI simultaneously and is ready to connect to EMR/EHR systems.

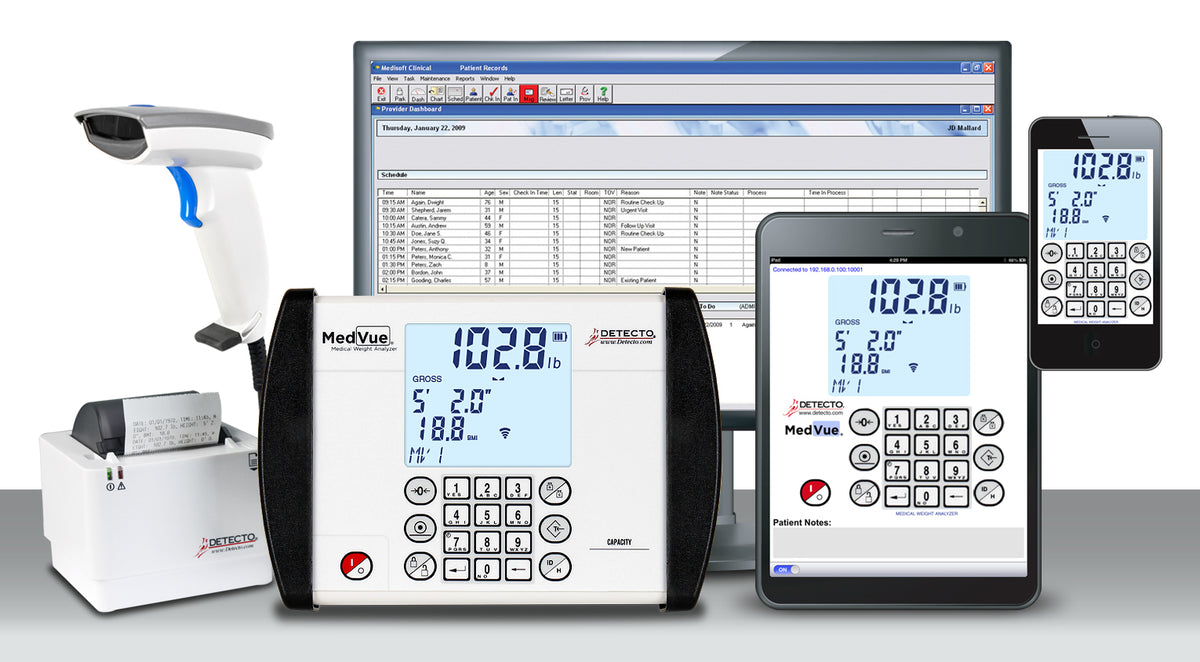

Connectivity options: MV1 includes RS232 and USB. MV1C adds Wi-Fi and Bluetooth wireless connectivity.
Key Features

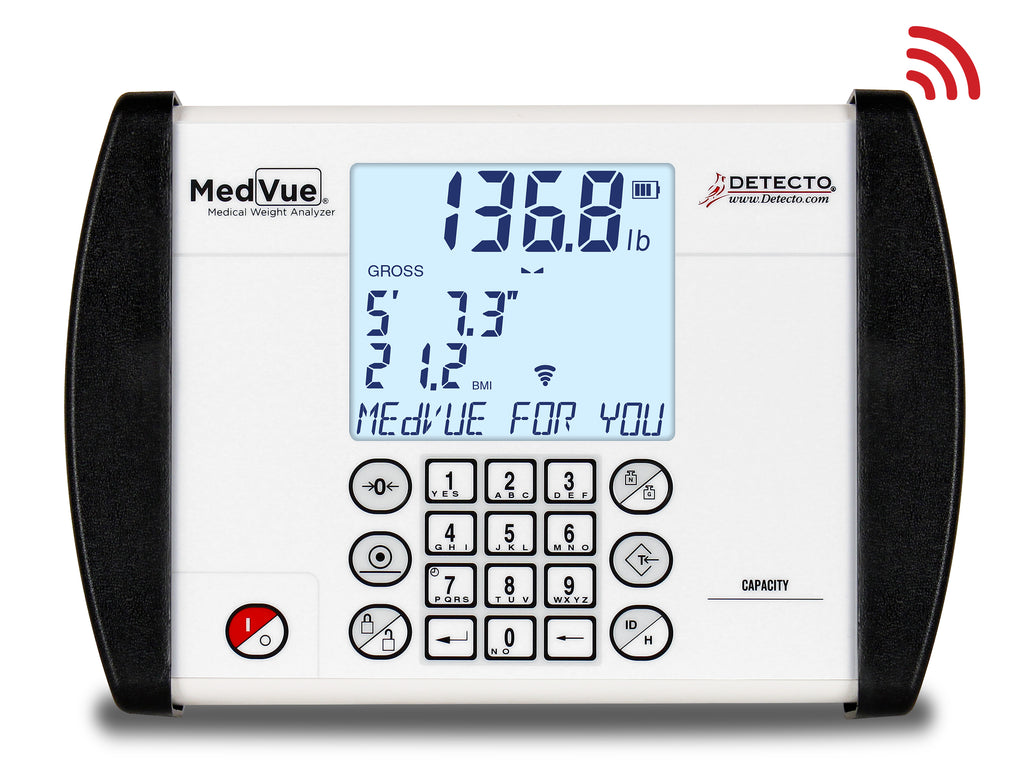

- Weight, height and BMI displayed at the same time on a backlit blue LCD
- Nearly 1 in high weight digits and 14-digit patient ID
- 99 stored tare weights; units lockable to lb or kg

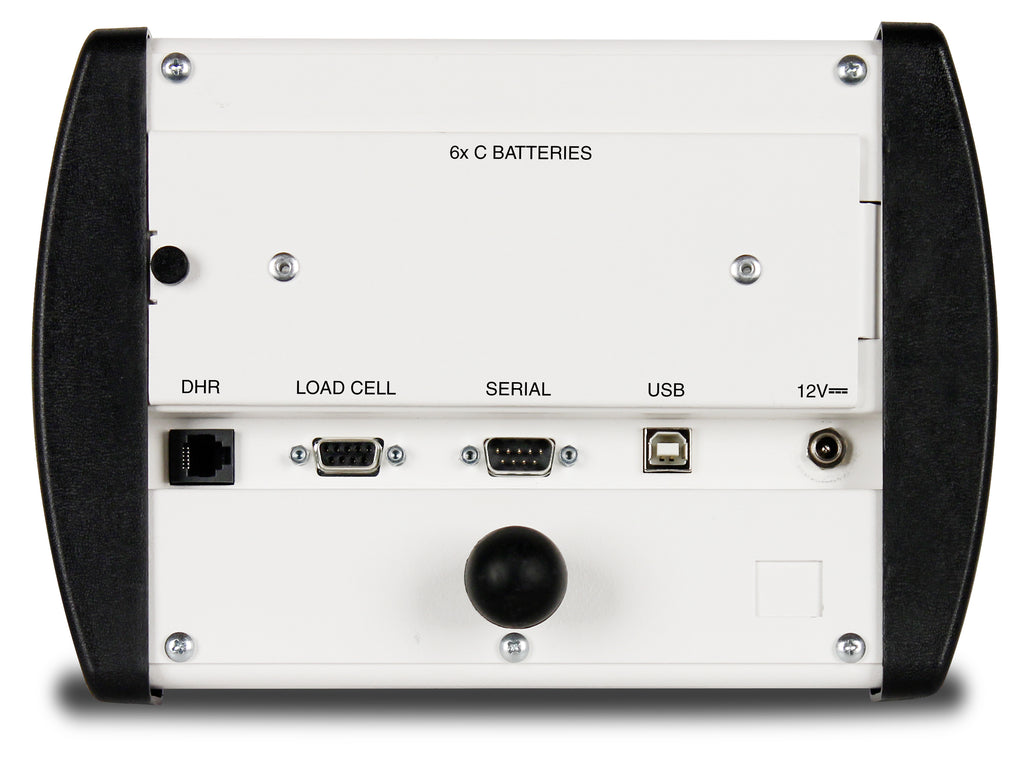

- RS232 serial and USB ports standard; MV1C adds Wi-Fi/Bluetooth (up to 150 ft)

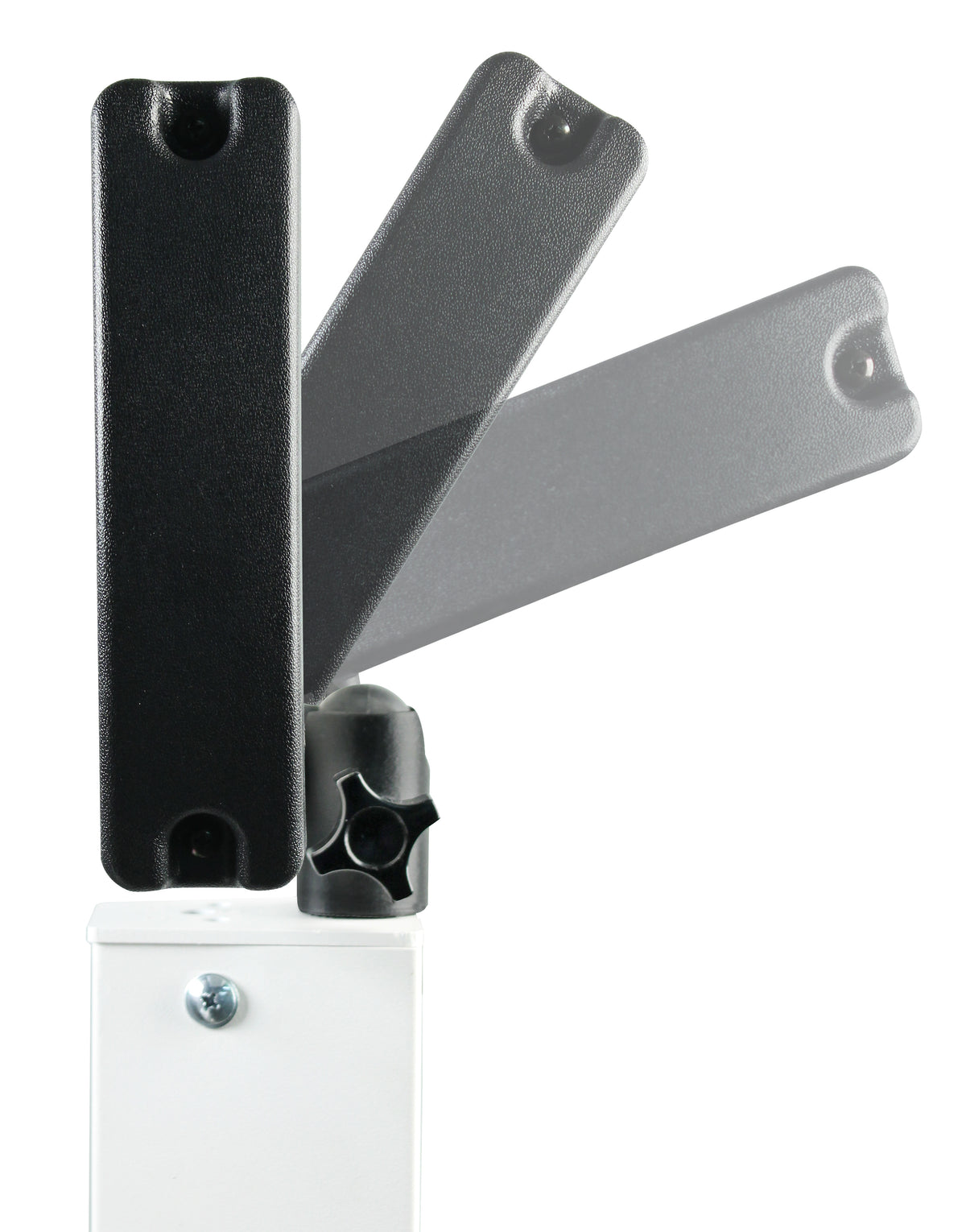

- 350-degree swivel mounting bracket and sturdy steel enclosure
- NTEP legal for trade (Certificate 13-011)
Specifications
| Part Numbers | MV1, MV1C (Wi-Fi/Bluetooth) |
|---|---|
| LCD Size | 3.5 W x 3 H in |
| Enclosure | 9.8 W x 6.8 H x 1.8 D in, painted steel |
| Keyboard | 19-key membrane |
| Resolution | 10,000 divisions |
| Load Cells | Up to four 350 ohm, 5 VDC excitation |
| Power | Six C batteries or optional MV1PWR 12 VDC adapter |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
Compatibility
Used on select Detecto clinical scales including the 6550 wheelchair scale, 6857DHR and 8550 stretcher scale. Also suitable as a replacement indicator on Detecto scales originally supplied with the MedVue.
