Detecto IB800 In-Bed Scale, Adjustable Base, 800 lb

Roll over image to zoom in Click on image to zoom

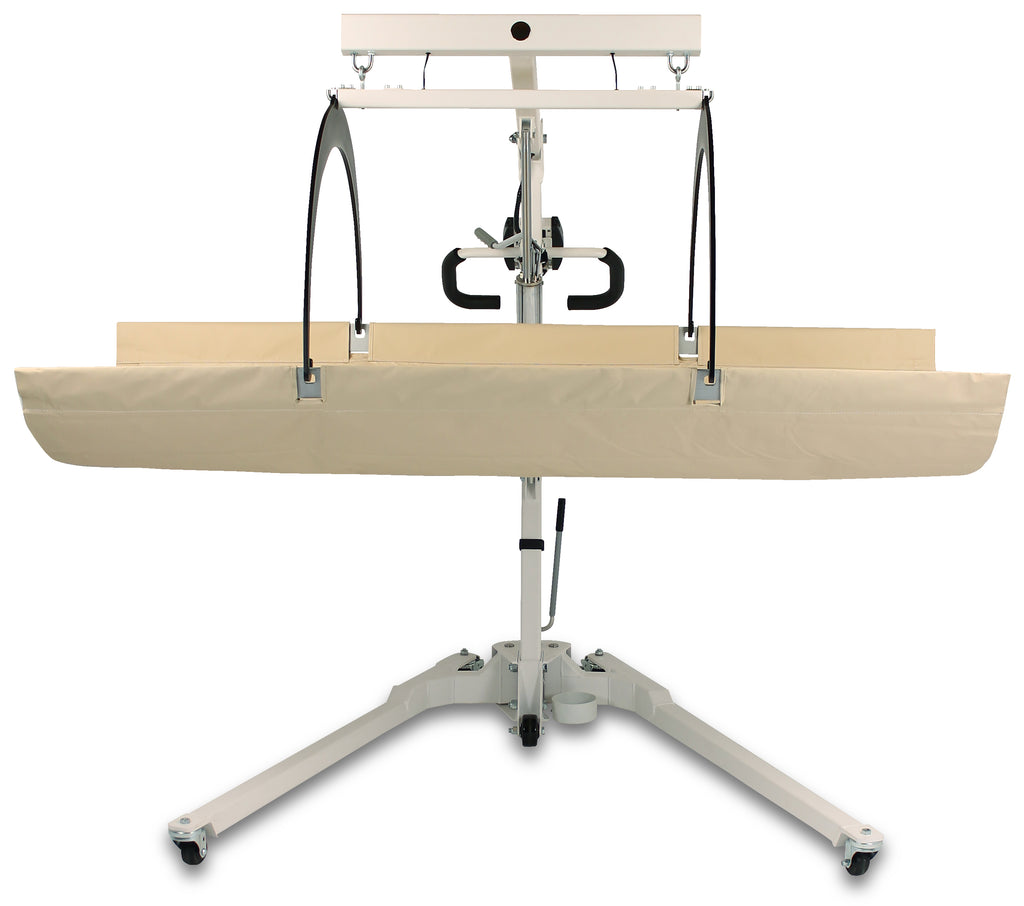

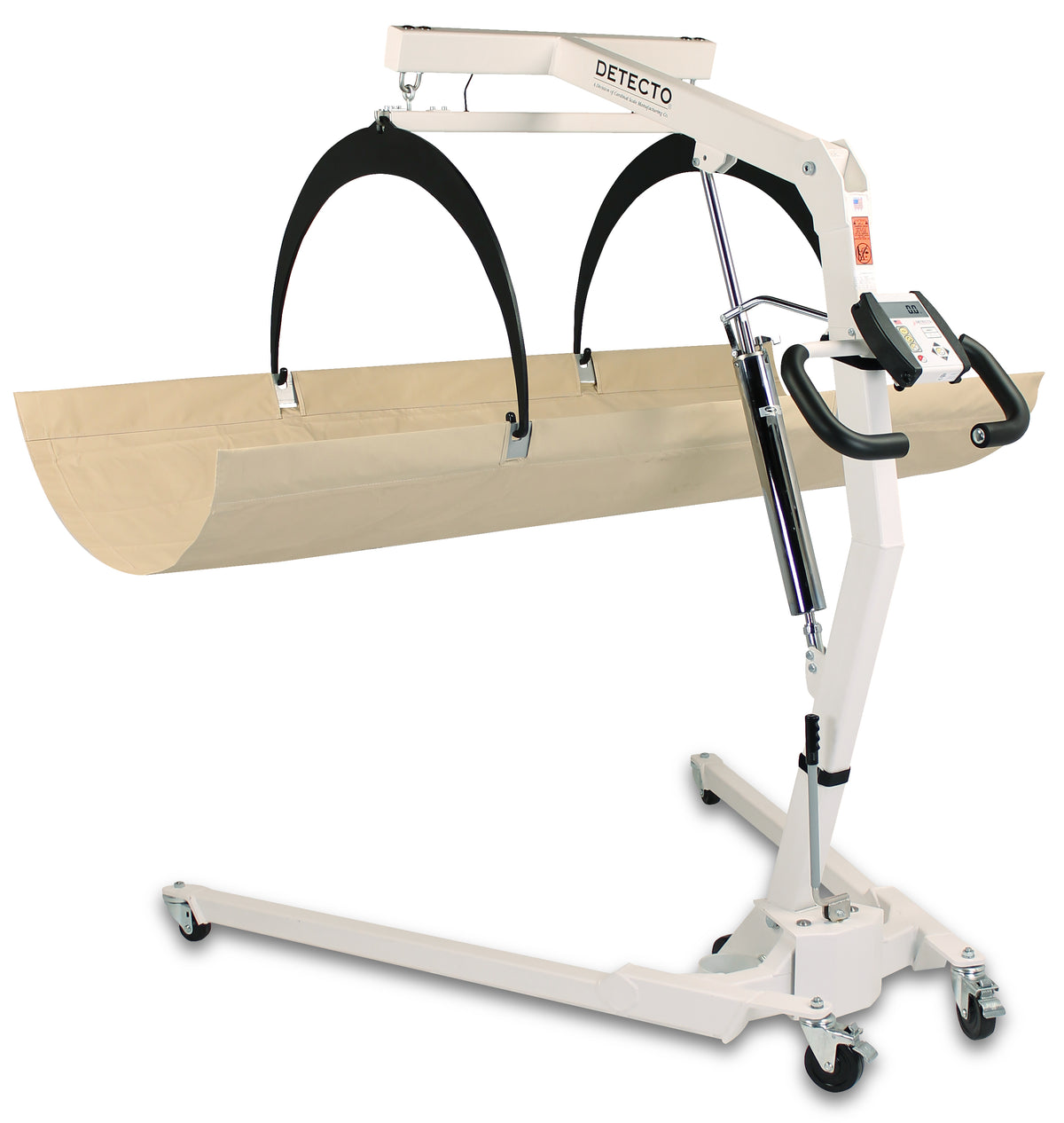

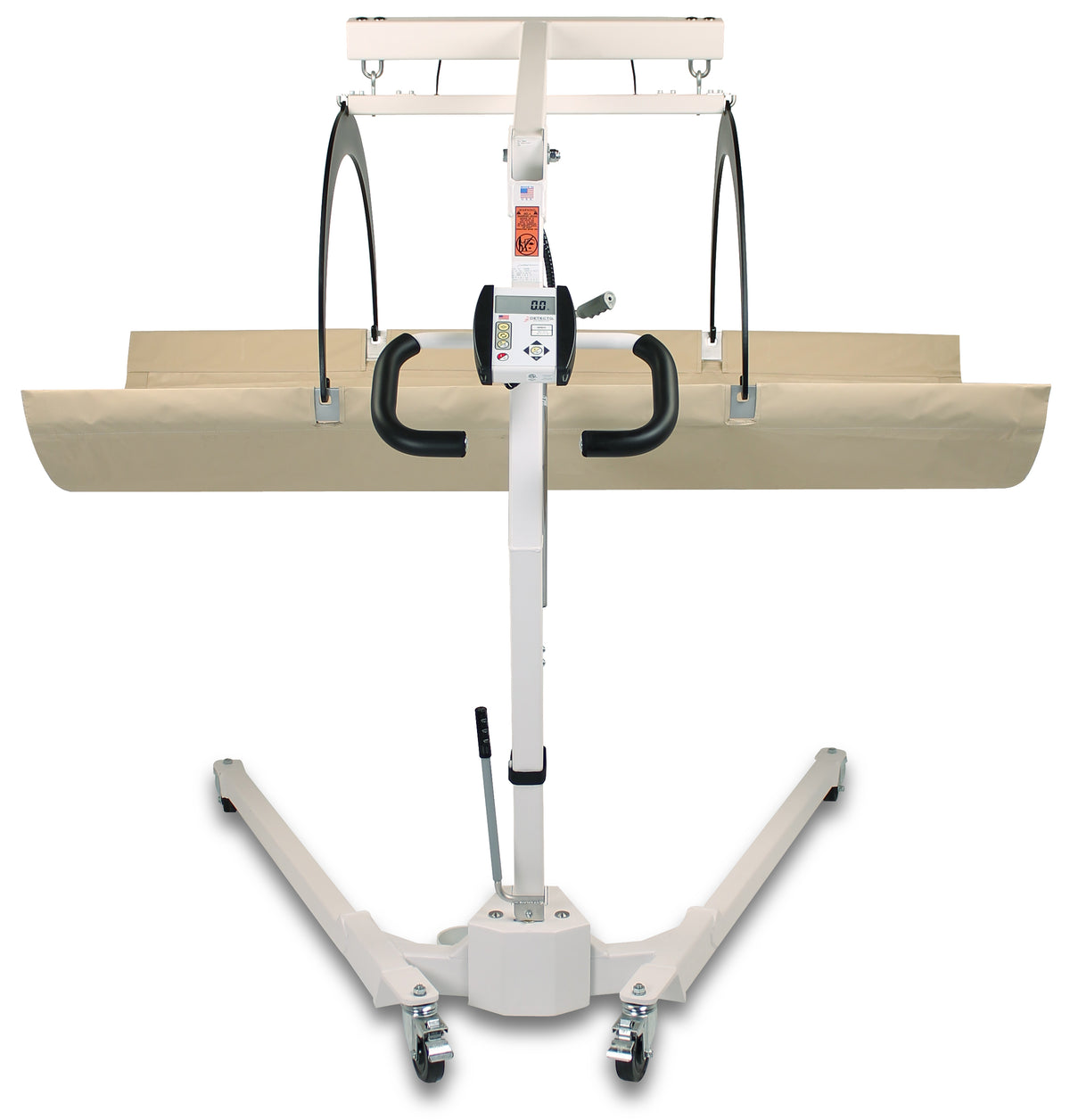

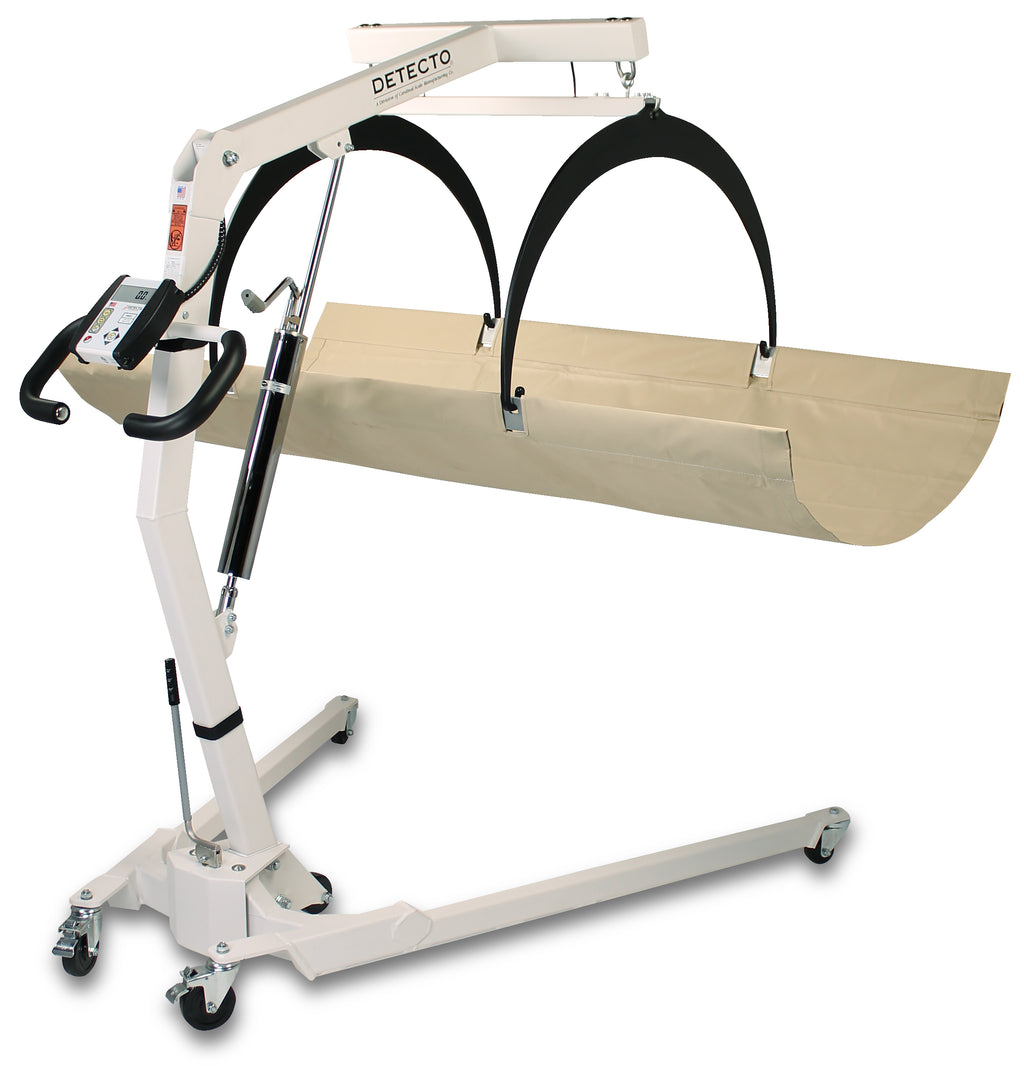

The Detecto IB800 in-bed scale lets nursing staff weigh bedridden patients without transferring them to a chair or stretcher scale. A flame-retardant, antibacterial 6 ft stretcher is placed under the patient and hydraulically lifted inches above the bed for weighing, making the IB800 a practical patient weighing solution for hospitals, ICUs and long-term care facilities.

The ZERO key subtracts the weight of bedding for accurate patient readings, and the scale is EMR/EHR ready via its RS232 serial port. It is designed for weighing only and is not intended for patient transport.

Key Features

800 lb x 0.2 lb / 350 kg x 0.1 kg capacity
Hydraulic lift mechanism raises the patient just above the bed
Flame-retardant, antibacterial 72 in Sure-Check 44XL fabric stretcher
Locking casters, adjustable weighing arm and sturdy steel construction

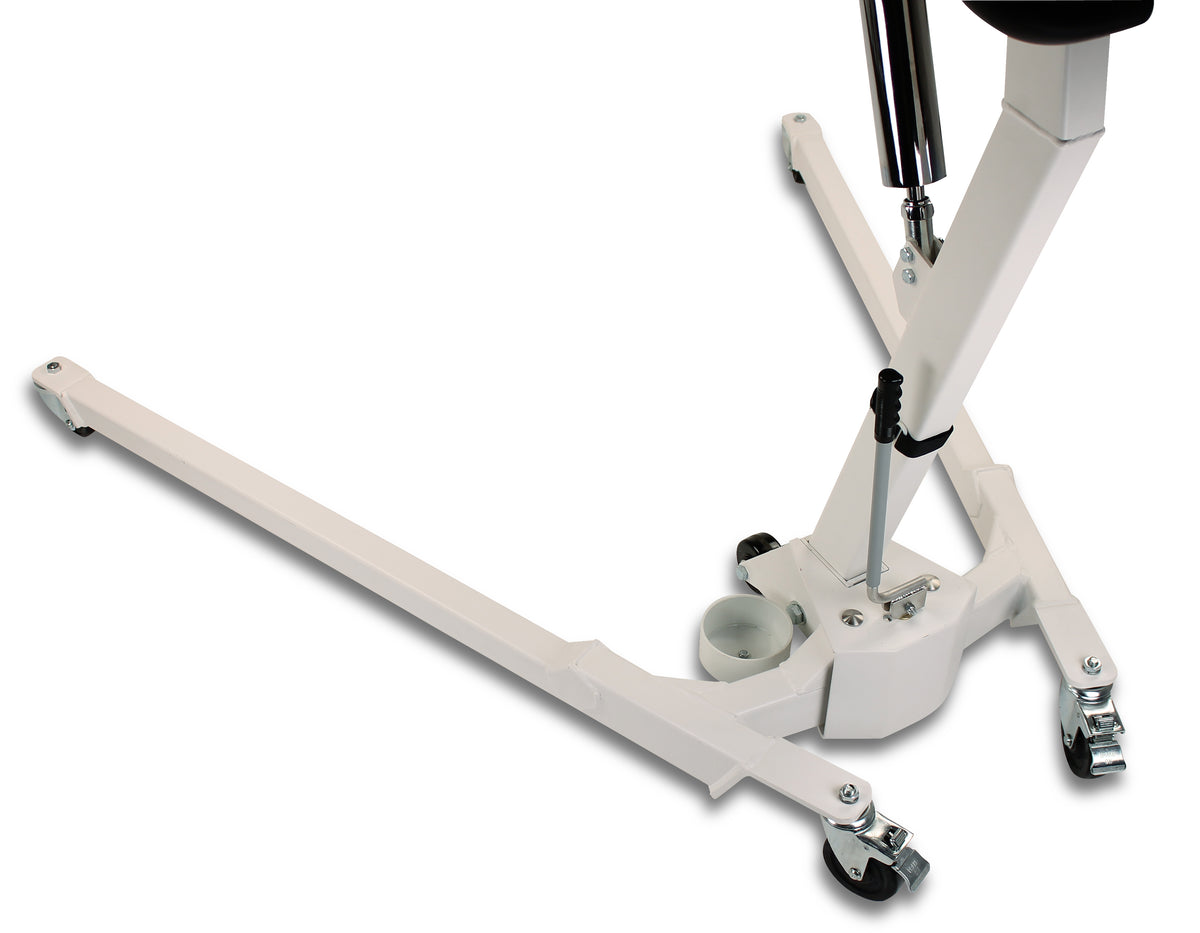

Adjustable base-widening stance for added stability; fits through 32 in / 81 cm doorways
ZERO key removes bedding weight; 0.7 in high LCD

Specifications

Capacity	800 lb x 0.2 lb / 350 kg x 0.1 kg
Base	Adjustable (base-widening stance)
Door Width Clearance	32 in / 81 cm
Under Bed Clearance	4.8 in / 12 cm
Stretcher	72 in / 180 cm Sure-Check 44XL fabric
Lift Mechanism	Hydraulic
Display	0.7 in / 19 mm high LCD, 6 digit, 7 segment
Keyboard	Membrane type, 5 keys and 4 navigational arrow keys
Power	6 AA batteries (not included) or optional AC adapter
Connectivity	RS232 serial port
Shipping Weight	400 lb / 181 kg

Options

Connectivity: Standard models connect via RS232 serial port. Bluetooth / Wi-Fi models (-C) add wireless connectivity for EMR/EHR systems.
Power: Battery Only models use 6 AA batteries (not included). AC Adapter Included models (-AC) ship with the AC adapter.
