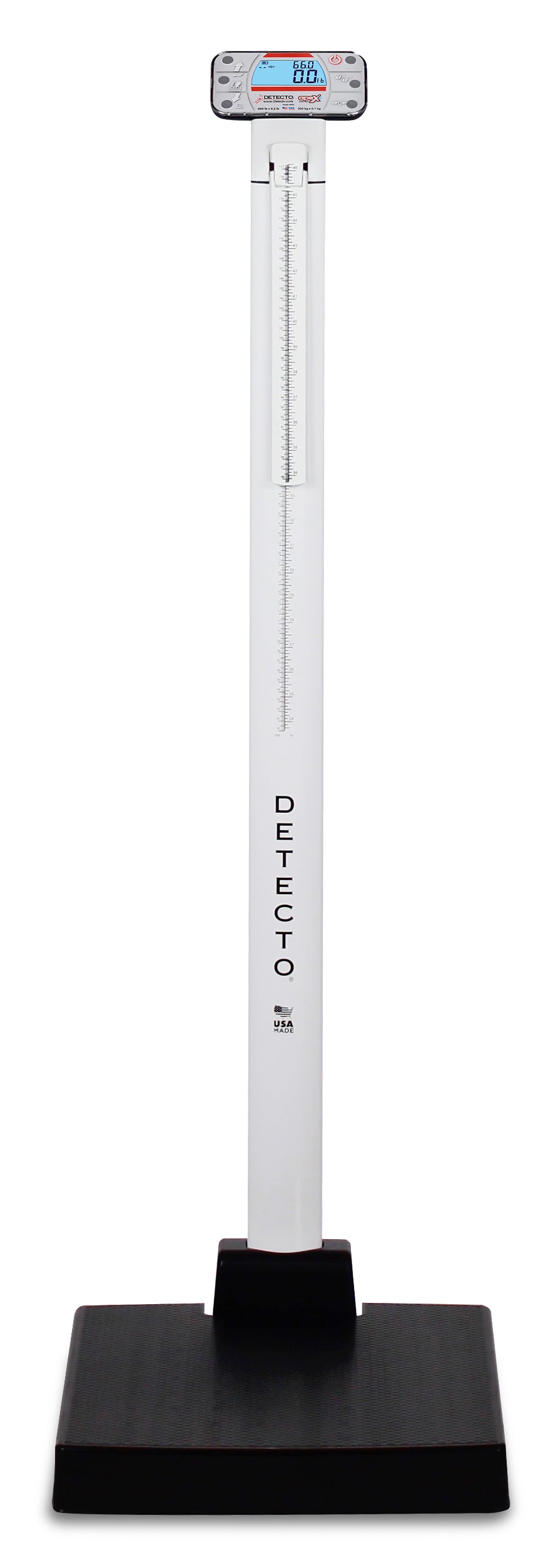

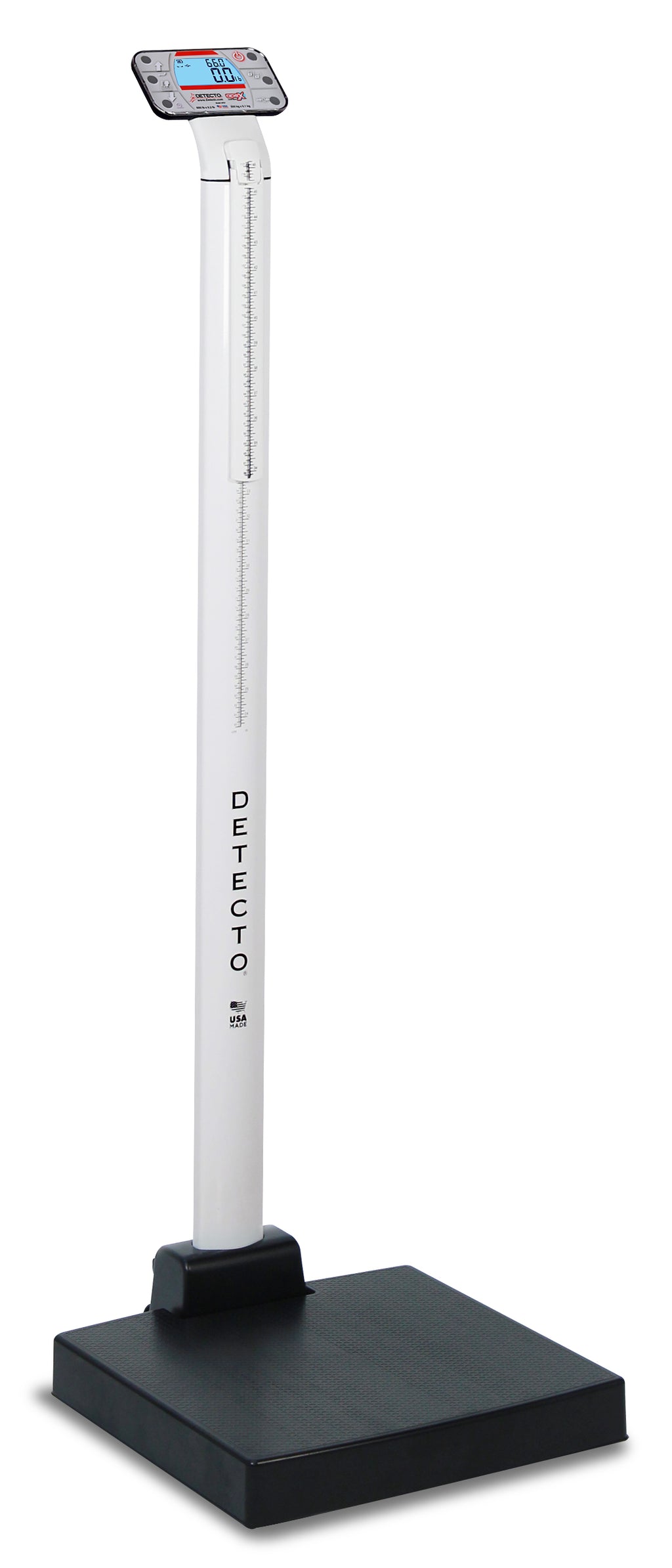

Detecto apex Digital Clinical Scale with Height Rod

Detecto apex Digital Clinical Scale with Height Rod - view 3

Detecto apex Digital Clinical Scale with Height Rod - view 4

Detecto apex Digital Clinical Scale with Height Rod - view 5

Roll over image to zoom in Click on image to zoom

The Detecto apex digital clinical scale is an eye-level physician scale with height rod that measures weight, height, and BMI on patients of all ages and sizes. NTEP certified for weighing accuracy in dosing patients, this apex digital clinical scale is built in the USA for hospitals, clinics, dialysis centers, and pediatric practices.

Key Features

600 lb x 0.1 lb / 270 kg x 0.05 kg capacity

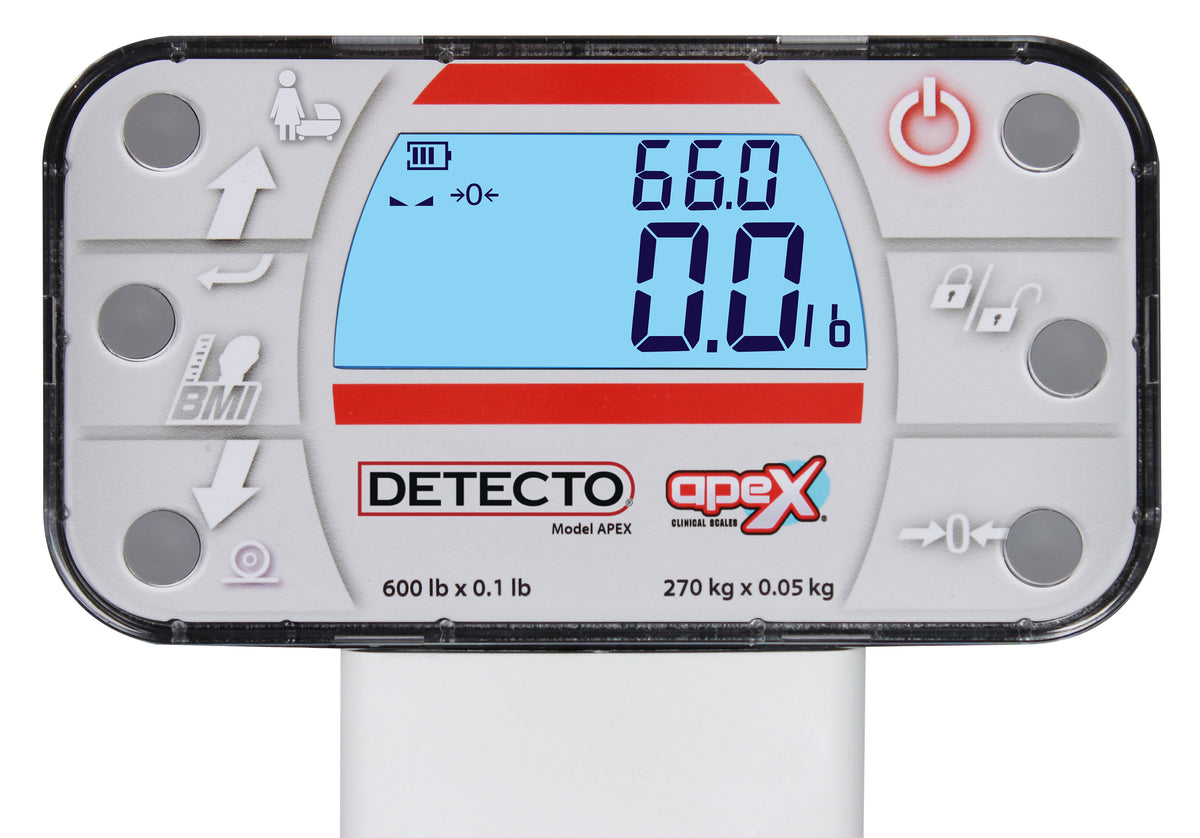

Clinical-blue LCD with 0.75 in weight digits; displays weight, height, and BMI
Mechanical inline or touchless sonar height rod
Mother/Baby function factors the weight of infants held by an adult
Units locking into pounds or kilograms
RS232 and micro USB-B ports; HL7 IEEE 11073 compliant
Dual integral wheels and low-profile platform

Specifications

Capacity	600 lb x 0.1 lb / 270 kg x 0.05 kg
Platform Size	17 in W x 17 in D x 2.75 in H / 43.2 x 43.2 x 7 cm
Display	Dual-row, clinical-blue LCD; 0.75 in weight digits

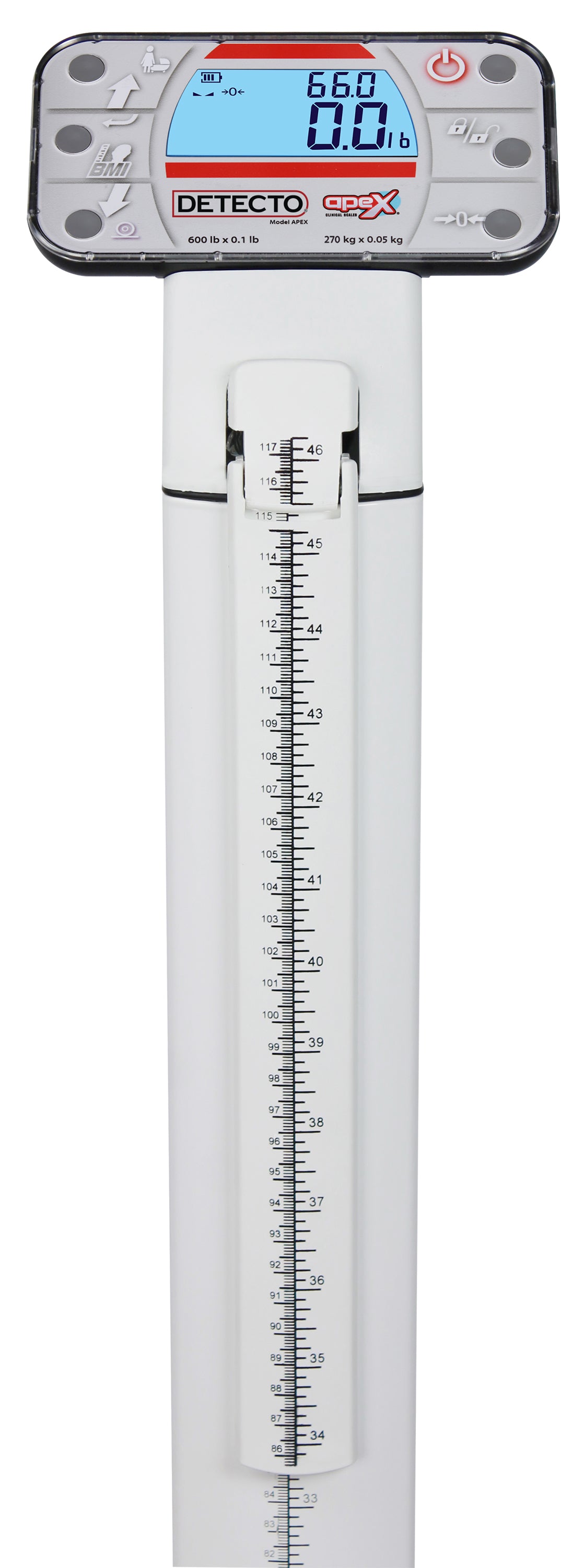

Mechanical Height Rod	24-86 in x 0.125 in / 60-218 cm x 0.1 cm
Sonar Height Rod	24-86 in x 0.2 in / 60-218 cm x 0.5 cm
Ports	1 RS232 serial, 1 micro USB-B
Connectivity	HL7 IEEE 11073 compliant (standard)
Power	12 AA batteries (not included) or AC adapter
Net Weight	31 lb / 14 kg (mechanical); 32 lb / 14 kg (sonar)
Certification	NTEP certified
Country of Origin	USA

Options

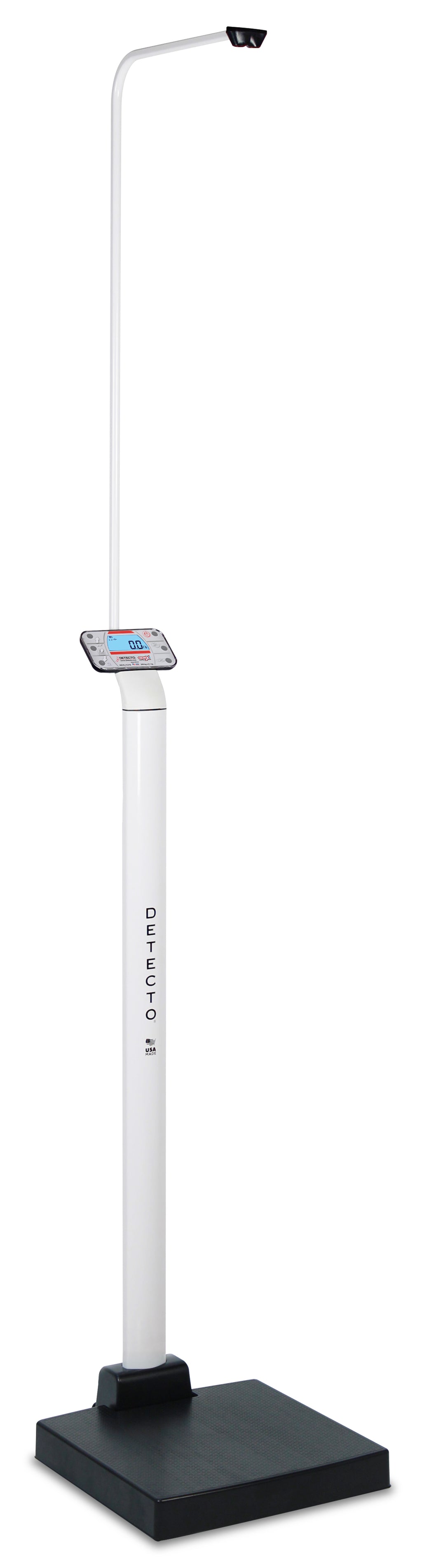

Height Rod: Mechanical inline rod, or a touchless sonar rod (-SH) that measures height without pushing a button.
Bluetooth / Wi-Fi (-C): wirelessly transmits weight to EMR/EHR systems and compatible devices.
Welch Allyn CVSM/CSM (-UWA) and Welch Allyn LXI (-LXI): connect the scale to Welch Allyn vital signs monitors for electronic medical records.
Power: Battery Only models run on 12 AA batteries; AC Adapter Included models (-AC) ship with the AC adapter.
