Description

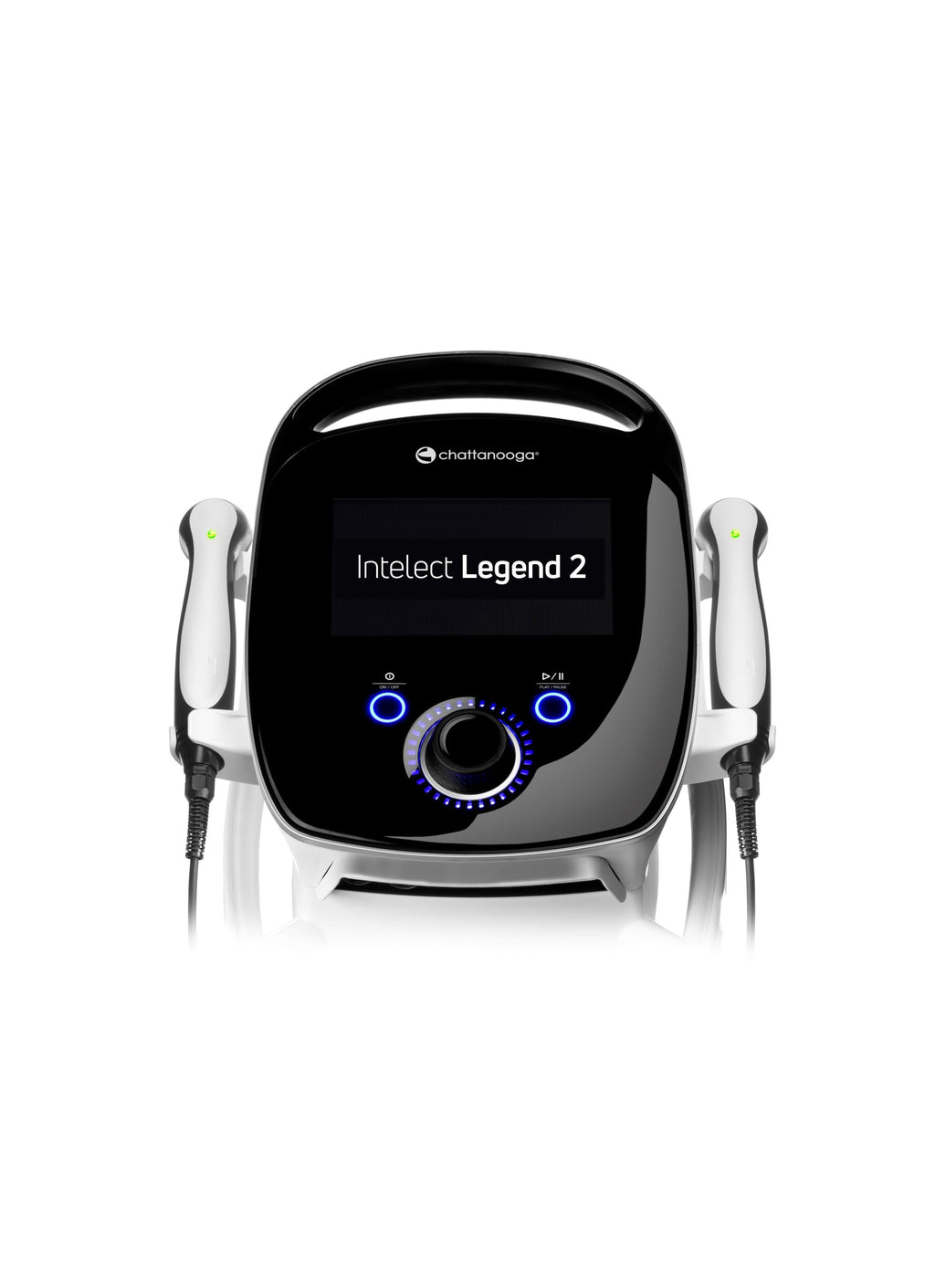

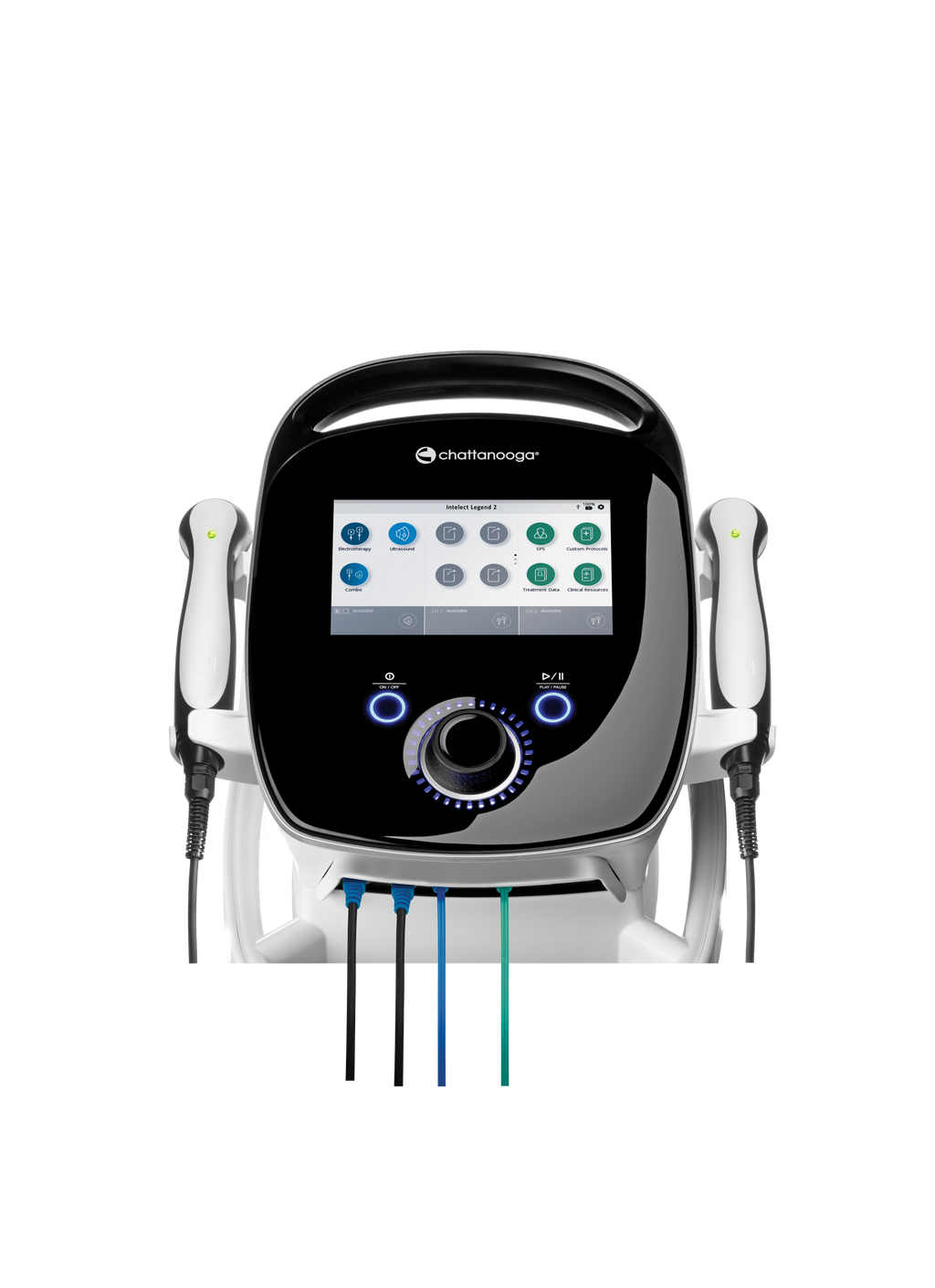

The Chattanooga Intelect Legend 2 is Enovis' next-generation clinical electrotherapy and ultrasound combination system, launched in 2024 as the successor to the Intelect Legend XT. It pairs a 7" high-resolution color touchscreen with 12 electrotherapy waveforms, including Chattanooga's proprietary VMS waveform for stronger muscle contractions with less fatigue, plus dual-frequency 1/3.3 MHz ultrasound. Available as a 2-channel (81-5010) or 4-channel (81-5011) combo.
Features
- 12 electrotherapy waveforms: VMS, VMS Burst, VMS FR, Interferential, Premodulated, Asymmetric Biphasic, Symmetric Biphasic, High Volt, Microcurrent, Russian, HAN, Direct Current
- Proprietary VMS waveform - stronger muscle contractions and less neural fatigue while staying comfortable
- Dual-frequency ultrasound at 1 or 3.3 MHz with 1, 2, 5 and 10 cm² applicators
- 7" high-resolution color capacitive touchscreen with app-like interface
- SPS (Suggested Protocol Settings) menu - indication-based setup in three button presses
- 2&Go presets - save up to 12 custom or preset protocols for two-touch start
- Optional battery for all-day portable use around the clinic
- Optional magnetic therapy cart (15-1136) with tool-free installation
Available Part Numbers
| Part # | Configuration |
|---|---|
| 81-5010 | 2-Channel Combo |
| 81-5011 | 4-Channel Combo |
Specifications
| Channels | 2 (81-5010) or 4 (81-5011) |
|---|---|
| Waveforms | 12 (VMS, VMS Burst, VMS FR, IFC, Premodulated, Asymmetric Biphasic, Symmetric Biphasic, High Volt, Microcurrent, Russian, HAN, Direct Current) |
| Ultrasound | 1 MHz or 3.3 MHz; duty cycles 10%, 20%, 50%, continuous |
| Applicator sizes | 1, 2, 5, 10 cm² (5 cm² included) |
| Display | 7" color capacitive touchscreen |
| Power | 100-240 VAC, 50/60 Hz, 1.0 A |
| Dimensions | 2ch: 14" L x 13.4" W x 5.9" H; 4ch: 14" L x 13.4" W x 7.5" H |
| Weight | 2ch: 6.8 lb (3.1 kg); 4ch: 8.2 lb (3.7 kg), shipping 13 lb |
| Safety classification | Class 1; Electrotherapy Type B, Ultrasound Type B |
| Warranty | 2 years unit; 1 year ultrasound applicator |
What's Included
- Intelect Legend 2 combo unit (2- or 4-channel)
- Stimulation leadwires (Ch 1/2, plus Ch 3/4 on 4-channel)
- DURA-STICK Plus electrodes and carbon electrodes
- 5 cm² ultrasound applicator
- Power cord
- USB drive with resources
Compatibility & Related Parts
Successor to the Intelect Legend XT. Uses Legend 2-specific applicators and cart (not compatible with Legend XT accessories).
Genuine Chattanooga product, sold by The Hospital Equipment Company.
