Description
OEM Part Number Cross References:
| Manufacturer | OEM Part # |
|---|---|
| AMC | LW-3500040/5A (40 inch), LW-3500024/5A (24 inch) |
| Sage | L03-05-29P |
| Spacelabs | 700-0006-10, 700-0006-08 |
Compatibility:
| Manufacturer | Model |
|---|---|
| Spacelabs |
90309, 90367, 90367 Ultraview, 90369, 90369 Ultraview, 90492, 90496, 90496 Ultraview, 91220, 91220 mCare 300, 91369, 91387, 91496, 93300, Elance Series, Tru-Link, Ultraview, Ultraview SL
|
Technical Specifications:
| Category | ECG |
|---|---|
| Certifications | FDA, CE, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant |

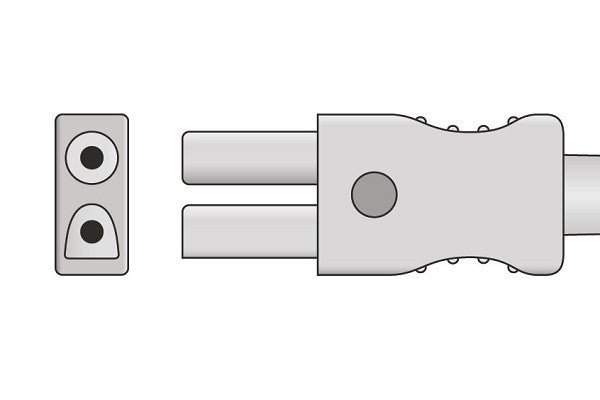

| Connector Distal | Twin Pin |
| Connector Proximal | Pinch/Grabber |
| Latex-free | Yes |
| Lead Cable Color | Gray |
| Lead Cable Diameter | 2.6 mm |
| Lead Cable Length Limb | 3 ft |
| Lead Cable Length V | 3 ft |
| Lead Cable Material | TPU Jacket |
| Lead Color Coding | AHA |
| Lead Number | 5 |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| Patient Size | Adult/Pediatric |
| Resistance | No |
| Sterile | No |
| Total Cable Length | 3 ft |
| Warranty | 6 months |
| Weight | 0.3lb |
