Description
OEM Part Number Cross References:
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-A400-1006VM |
| Beta Biomed | B400-0601 |
| Pacific Medical | NXPH900 |
| Philips | M1941A, M1941B, 989803105681, M11941A |
| Sage | E01-P22M |
Compatibility:
| Manufacturer | Model |
|---|---|
| Philips |
FM20, FM30, IntelliVue MX40, M2601A, M3000A, M3001A, M3001A A01, M3001A A01C06, M3001A A01C12, M3001A A01C18, M3500 B, M4735A, MRx, SureSigns VM1, SureSigns VM6, SureSigns VM8, SureSigns VS2, SureSigns VS3, VM4, VM6, VM8
|
Technical Specifications:
| Cable Color | Blue |
|---|---|
| Cable Diameter | 4 mm |
| Cable Material | TPU Jacket |
| Category | SpO2 |
| Certifications | FDA, CE, ISO 80601-2-61:2011, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant |

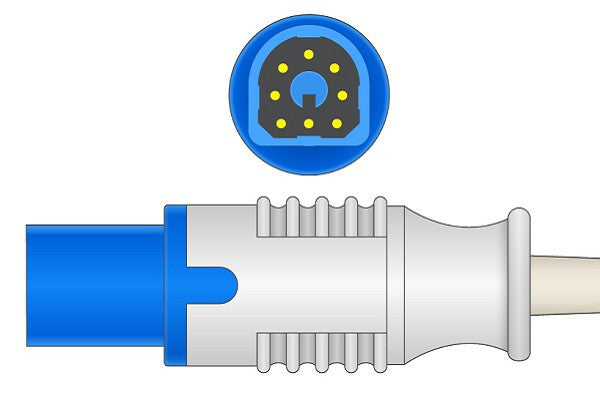

| Connector Distal | Philips 8-pin D-Shaped Male Connector |

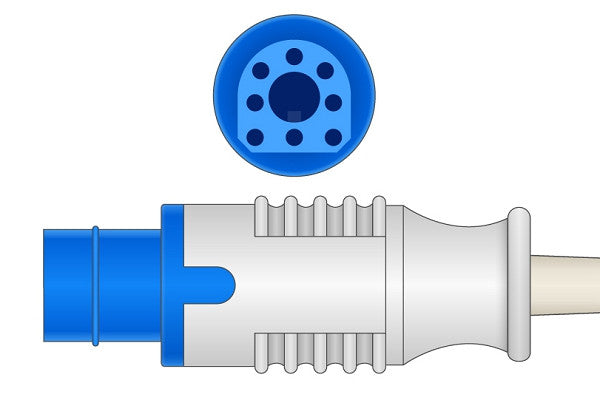

| Connector Proximal | Philips Female 8-pin D-Shaped Connector |
| Latex-free | Yes |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| SpO2 Technology | Nellcor OxiSmart |
| Sterile | No |
| Total Cable Length | 7 ft |
| Warranty | 12 months |
| Weight | 0.3lb |
