Description
OEM Part Number Cross References:
| Manufacturer | OEM Part # |
|---|---|
| AMC | PR-A520-1005N |
| Beta Biomed | B505-1005N |
| Datex Ohmeda | OXY-F-DB, SAS-F |
| Envitec | F-3412-9 |
| Pacific Medical | NFDX100 |
| Sage | P05-09M |
| Tenacore | TCPF-0414-0112, TP2421 |
Compatibility:
| Manufacturer | Model |
|---|---|
| Datex Ohmeda |
AS/3, CG/2S, CH-RS, CH/2S, CH/S, CS/3, Capnomac Ultima, Cardiocap I, Cardiocap II, Cardiocap/5, Light Monitor, M-Estpr, OSP-200, Oscar II, SAF-F, Satellite, Satellite Plus II, Satellite Trans, System 5, Trans Plus, ULTS00, ULTSIO, ULTSVI, ULTSVO
|
Technical Specifications:
| Cable Color | Gray |
|---|---|
| Cable Diameter | 4 mm |
| Cable Material | TPU Jacket |
| Category | SpO2 |
| Certifications | FDA, CE, ISO 80601-2-61:2011, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant |

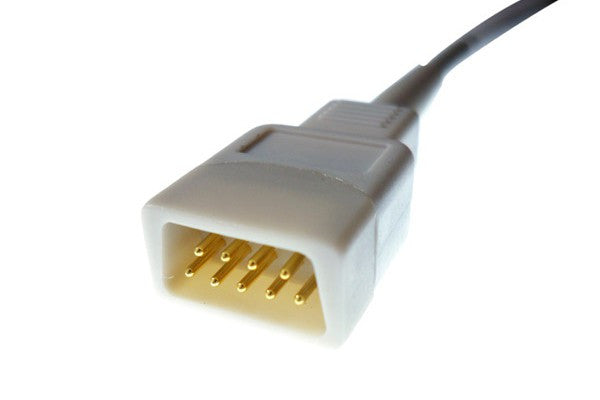

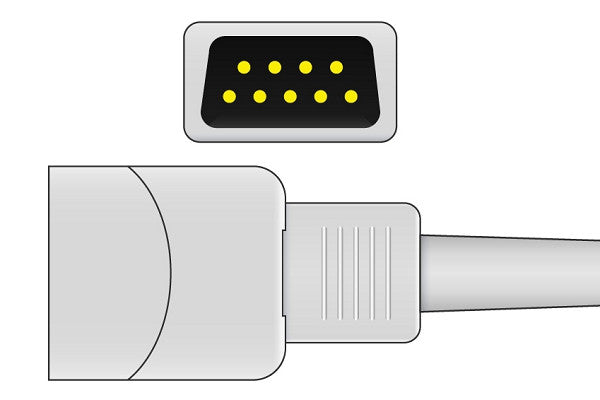

| Connector Distal | Male 9-Pin D-Sub Connector |
| Connector Proximal | Adult Clip |
| Latex-free | Yes |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| Patient Size | Adult (>40Kg) |
| SpO2 Technology | Datex |
| Sterile | No |
| Total Cable Length | 3.5 ft |
| Warranty | 12 months |
| Weight | 0.2lb |
